C6342A-67NJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> C6342A-67NJ

C6342A-67NJ: DescriptionGeneral Purpose Inductor, 0.067uH, 5%, Air-Core, 2523,; CategoryPassive components inductor; File Size463KB，2 Pages; ManufacturerSAGAMI ELEC Co., Ltd.

Download Datasheet Parametric Compare View All

C6342A-67NJ Overview

General Purpose Inductor, 0.067uH, 5%, Air-Core, 2523,

C6342A-67NJ Parametric

Parameter Name	Attribute value
package instruction	2523
Reach Compliance Code	unknown
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

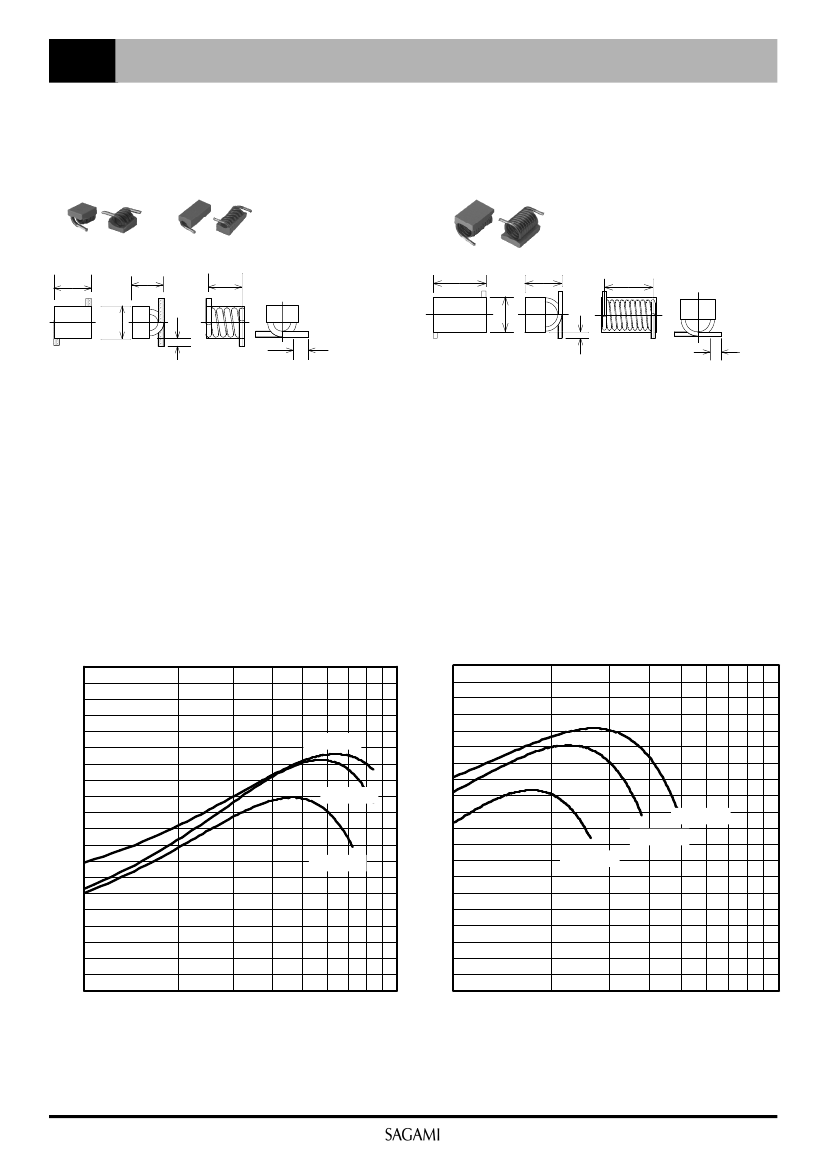

Air Core Inductors for Surface Mounting

■

C6342A

Frequency Range:10

300MHz

Inductance Range:50nH

135nH

Temperature Coefficient:+50±100ppm/℃

■

C3328A , C6328A

Frequency Range:10

1000MHz

Inductance Range:8.0nH½43nH

Temperature Coefficient:+50±100ppm/℃

C3328A：A=3.3,B=2.9

2.8

C6328A：A=6.3,B=5.8

6.3

4.2

5.8

0.8

Solder

plating

1.3 min.

2.8

Solder

Plating

4.2

1.3 min.

●

Winding direction : Clockwise.

●

Tolerance for dimension must be as

±0.25mm

unless

otherwise specified.

●

　巻線方向：時計回り

●

　指定の無い公差は±0.25mmです。

Features

●

SMD type air core inductor

●

Tape/Reel packaging available for auto-insertion

●

High Q coils

特　長

　●

空芯コイルの面実装タイプ

　●

自動装着用にテーピング品を用意

　●

の高いコイル

Typical Q vs Frequency

250

Typical Q vs Frequency

250

200

C3328A-18N

200

Typical Q

C6328A-22N

150

C6328A-35N

150

C6342A-R13

C6342A-50N

C6342A-88N

100

Frequency (MHz)

1000

100

Frequency (MHz)

1000

Notes:Graphs are based on typical values of each type, not specific values.

記事:特性グラフは各タイプの代表値を基に½成しています。規格値ではありません。

C6342A-67NJ Related Products

	C6342A-67NJ	C6342A-R11G	C6342A-R13G	C6342A-R13J	C6342A-67NG	C6342A-67NG-RA	C6342A50NG	C6342A-50NG-RA
Description	General Purpose Inductor, 0.067uH, 5%, Air-Core, 2523,	General Purpose Inductor, 0.11uH, 2%, Air-Core, 2523,	General Purpose Inductor, 0.135uH, 2%, Air-Core, 2523,	General Purpose Inductor, 0.135uH, 5%, Air-Core, 2523,	General Purpose Inductor, 0.067uH, 2%, Air-Core, 2523,	General Purpose Inductor, 0.067uH, 2%, 1 Element, Air-Core, SMD, CHIP, 2523	General Purpose Inductor, 0.05uH, 2%, Air-Core, 2523,	General Purpose Inductor, 0.05uH, 2%, 1 Element, Air-Core, SMD, CHIP, 2523
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Base Number Matches	1	1	1	1	1	1	1	1
package instruction	2523	2523	2523	2523	2523	-	2523	-
