CMPZ4105LEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMPZ4105LEADFREE

CMPZ4105LEADFREE: DescriptionZener Diode, 11V V(Z), 5%, 0.35W, Silicon, Unidirectional, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size391KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CMPZ4105LEADFREE Overview

Zener Diode, 11V V(Z), 5%, 0.35W, Silicon, Unidirectional, SOT-23, 3 PIN

CMPZ4105LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Nominal reference voltage	11 V
surface mount	YES
technology	ZENER
Terminal surface	MATTE TIN (315)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	5%
Working test current	0.25 mA
Base Number Matches	1

Preview

Download Datasheet

View All

CMPZ4099

THRU

CMPZ4124

SURFACE MOUNT

LOW NOISE SILICON ZENER DIODE

6.8 VOLTS THRU 43 VOLTS

350mW, 5% TOLERANCE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPZ4099 Series

types are high quality silicon zener diodes designed for

low leakage, low current and low noise applications.

NOTE:

For lower voltage devices,

see CMPZ4614 Series.

MARKING CODE: CONSULT FACTORY

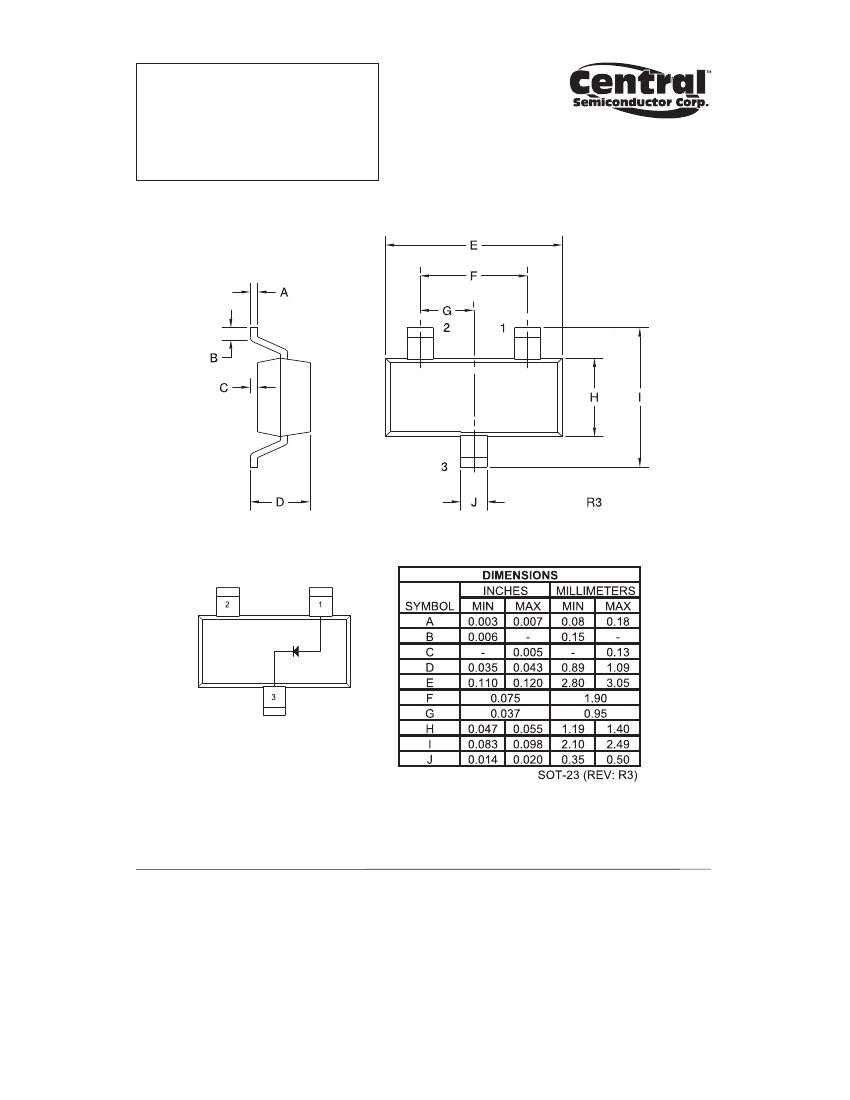

SOT-23 CASE

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

Power Dissipation

Operating and Storage Junction Temperature

SYMBOL

TJ, Tstg

350

-65 to +150

UNITS

°C

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted) VF=1.0V MAX @ IF=200mA (for all types)

ZENER

VOLTAGE

TYPE

MIN

6.460

7.125

7.790

8.265

8.645

9.500

10.45

11.40

12.35

13.30

14.25

15.20

16.15

17.10

18.05

19.00

20.90

22.80

23.75

25.65

26.60

28.50

31.35

34.20

37.05

40.85

VZ @ IZT

NOM

6.8

7.5

8.2

8.7

9.1

MAX

7.140

7.865

8.610

9.135

9.555

10.50

11.55

12.60

13.65

14.70

15.75

16.80

17.85

18.90

19.95

21.00

23.10

25.20

26.25

28.35

29.40

31.50

34.65

37.80

40.95

45.15

TEST

CURRENT

IZT

μA

250

MAXIMUM

ZENER

IMPEDANCE

ZZT @ IZT

200

100

150

200

250

MAXIMUM REVERSE

LEAKAGE

CURRENT

μA

1.0

0.05

0.01

5.2

5.7

6.3

6.7

7.0

7.6

8.5

9.2

9.9

10.7

11.4

12.2

13.0

13.7

14.5

15.2

16.8

18.3

19.0

20.5

21.3

22.8

25.1

27.4

29.7

32.7

MAXIMUM

ZENER

CURRENT

IZM

35.0

31.8

29.0

27.4

26.2

24.8

21.6

20.4

19.0

17.5

16.3

15.4

14.5

13.2

12.5

11.9

10.8

9.9

9.5

8.8

8.5

7.9

7.2

6.6

6.1

5.5

MAXIMUM

NOISE

DENSITY

ND @ IZT

μV/√Hz

CMPZ4099

CMPZ4100

CMPZ4101

CMPZ4102

CMPZ4103

CMPZ4104

CMPZ4105

CMPZ4106

CMPZ4107

CMPZ4108

CMPZ4109

CMPZ4110

CMPZ4111

CMPZ4112

CMPZ4113

CMPZ4114

CMPZ4115

CMPZ4116

CMPZ4117

CMPZ4118

CMPZ4119

CMPZ4120

CMPZ4121

CMPZ4122

CMPZ4123

CMPZ4124

R6 (3-February 2010)
