CPR-250-1A-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CPR-250-1A-E

CPR-250-1A-E: DescriptionFixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP; CategoryPassive components The resistor; File Size42KB，1 Pages; ManufacturerComponent General Inc

Download Datasheet Parametric Compare View All

CPR-250-1A-E Overview

Fixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP

CPR-250-1A-E Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Installation features	SURFACE MOUNT
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
Rated temperature	150 °C
Resistor type	FIXED RESISTOR
surface mount	YES
technology	METAL GLAZE/THICK FILM
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

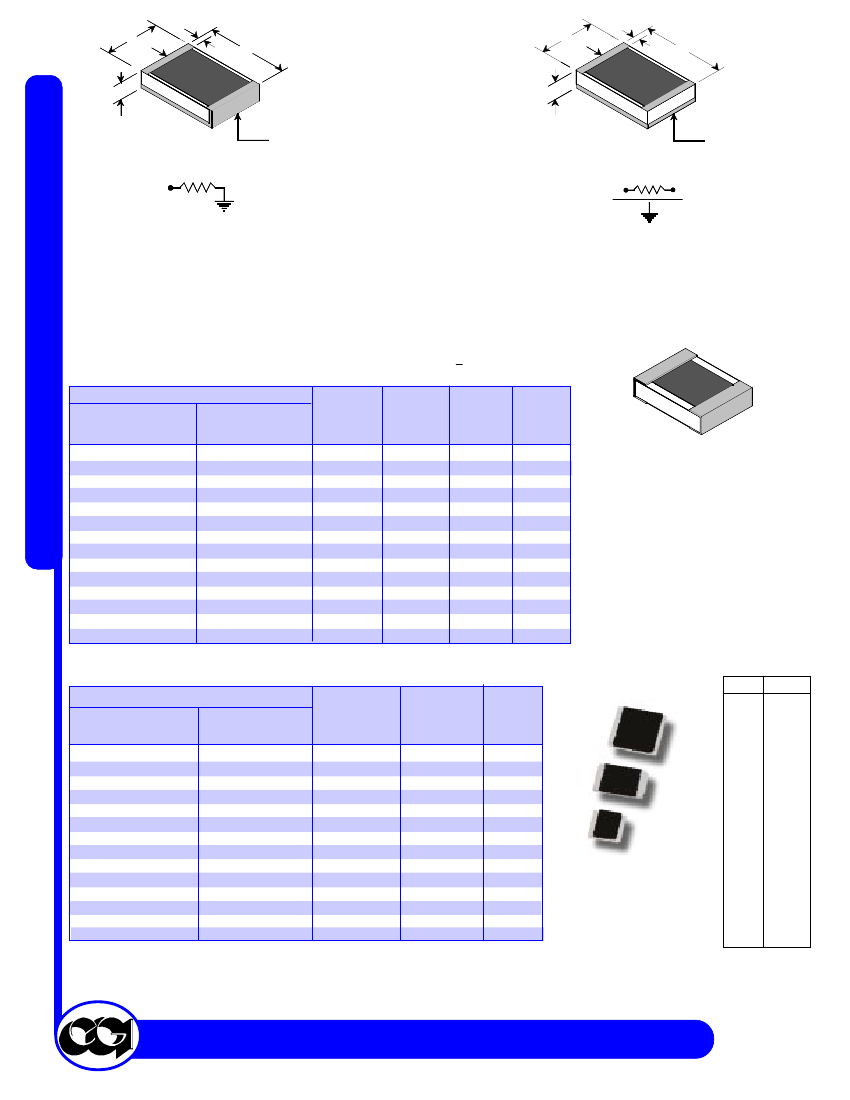

Power Chip Terminations & Resistors

GROUND

FIG. 1.

FIG. 2.

MECHANICAL SPECIFICATIONS

Substrate

Resistive Element

Terminals

Tolerance

Beryllium Oxide Ceramic.

Proprietary Thick Film.

Platinum Silver.

± .005" Except where noted (**), then + .010.

CGI P/N

TERMINATION

RESISTOR

FIG.1.

CPT-100-2

CPT-100-2B

CPT-230-1

CPT-250-1A

CPT-250-1B

CPT-250-2A

CPT-250-2B

CPT-250-2C

CPT-375-1

CPT-375-1B

CPT-500-1

CPT-625-1

CPT-625-2

CPT-1000-1

FIG.2.

CPR-100-2

CPR-100-2B

CPR-230-1

CPR-250-1A

CPR-250-1B

CPR-250-2A

CPR-250-2B

CPR-250-2C

CPR-375-1

CPR-375-1B

CPR-500-1

CPR-625-2

CPR-1000-1

.200

.350

.250

.375

.500

1.000

.100

.230

.250

.375

.500

.625

1.000

.040

.060

.040

.060

.040

.130

.060

.040

.060

.040

.125

.060

.040

.060

This configuration is

available on all sizes.

Add the suffix -E to the P/N.

(eg. CPR-100-2B-E)

ELECTRICAL PERFORMANCE SPECIFICATIONS

CGI P/N

TERMINATION

RESISTOR

FIG. 1.

CPT-100-2

CPT-100-2B

CPT-230-1

CPT-250-1A

CPT-250-1B

CPT-250-2A

CPT-250-2B

CPT-250-2C

CPT-375-1

CPT-375-1B

CPT-500-1

CPT-625-1

CPT-625-2

CPT-1000-1

FIG. 2.

CPR-100-2

CPR-100-2B

CPR-230-1

CPR-250-1A

CPR-250-1B

CPR-250-2A

CPR-250-2B

CPR-250-2C

CPR-375-1

CPR-375-1B

CPR-500-1

CPR-625-1

CPR-625-2

CPR-1000-1

POWER

150

170

330

100

160

350

250

500

700

185

1000

RES.

(OHMS)

1000

STD.

TOL.

.005

.010

.040

.060

.100

.125

.130

.200

.230

.250

.350

.375

.127

.254

1.016

1.524

2.540

3.175

3.300

5.080

5.842

6.350

8.890

9.525

.500 12.700

.625 15.875

1.000 25.400

Maximum power (watts) is based on 150°C maximum film temperature and derated linearly to zero at 200°C.

Power is based on infinite and ideal heat sink with the heat sink at 100ºC.

Component General,

Inc.

Component General,

Inc.

Phone (727) 376-6655 • Fax (727) 372-9096 • www.componentgeneral.com

CPR-250-1A-E Related Products

	CPR-250-1A-E	CPR-250-1B-E	CPR-250-2C-E	CPR-250-2B-E	CPR-250-2A-E	CPR-100-2B-E
Description	Fixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP	Fixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP	Fixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP	Fixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP	Fixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP	Fixed Resistor, Metal Glaze/thick Film, Surface Mount, CHIP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Rated temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	YES	YES	YES	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Maker	-	-	Component General Inc	Component General Inc	Component General Inc	Component General Inc
