CHDII-100P4A datasheet, PDF - EEWORLD Datasheet

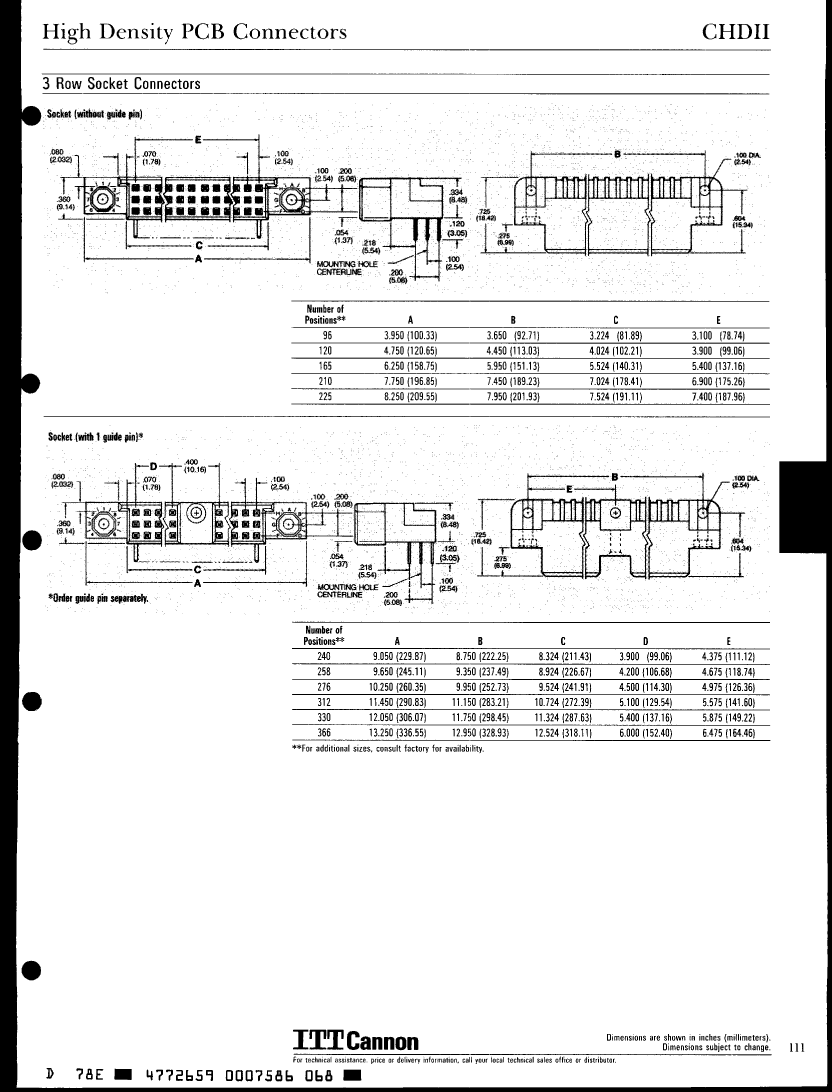

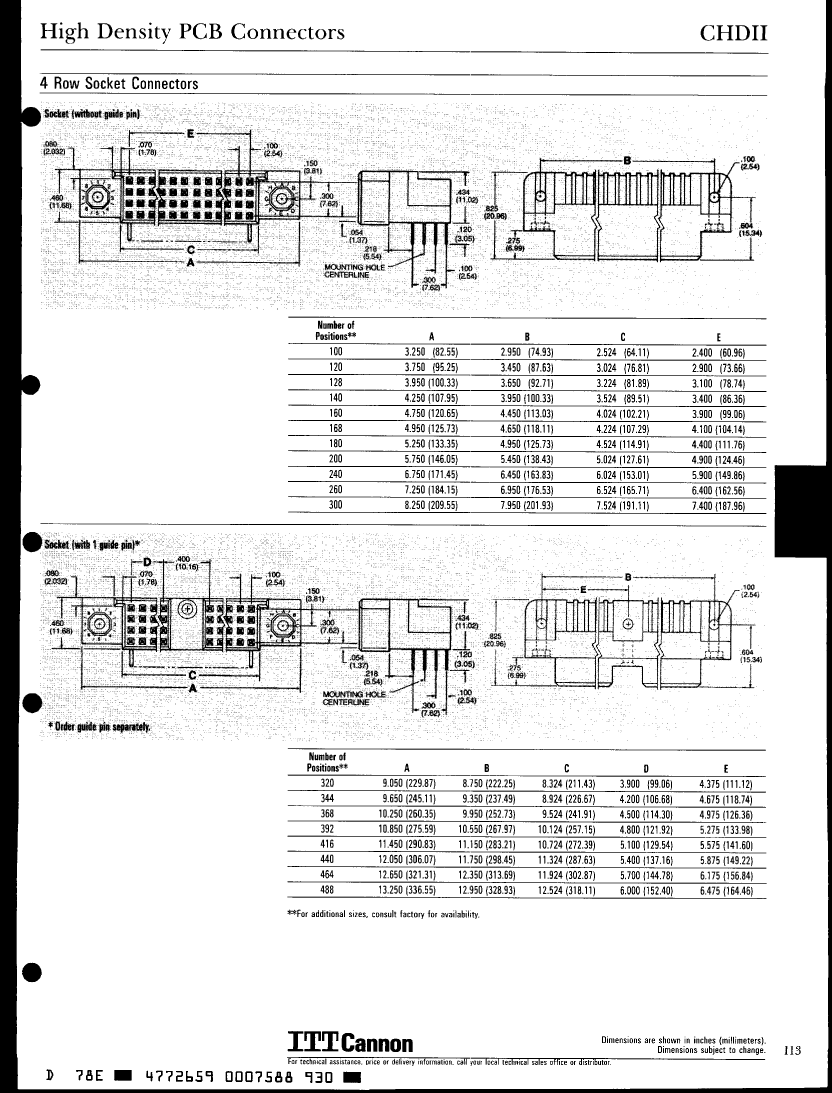

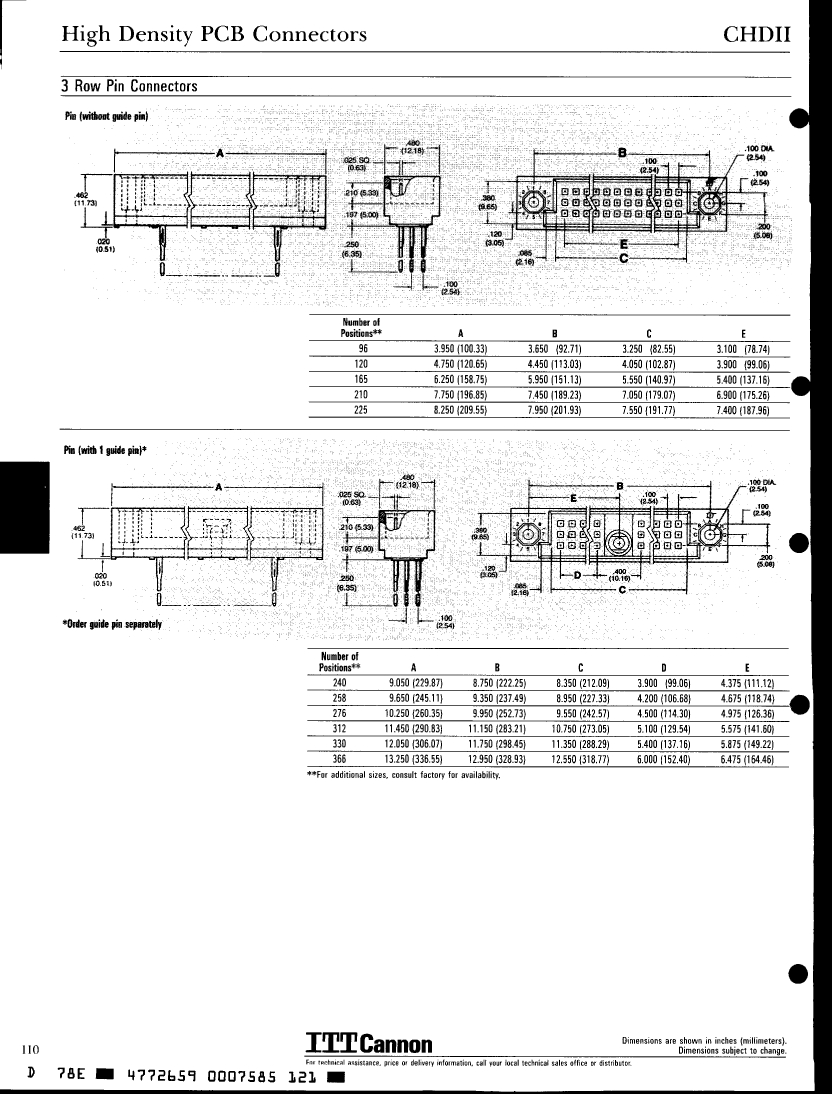

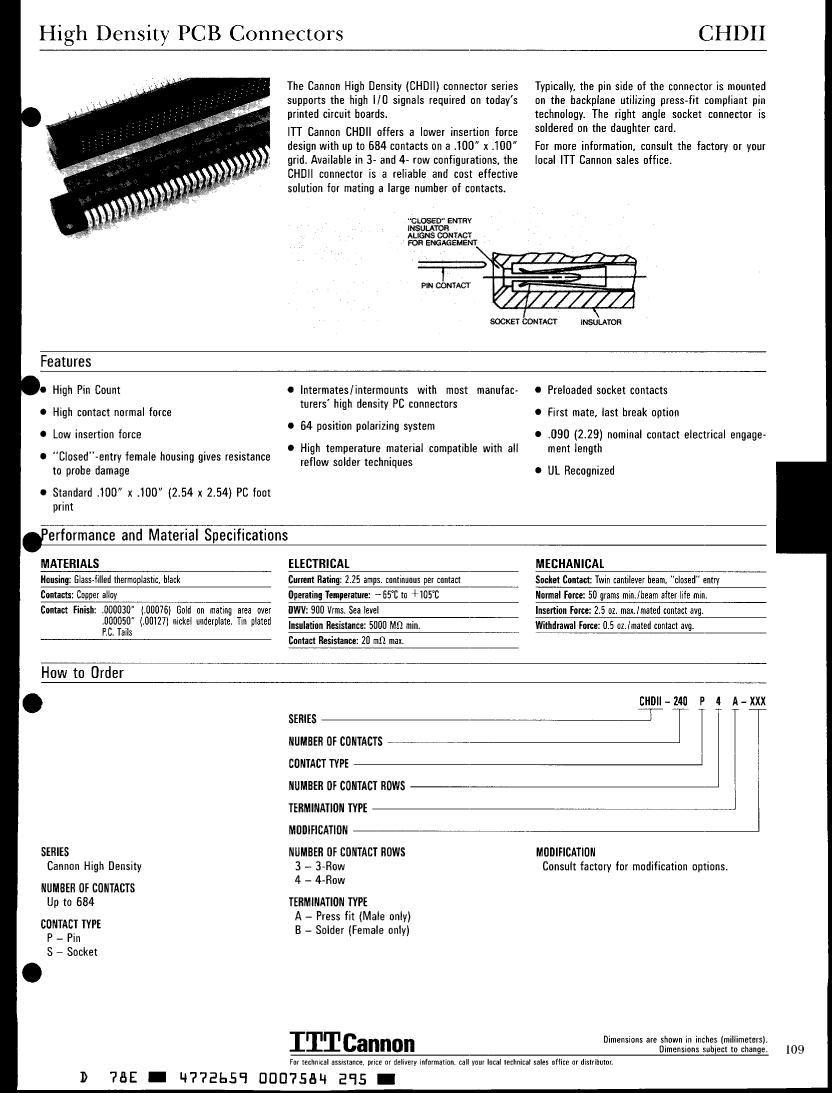

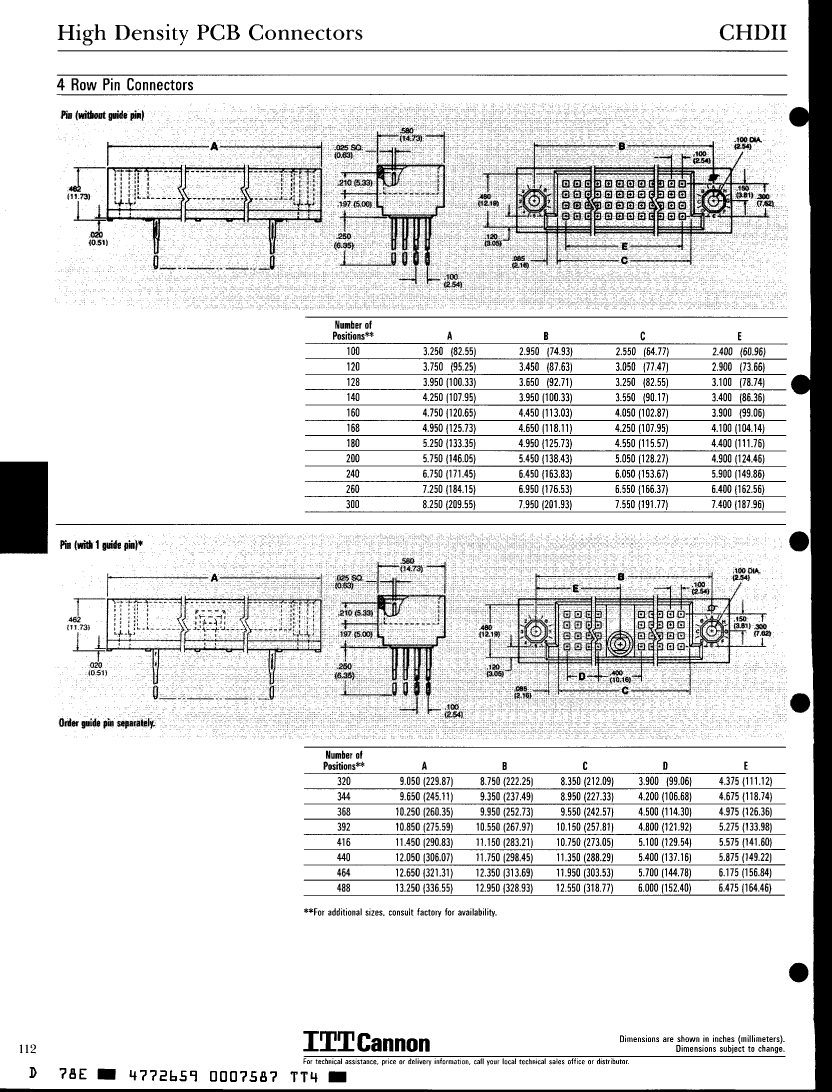

CHDII-100P4A: DescriptionBoard Connector, 100 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Receptacle; CategoryThe connector The connector; File Size705KB，6 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

CHDII-100P4A Overview

Board Connector, 100 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
Board mount options	HOLE .112-.124
body width	0.58 inch
subject depth	0.462 inch
body length	3.25 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	900VAC V
maximum insertion force	.695 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	CHDII
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	2.25 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.25 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
Evacuation force-minimum value	.139 N
Base Number Matches	1
