CFP4607-0101: DescriptionCard Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator,; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFP4607-0101 Overview

Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator,

CFP4607-0101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE, ZIF
Board mount options	SOLDER HOLDING POSTS
body width	0.047 inch
subject depth	0.157 inch
body length	0.354 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

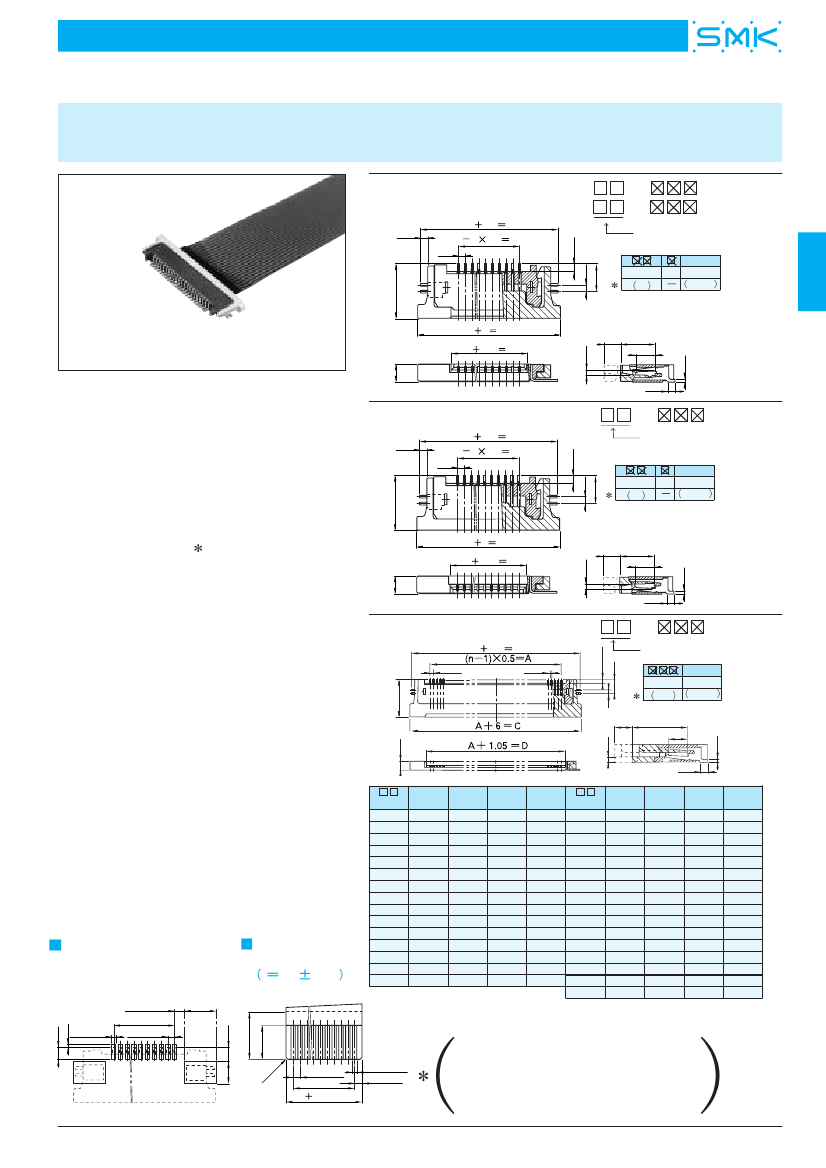

FPC Connector

FP-12

Series

0.5mm Spacing (SMT)

●

Upper Contact Type CFP45

CFP45

A 5.6

0.55

0.5

(n 1) 0.5

B

0.55

A

-01

-02

No. of Pins

(5~30P)

(32,34,36P)

Finish

0.5

2

4.0

50

01

F

Au

Sn-Pb

A 6

A 1.05

1.2

C

D

0.33

1.3

2.55

1.4

0.2

■

Features

1. Of a super low profile only 1.2mm high (5 to 36p)

or 1.3mm (42 and 50p) above the PWB surface

when mounted.

2. False FPC holding mechanism provided for ease

in operation.

3. Of the ZIF structure.

4. With a mold attached to the bottom (board

contact end).

5. Applicable FPC : 0.3±0.03mm thickness.

6. A lead-free product <

(

) excepted>.

0.5

●

Lower Contact Type

0.55

0.5

A 5.6 B

(n 1) 0.5 A

CFP46

0.55

-01

No. of Pins

(5~30P)

Finish

0.5

2

50

01

F

Au

Sn-Pb

4.0

A 6

A 1.05

1.2

C

0.33

D

1.3

2.55

1.4

0.2

■

Specifications

1. Rating : 0.3A, 50V AC/DC

2. Contact Resistance : 30mΩ, max.

3. Insulation Resistance : 100MΩ, min. at 100V DC

4. Withstanding Voltage : 100V AC for one minute

5. Operating Temperature Range : –40˚C to +85˚C

0.5

●

Lower Contact Type

A 5.6

0.5

5.5

B

0.15

CFP46

0.55

2

-05

No. of Pins

(42,50P)

Finish

●

Housing : Liquid Crystal Polymer (LCP),

Black 94V-0

●

Cover : Polyphenylene Sulfide (PPS),

Natural Color, 94V-0

●

Contact : Phosphor Bronze

●

Hold-Down : Phosphor Bronze, Tin Plating

0.5

■

Material and Plating

50F

01G

1.45

4.05

Au

Sn-Pb

0.42

1.3

0.5

No. of Pins

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

A

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

8.5

9.0

B

7.6

8.1

8.6

9.1

9.6

10.1

10.6

11.1

11.6

12.1

12.6

13.1

13.6

14.1

14.6

C

8.0

8.5

9.0

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.0

D

3.05

3.55

4.05

4.55

5.05

5.55

6.05

6.55

7.05

7.55

8.05

8.55

9.05

09.55

10.05

No. of Pins

20

21

22

23

24

25

26

27

28

29

30

32

34

36

42

50

A

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.5

16.5

17.5

20.5

24.5

B

15.1

15.6

16.1

16.6

17.1

17.6

18.1

18.6

19.1

19.6

20.1

21.1

22.1

23.1

26.1

30.1

C

15.5

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.5

22.5

23.5

26.5

30.5

0.2

1.4

D

10.55

11.05

11.55

12.05

12.55

13.05

13.55

14.05

14.55

15.05

15.55

16.55

17.55

18.55

21.55

25.55

P.C. Board Dimension

Applicable FPC

Dimension

t 0.3 0.03

0.3

±

0.03

3.5min.

2.5min.

0.9

0.2

1.05

0.65

0

A

±

0.03

0.5

±

0.02

+

0.05

2.35

±

0.05

R

0.5

±

0.02

A

±

0.03

(A 1.0)

±

0.05

0.35

– 0.03

0.5

±

0.1

+

0.04

1.6

●

FPC plating (Sn-Pb) to recommend

Finish

Sn : Pb=9 : 1

Thickness 1~5µm

0.

2

FPC / FFC Connectors
