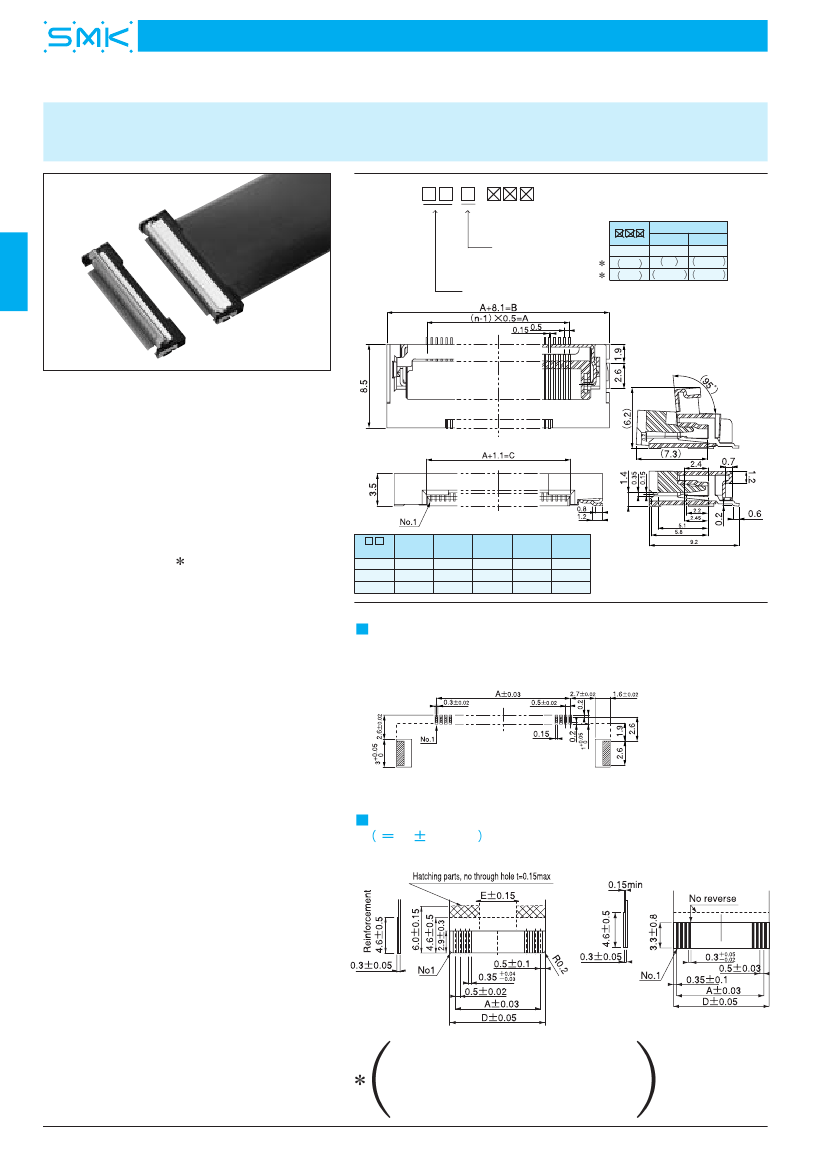

FPC Connector
EC-05
Series
0.5mm Spacing (Easy Flip Lock Type)
●
CFP64
-
3
Finish
Mechanical locking
system of FPC
0 : With
5 : Without
No. of Pins
52F
51G
70G
Contact Soldering
Au
Au
Sn-Pb
Au
Sn-Pb Sn-Pb
FPC / FFC Connectors
■
Features
1. The wire-fixation lever is of our own easy flip lock
system where the locking action is completed by
sliding the cover with the rotating lever, resulting
in better operability (a structure where the cover
moves in conjunction with the lever).
2. The contact section is made of a slider structure
least susceptible to warping. High level reliability
is ensured even for multi-pole design.
3. Upon request, it is possible to provide a structure
whereby unintended disconnection of FPC/FFC
can be protected and insufficient insertion
prevented.
4. A lead-free product < (
) excepted>.
No. of Pins
50
60
80
A
24.5
29.5
39.5
B
32.6
37.6
47.6
C
25.6
30.6
40.6
D
25.5
30.5
40.5
E
18.5
21.5
27.5
■
Specifications
1. Rating : 0.5A, 50V AC/DC
2. Contact Resistance : 30mΩ, max.
3. Insulation Resistance : 100MΩ, min. at 100V DC
4. Withstanding Voltage : 100V AC for one minute
5. Operating Temperature Range : –30˚C to +105˚C
P.C. Board Dimension
■
Material and Plating
●
Housing : Liquid Crystal Polymer (LCP),
Natural Color
●
Cover : Polyphenylene Sulfide (PPS),
Natural Color
●
Lever : Steel Use Stainless
(When a lead is long)
Applicable FPC/FFC Dimension
t 0.3 0.05mm
FPC
FFC
●
FPC plating (Sn-Pb) to recommend
Finish Sn : Pb=9 : 1 ,
Thickness 1~5µm
