C7D43DS29D1: DescriptionCard Edge Connector, 86 Contact(s), 2 Row(s), Female, Straight, 0.125 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size92KB，3 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

C7D43DS29D1 Overview

Card Edge Connector, 86 Contact(s), 2 Row(s), Female, Straight, 0.125 inch Pitch, Solder Terminal, Black Insulator, Receptacle

C7D43DS29D1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROBUST CANTILEVER CONTACTS
Board mount options	HOLE .125-.137
body width	0.37 inch
subject depth	0.61 inch
body length	6.18 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	C7D
Plug contact pitch	0.125 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.35 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	3.17 mm
Termination type	SOLDER
Total number of contacts	86
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

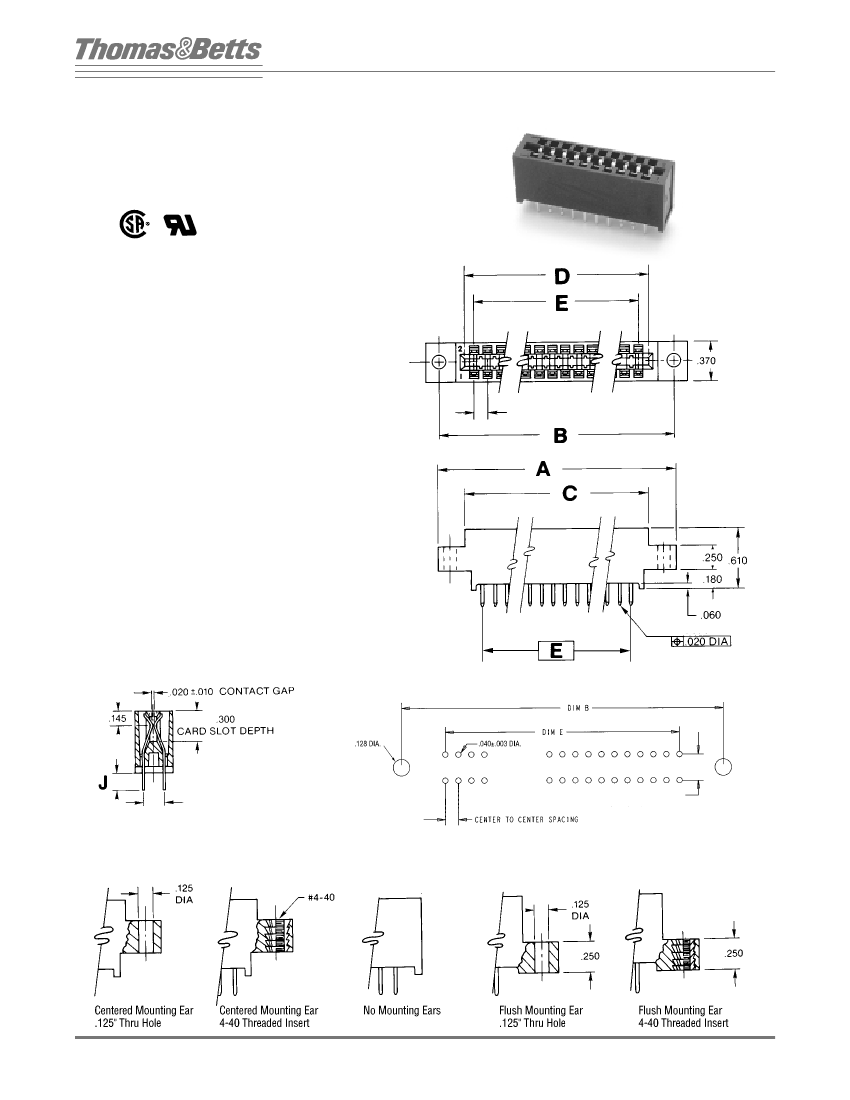

Cardedge

Cantilever Beam

D

ESCRIPTION

The Holmberg

®

Cantilever Beam

Series products are double readout

cardedge connectors, using dip

solder contacts. Tooled for flexible

manufacturing, Holmberg

®

Cardedge

connectors are readily available in

a broad assortment of sizes and

mounting styles. Our connectors

meet industry standards.

HOLMBERG

®

CANTILEVER

SERIES CARDEDGE

CONNECTORS

D

ESIGN

A

DVANTAGES

• Circuit Integrity: Robust cantilever

contacts are designed to assure

optimal normal forces at the lowest

possible cost. Our uniquely

contoured contact mating surface

gives you constant engagement,

even when subjected to continuous

vibration.

• Ease of Assembly: Generous

l e a d - i n c h a m f e r s l e t y o u r P. C .

board slide easily into the

connector. Insulator standoffs are

provided to facilitate cleaning and

prevent solder from wicking.

Availability, flexibility, performance

and very low cost make the

Holmberg

®

Cantilever Series the

clear choice in Cardedge connectors.
