CDR7H2M15RS2M-32Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> CDR7H2M15RS2M-32Z

CDR7H2M15RS2M-32Z: DescriptionBoard Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

CDR7H2M15RS2M-32Z Overview

Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

CDR7H2M15RS2M-32Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: DIN 41612, FIRST MAKE LAST BREAK
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CDR7
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	10.16 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

CDR7 Connectors

Male Connectors

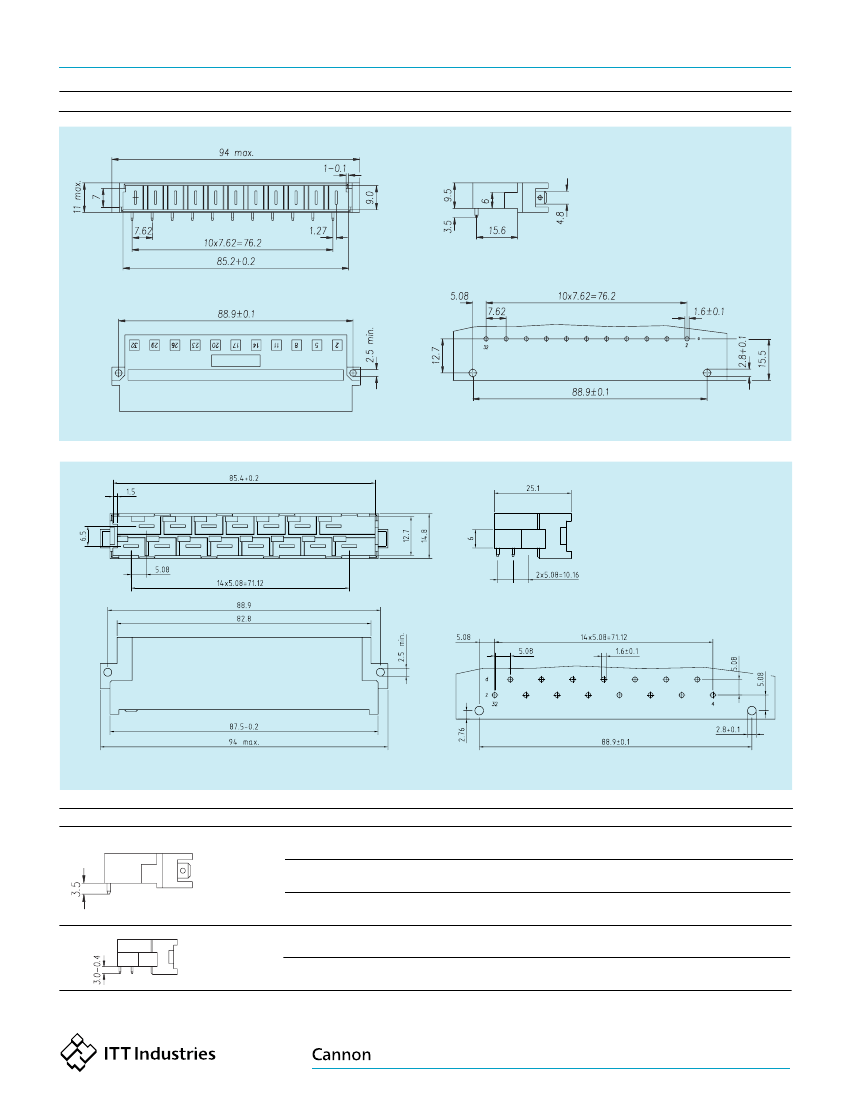

Shell Style H - 11 & 15 way mouldings

Shell Style H1 (11 WAY)

PCB Layout

Shell Style H2 (15 WAY)

PCB Layout

Termination

Terminal

Solder

Shell Style

(11 way)

(15 way)

Cavities with Pre-mating Contacts

2 & 32

Z32

Z4 & Z32

Contact Loading Pattern

11 way

fully loaded

11 way

fully loaded

11 way

fully loaded

15 way

fully loaded

15 way

fully loaded

Ordering Code

CDR7H1M11RS3M

CDR7H1M11RS3M-32E

CDR7H1M11RS3M-2E32

CDR7H2M15RS2M-32Z

CDR7H2M15RS2M-4Z32

Dimensions are shown in mm

Dimensions subject to change

CDR7H2M15RS2M-32Z Related Products

	CDR7H2M15RS2M-32Z	CDR7H2M15RS2M-4Z32	CDR7H1M11RS3M-2E32	CDR7H1M11RS3M-32E	CDR7H1M11RS3M
Description	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 11 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 11 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 11 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: DIN 41612, FIRST MAKE LAST BREAK	STANDARD: DIN 41612, FIRST MAKE LAST BREAK	STANDARD: DIN 41612, FIRST MAKE LAST BREAK	STANDARD: DIN 41612, FIRST MAKE LAST BREAK	STANDARD: DIN 41612, FIRST MAKE LAST BREAK
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	CDR7	CDR7	CDR7	CDR7	CDR7
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	1	1	1
Terminal pitch	10.16 mm	10.16 mm	7.62 mm	7.62 mm	7.62 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	11	11	11
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
