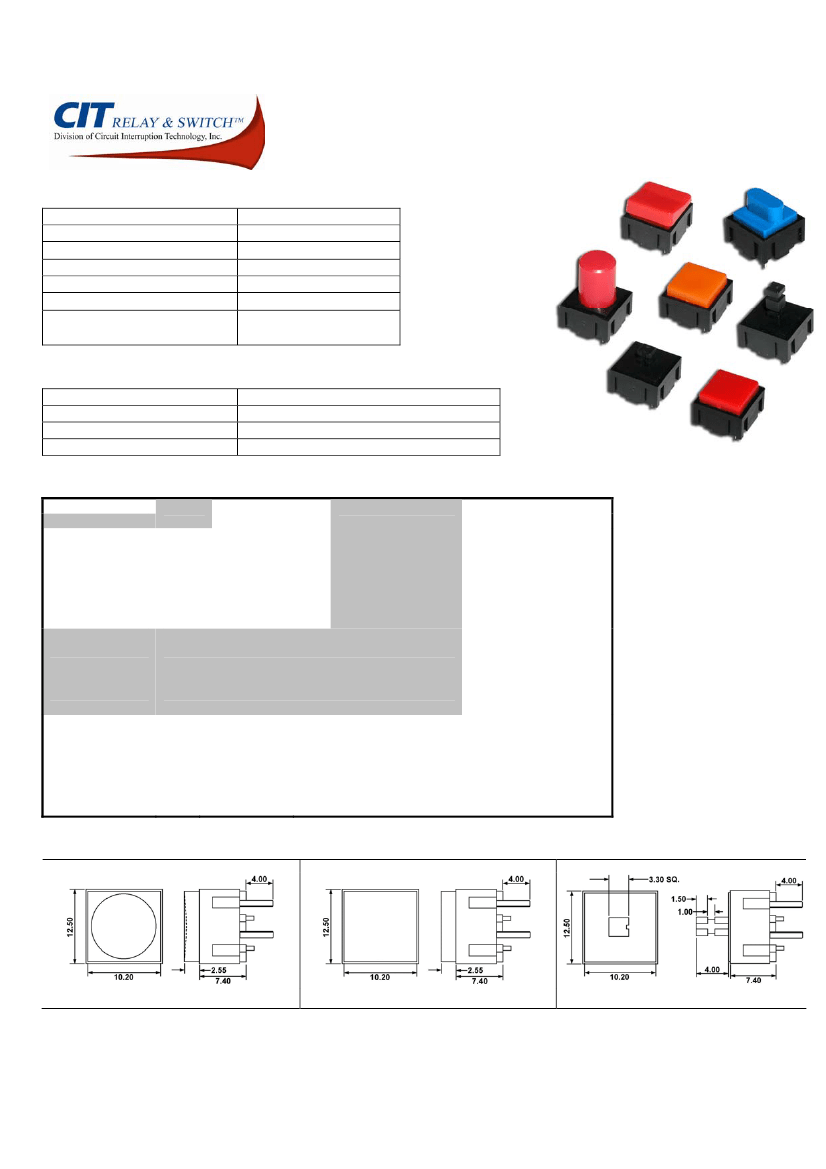

NC
SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Actuation Force
Dielectric Strength
Insulation Resistance
Operating Temperature
Storage Temperature
25mA @ 50VDC
1,000,000 cycles typical
< 25 mΩ initial
150 +/- 50gF
1500Vrms min
> 100MΩ min
-40°C to 85°C
-40°C to 85°C
MATERIALS
←
RoHS COMPLIANT
Cap
Housing
Contacts
Terminals
ABS
6/6 Nylon
Copper Alloy, Gold over Nickel Plated
Copper Alloy, Silver Plated
ORDERING INFORMATION
1. Series:
NC
2. Cover Style:
A
B
C
D
E
F
3. Cover Color:
1 = White
2 = Black
3 = Red
4 = Yellow
5 = Green
4. Caps:
Blank = No Cap
C11
C12
C13
C14
C15*
NC
A
3
6 = Orange
7 = Blue
8 = Dark Gray
9 = Light Gray
Cap Colors:
C16
C17*
C18
C19
C22
C26
C27
C28
**See Cap Options for color availability
** Caps available with C & E actuators only
* C15 & C17 fit only “E” actuator
DIMENSIONS
A
B
C
www.citswitch.com
page
104
phone – 763.535.2339 fax – 763.535.2194

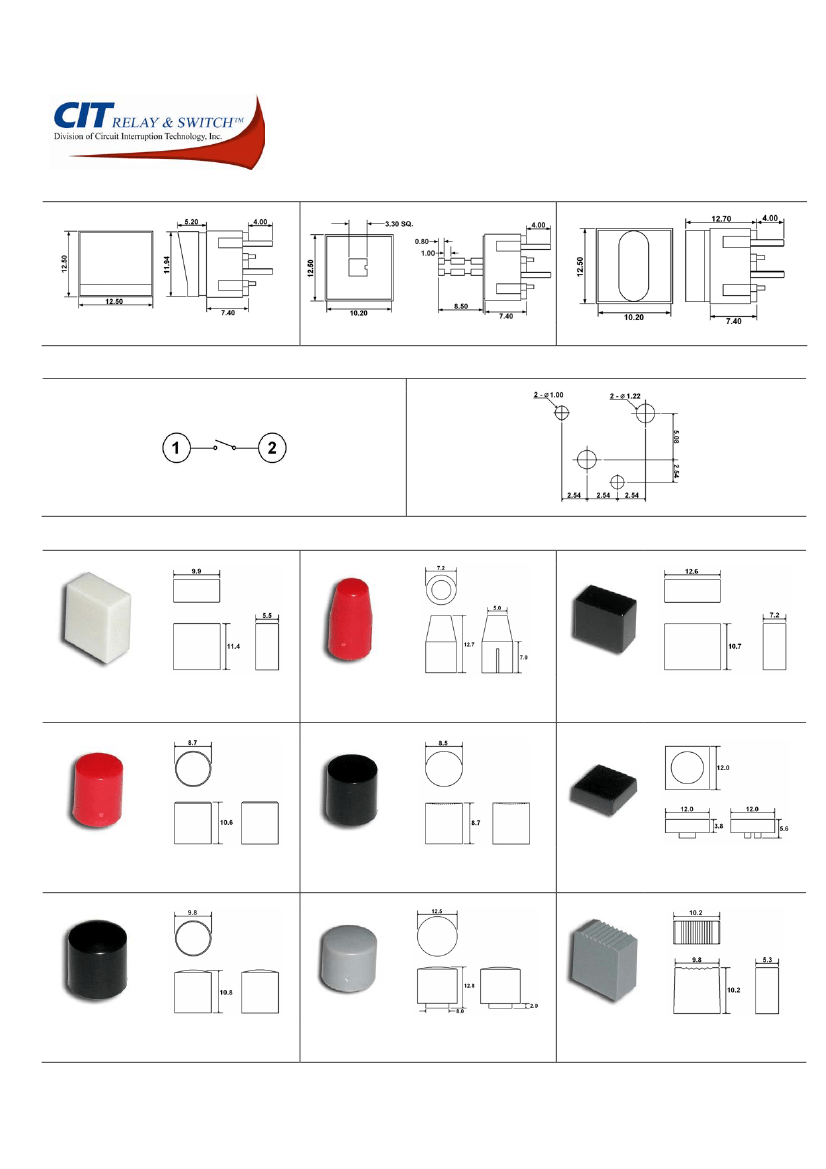

NC
DIMENSIONS
D
E
F
SCHEMATIC & PC LAYOUT
CAP OPTIONS
←
Only available with C & E cover styles
C11_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
C12_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
C13_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
C14_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
C15_ For “E” actuator only
2 = Black, 0 = Clear
Contact Factory for other available colors
C16_
1 = White, 2 = Black, 3 = Red, 7 = Blue
Contact Factory for other available colors
C17_ For “E” actuator only
2 = Black, 0 = Clear
Contact Factory for other available colors
C18_
1 = White, 2 = Black, 9 = Light Gray
Contact Factory for other available colors
C19_
1 = White, 2 = Black, 3 = Red, 8 = Dark Gray
Contact Factory for other available colors
www.citswitch.com
page
105
phone – 763.535.2339 fax – 763.535.2194

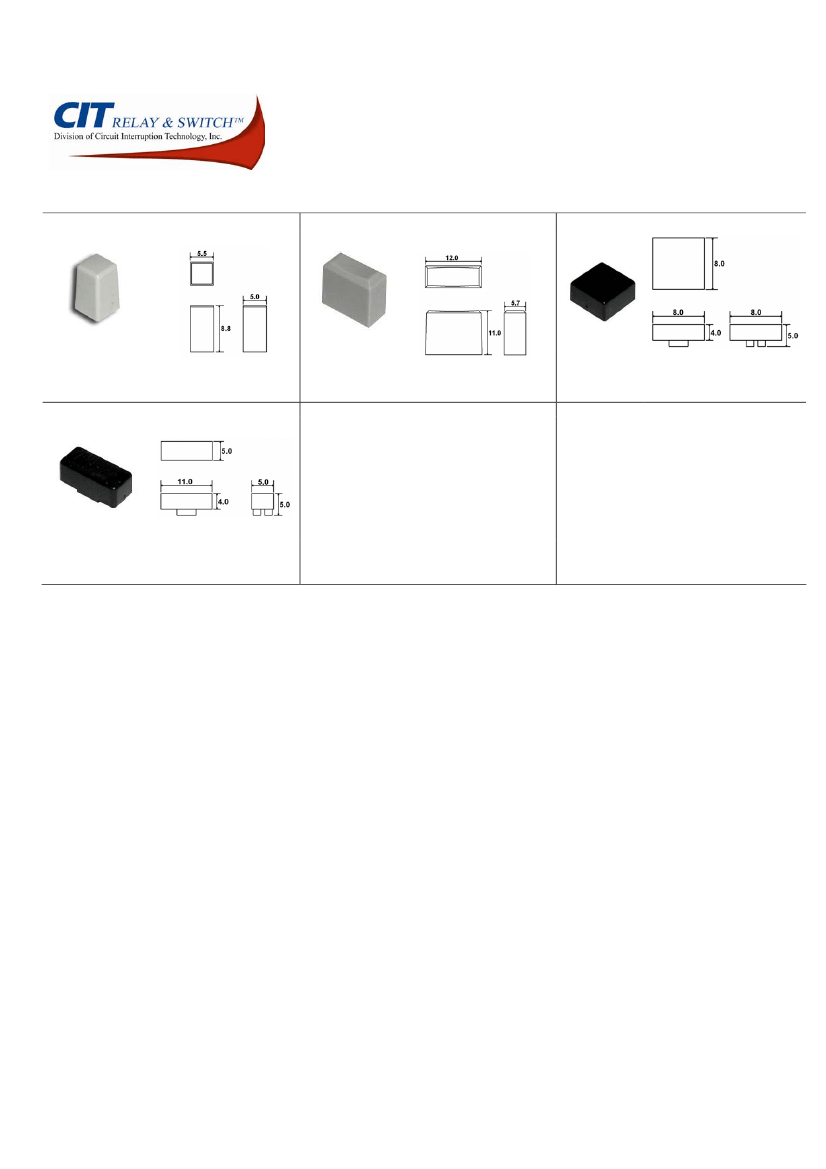

NC
CAP OPTIONS
←
Only available with C & E cover styles
C22_
2 = Black, 8 = Dark Gray, 9 = Light Gray
Contact Factory for other available colors
C26_
1 = White, 2 = Black, 3 = Red, 9 = Light Gray
Contact Factory for other available colors
C27_
1 = White, 2 = Black, 3 = Red, 8 = Dark Gray
Contact Factory for other available colors
C28_
1 = White, 2 = Black, 3 = Red, 8 = Dark Gray
Contact Factory for other available colors
www.citswitch.com
page
106
phone – 763.535.2339 fax – 763.535.2194
