CEH156F18-10: DescriptionRectangular Power Connector, 10 Contact(s), Female; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

CEH156F18-10 Overview

Rectangular Power Connector, 10 Contact(s), Female

CEH156F18-10 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

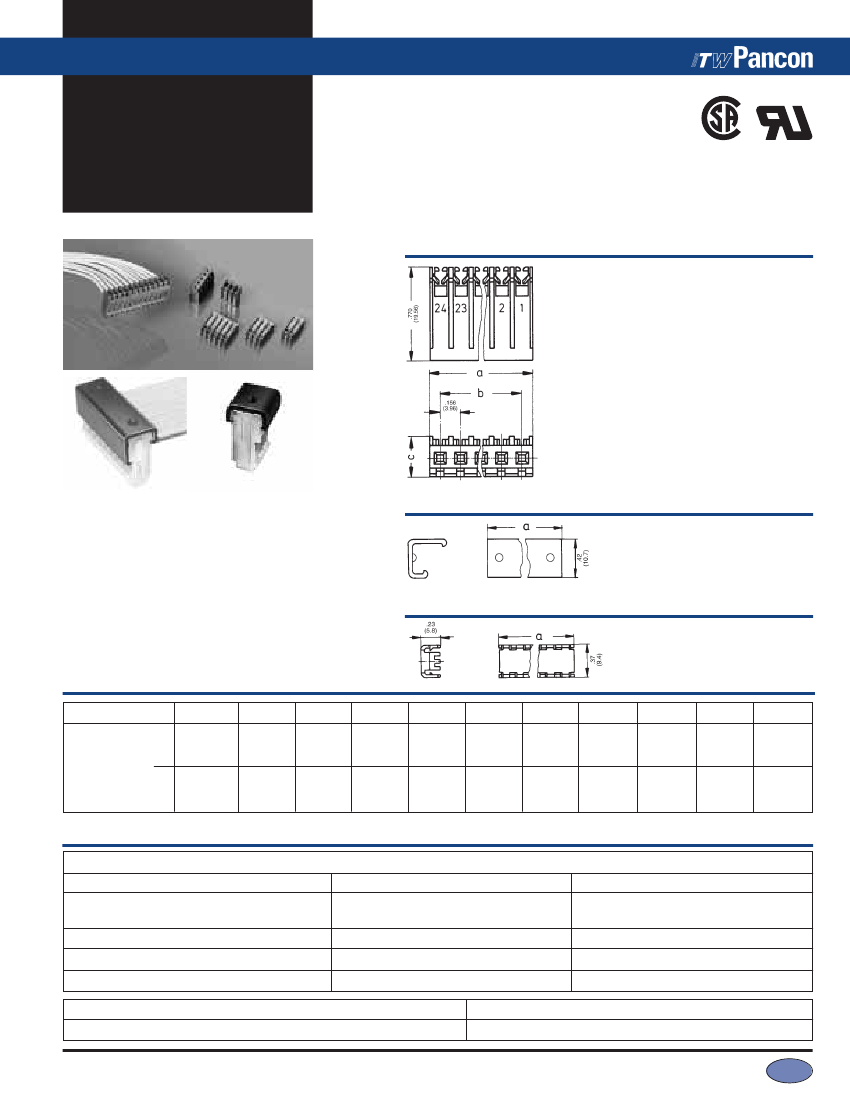

Mas-Con

®

Series CEH/CTH

High Power

Connectors

.156” (3.96 mm) End and

Through Hi-Power

Connectors Available in 2-12

Circuits with Optional Cover

Dimensions

• Provides high current capacity,

18AWG - 12.5 A (75° C)

• Dimpled contact increases hertz stress

• UL 94V-0 rated black housing

Snap-on Covers EC

Strain Relief Combination Cover SCC

Dimensions

No. of Circuits

Dim. in

in. / (mm)

a

b

2

.312

(7.92)

3

.468

(11.89)

4

.468

.624

(11.89) (15.85)

5

.624

.780

(15.85) (19.81)

6

.780

.936

(19.81) (23.77)

7

.936

1.092

(23.77) (27.74)

8

1.092 1.248

(27.74) (31.70)

9

1.248 1.404

(31.70) (35.66)

10

1.404 1.560

(35.66) (39.62)

11

1.560 1.716

(39.62) (43.59)

12

1.716 1.872

(43.59) (47.55)

.156

(3.96)

Part Number

No. of Circuits 2-12

Version

(Contact Factory For Circuit Availability)

.312

(7.92)

s s

= Number of Circuits

End Connector

Through Connector

AWG Identification

Snap-on Cover for End connectors

Strain Relief Combination Cover

Wire Size

AWG 18

(0.8 - 0.9 mm2)

CEH156F18-

s s

CTH156F18-

s s

none

Dimensions

c inches (mm)

.33 (8.4)

.35 (9.0)

EC 156F-

s s

SCC156F-

s s

13
