CD44S13E6RL132LF datasheet, PDF

CD44S13E6RL132LF: DescriptionD Subminiature Connector, 44 Contact(s), Female, Solder Terminal, M3, LEAD FREE; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

CD44S13E6RL132LF Overview

D Subminiature Connector, 44 Contact(s), Female, Solder Terminal, M3, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1030039666
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
body width	0.495 inch
subject depth	0.611 inch
body length	2.088 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CD
Mixed contacts	NO
Installation option 1	M3
Installation option 2	INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Housing size	3/B
Terminal length	0.079 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0

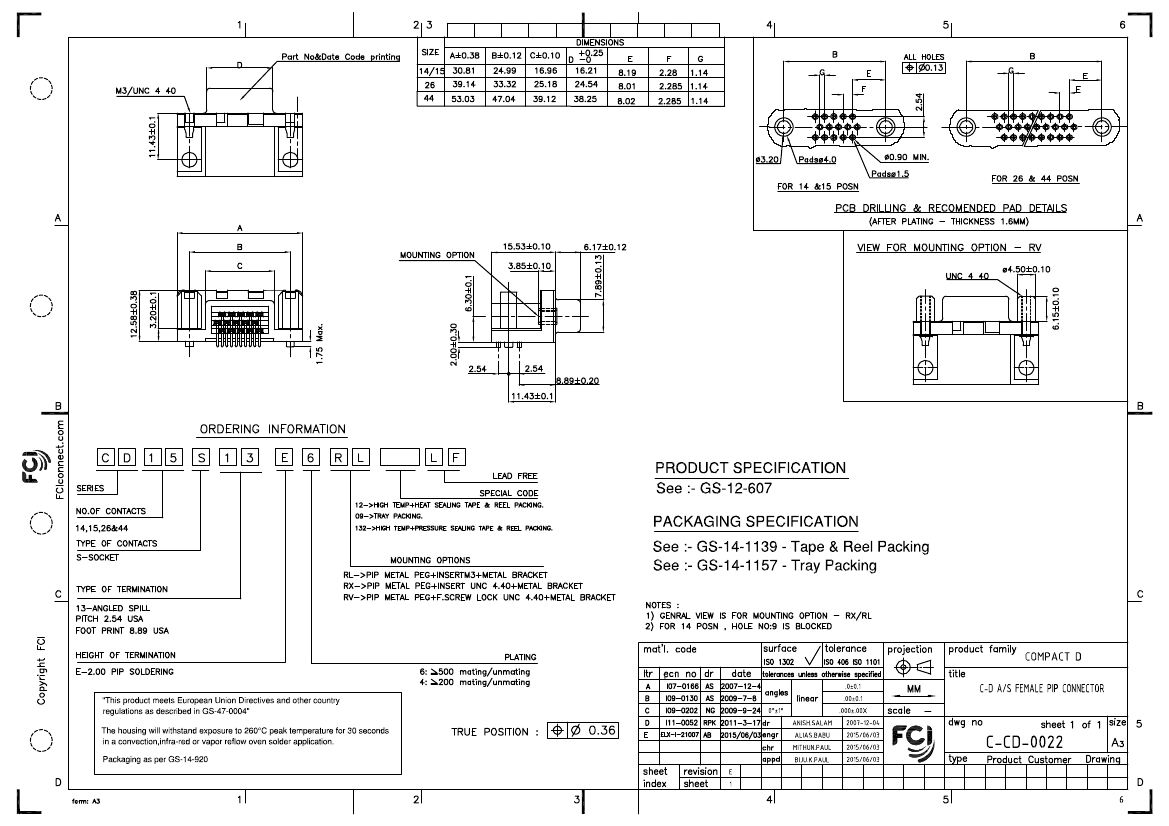

PDS: Rev :E

STATUS:Released

Printed: Jun 04, 2015
