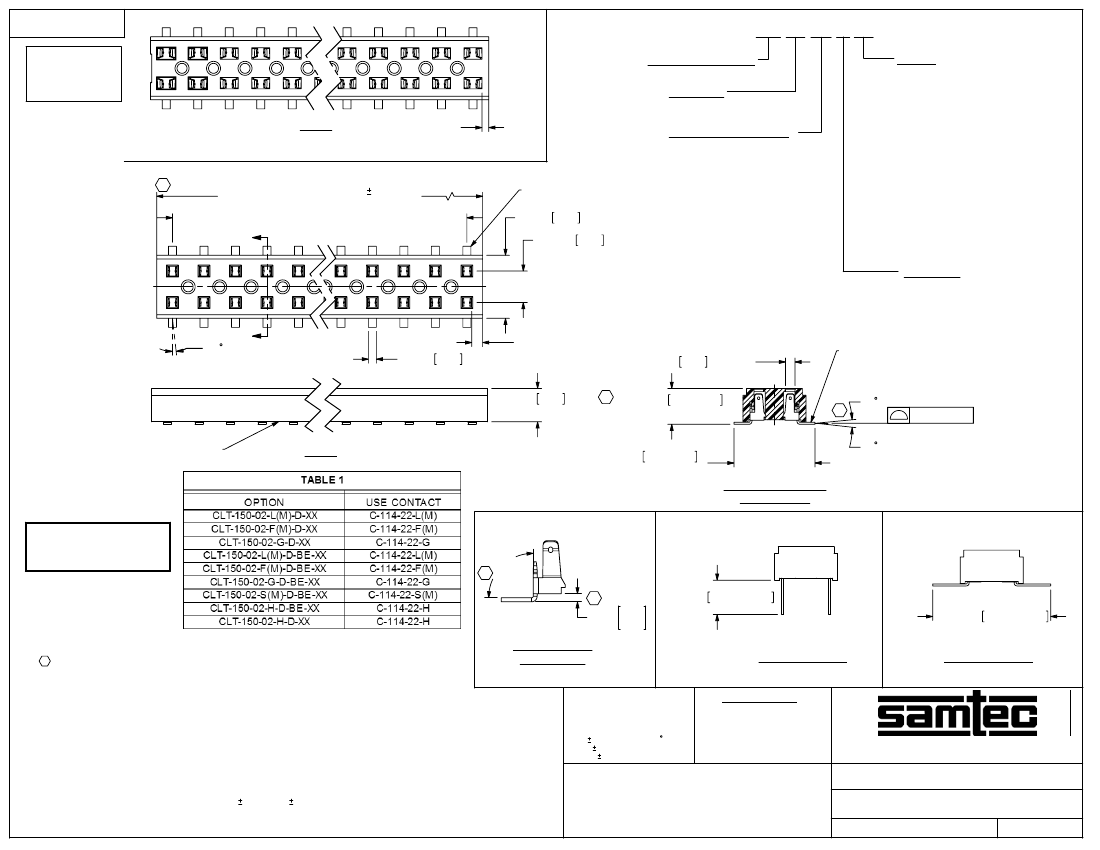

REVISION BV
DO NOT
SCALE FROM
THIS PRINT
CLT-1XX-02-XX-D-XX
No OF POS. PER ROW
-02 THRU -50
-P: PICK & PLACE PAD
AVAILABLE ON POSITIONS
04 THRU 50 ONLY
(SEE FIG. 2, SHT 2. USE LMP-03)
-TR: TAPE AND REEL PACKAGING
(02 THRU 36 POS ONLY)
-BE: BOTTOM ENTRY
(SEE FIG. 6, USE CLT-XX-D-BE-XX)
-A: ALIGNMENT PIN (MOLDED OR STAKED)
(SEE FIGS. 3 & 4, SHT 2)
(STAKED MIN 5 POS)
(MOLDED MIN 3 POS)
-K: POLYIMIDE FILM PAD
(AVAILABLE ON POS. 4 THRU 50 ONLY)
(.005 [.13] THICKNESS WITH SILICONE
ADHESIVE)(SEE FIG 5, SHT 2)
(USE K-500-300)
OPTION
FIG 6
(SEE NOTE 11)
-BE OPTION
(SAME AS FIG 1 EXCEPT INSULATOR)
C
(NO. OF POS. x .0787[2.00]) .005[.13]
(CUT TO POSITION) SEE NOTE 4, 9, 10
(NO. OF POS x .07874[2.00]) - .07874[2.00] REF
-02: SURFACE MOUNT
(SEE TABLE 1)
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-G: 10µ" GOLD IN CONTACT AREA,
SEE TABLE 1
3µ" GOLD ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
.1575 4.00 REF
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
.07874 2.00 REF
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
LEAD STYLE
PLATING SPECIFICATION
"A"
C
L
-D DOUBLE ROW
(USE CLT-XX-D EXCEPT
FOR -BE OPTION)
ROW SPEC.
2.5 MAX SWAY
(ANY DIRECTION)
"A"
(SEE NOTE 10)
.0200 0.51 x .0050[.127] REF
.0835 2.12
REF
.024 0.61 SQ REF
C .090±.002 2.27±0.05
(MEASURE AT BEND)
C
L
BURR SIDE (SEE NOTE 8)
C
+4
SEE NOTE 2
CLT-XX-D-XX
FIG 1
.203±.010 5.15±0.25
(SEE NOTE 6)
-3
SECTION "A"-"A"
SCALE 4 : 1
PATENT NUMBERS
5713755
5961339
88°
C 90°
C
.010 0.25
.012 0.30
.086±.004 2.184±0.102
.295±.008 7.494±0.203
NOTES:
SEE NOTE 11
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE .004 FOR POSITIONS 2-25,
.006 FOR POSITIONS 26-34, AND .008 FOR 35-50.
3. MINIMUM PUSHOUT FORCE: .5 LB.
4. WILL LOSE A POSITION FOR EVERY CUT MADE ON A SOCKET STRIP.
5. ALL OPTIONS:PACKAGE POSITIONS -04 THRU -50 IN
PT-CLX002-D TUBE AS SHOWN IN VIEWS, WITH TWO TP-12 PLUGS
PER TUBE. LAYER PACKAGE POSITIONS -02 & -03.
6. SHEAR TAILS TO DIMENSION SHOWN.
7. PARTS TO BE SYMMETRICAL ABOUT C
L
8. .005 MAX. BURR.
9. CUT FLASH TO BE .010 [.25] MAX WITH NO FLASH
ALLOWED IN HOLES OR EXTENDING BELOW LEADS
10. STANDARD BODY ENDWALL AFTER CUTTING: .0215 MIN.
11. -BE BODY ENDWALL AFTER CUTTING: .0169 .003 [.429 .08]
12. C-114-02 CAN BE USED FOR C-114-22. C-114-22-XX IS FOR
AUTOMATED ASSEMBLY PROCESSES ONLY.
(AUTOMATED ONLY)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
IN-PROCESS
SCALE 8:1
IN-PROCESS 1
(HANDFILL ONLY)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
IN-PROCESS 2
(HANDFILL ONLY)
.XX: .01 [.3]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2MM LOW PROFILE SOCKET STRIP
INSULATOR: LCP, UL 94 VO, COLOR BLACK
CONTACT: PHOS BRONZE
F:\DWG\MISC\MKTG\CLT-1XX-02-XX-D-XX-MKT.SLDDRW
CLT-1XX-02-XX-D-XX
SHEET
1
OF
2
BY:
BRATCHER 10/03/1994
REVISION BV

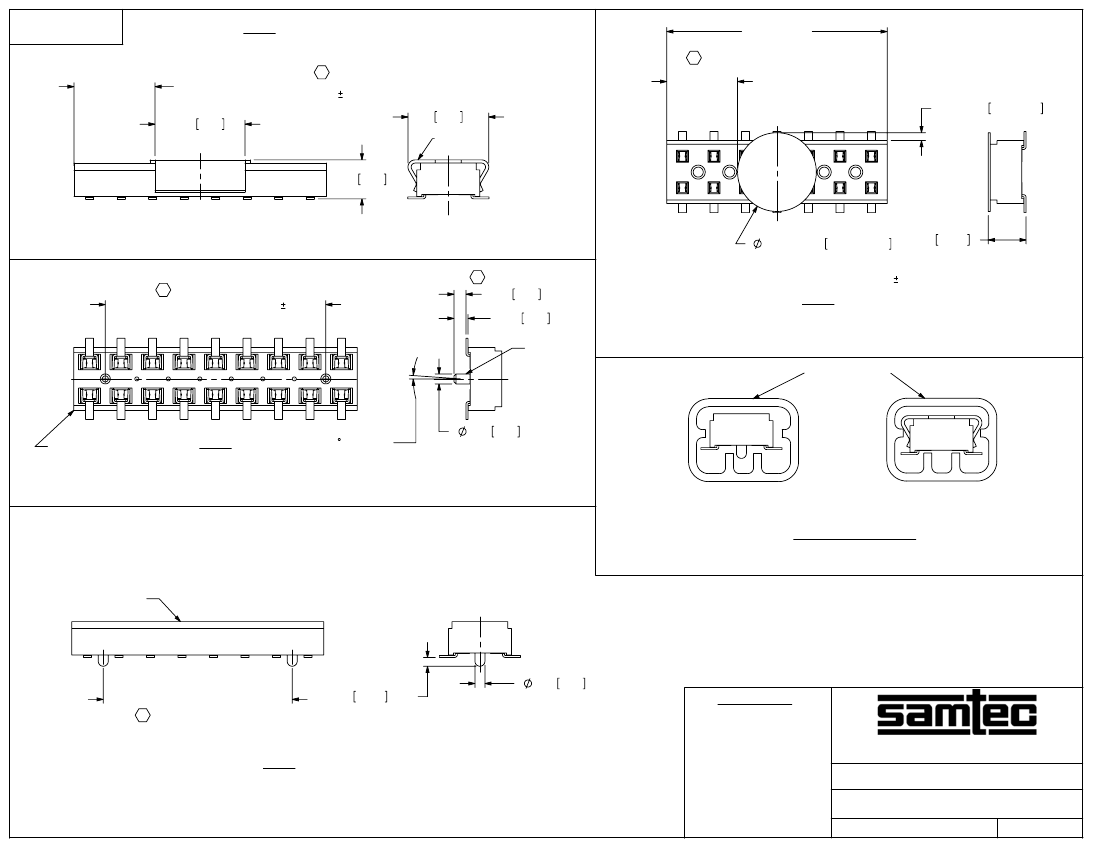

FIG 2
-P: PICK & PLACE PAD
(4 POS MIN)
[(NO OF POS x
.07874[2.00]) / 2] -.1125[2.858] .020
.225 5.72
C
L
.098 2.48
.202 5.13 REF
LMP-03
C
"M"
(SEE NOTE)
C
"P"
(SEE NOTE)
C
L
.020±.010 0.50±0.25
C
L
.1969±.0050 5.001±0.127
C
.030 0.76 REF
.035 0.89
SM-A7H
C
L
USE TP-12 PLUGS
.095 2.400
C
((NO. OF POS -2) x .0787[2.00]) .005
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = (("M" - .1969 [5.00]) / 2) .020 [.51]
FIG 5
-K OPTION
(4 POS MIN)
CLT-XX-D(-BE
*
)
FIG 3
-A OPTION (STAKED)
(5 POS MIN)
2 MAX TOE
(ANY DIRECTION)
.025 0.64 REF
*
= FOR -BE OPTION ONLY
ALL OPTIONS EXCEPT -P
OPTION W/O -A OPTION
POSITIONS 04 - 50
-P OPTION W/O -A OPTION
PACKAGING VIEWS
(SEE NOTE 5)
PT-CLX002-D
CLT-XX-D(-BE
*
)
(No. OF POS. - 2) x .0787[2.00] REF
C
.0235 0.597 REF
.025 0.64 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 4
-A OPTION (MOLDED)
(3 POS MIN)
*
= FOR -BE OPTION ONLY
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
2MM LOW PROFILE SOCKET STRIP
CLT-1XX-02-XX-D-XX
SHEET
2
OF
2
F:\DWG\MISC\MKTG\CLT-1XX-02-XX-D-XX-MKT.SLDDRW
BY:
BRATCHER 10/03/1994
