Cooper-Wheelock NS Series
Horn Strobes & NH Series Horns
Description
The Cooper-Wheelock Series NS Horn
Strobe Appliances will satisfy virtually
all requirements for indoor, wall mount
applications.
The Series NH Horn and the horn por-
tion of the Series NS include a select-
able continuous horn tone or temporal
pattern (Code 3) with selectable dBA
settings of 90 or 95 dBA.
Features
•
Field Selectable Candela Settings
15/30/75/110cd (24 VDC Multi-
Candela models) or 15/75cd in 12
or 24 VDC
Selectable Continuous Horn or
Temporal (Code 3)
2 Selectable dBA settings of 90 and
95 dBA in both tones
12 and 24 VDC models with UL
“Regulated Voltage” using filtered
DC or unfiltered VRMS input voltage
Patented Universal Mounting Plate
Wall Mount
ADA/NFPA/UFC/ANSI compliant
Complies with OSHA 29, Part
1910.165
NH horn is selectable 12 or 24 VDC
in 1 unit
Synchronize with Wheelock SM or
DSM Sync Module or a Power
Supply with built-in sync protocol
Patent pending Universal Mounting
Plate for single-gang, double-gang,
4” (10.16 cm) square, or 100 mm
European backboxes, or
Wheelock’s SHBB shallow surface
backbox.
Fast installation with IN/OUT screw
terminals using #12 to #18 AWG
wires
•
•
•
•
•
•
•
•
•
•

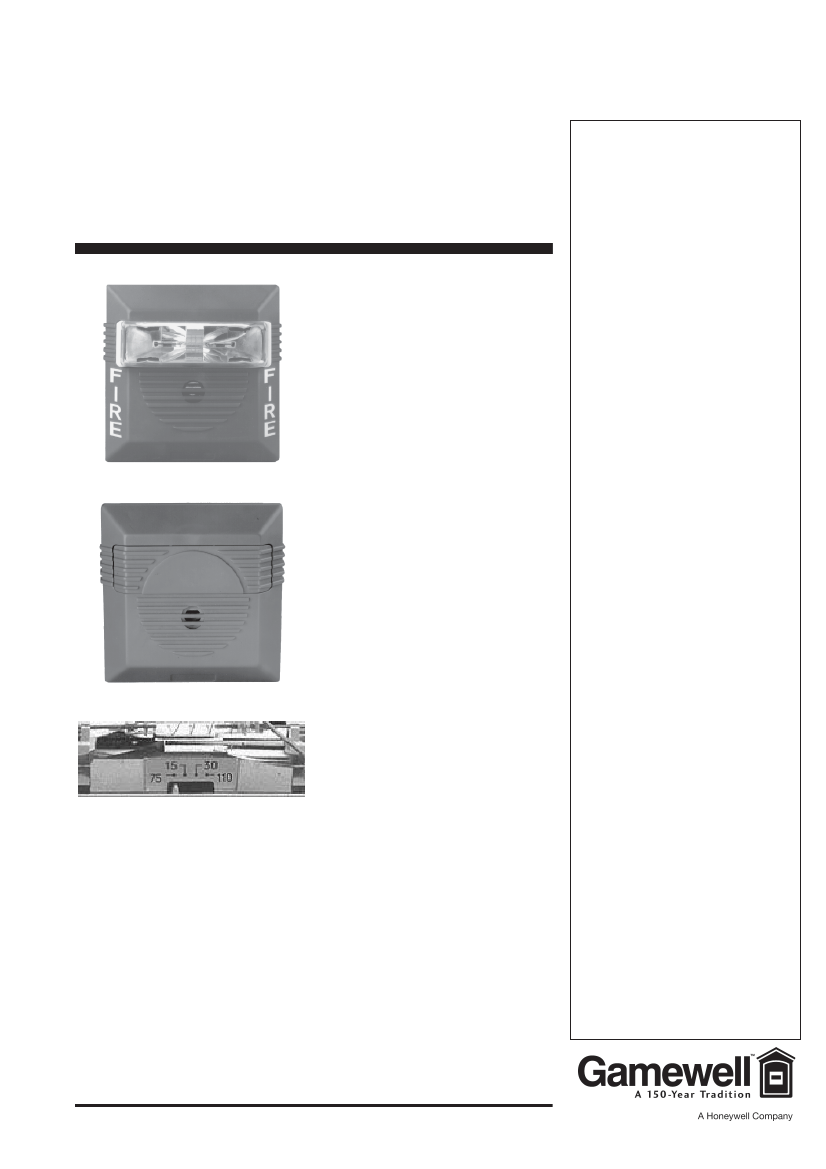

NS Horn Strobe
Strobe options include 15/75cd or Coo-
per-Wheelock’s patented Multi-Can-
dela strobe with field selectable can-
dela settings of 15/30/75/110cd.
These versatile Horn Strobe Appliances
may be synchronized when used in
conjunction with the Wheelock SM or
DSM Sync Modules or a Power Sup-
ply with the Cooper-Wheelock patented
Sync Protocol. Additionally, the audible
may be silenced while maintaining
strobe activation.
•
NH Horn
Multi-Candela Indicator
(bottom of Strobe Lens)
All models of the Series NS and NH
are designed for maximum perfor-
mance, reliability and cost-effective-
ness while meeting or exceeding the
latest requirements of NFPA 72/ANSI
117.1/UFC and UL Standards 1971 and
464 as well as meeting ADA require-
ments concerning photosensitive epi-
lepsy.
Listings
Listings and approvals below apply to
the basic NS Series Strobes and NH
Series Horns. In some cases, certain
modules may not be listed by certain
approval agencies, or listing may be
in process. Consult factory for latest
listing status.
General Notes
• Strobes are designed to flash once per second minimum over their “Regulated
Voltage Range”. Note that NFPA-72 specifies a flash rate of 1 to 2 flashes per
second and ADA Guidelines specify a flash rate of 1 to 3 flashes per second.
• All candela ratings represent minimum effective Strobe intensity based on UL
Standard 1971.
• Series NS Strobe products are listed under UL Standard 1971 for indoor use
with a temperature range of 32°F to 120°F (0°C to 49°C) and maximum humidity
of 93% (± 2%).
• Series NH horns are listed under UL Standard 464 for audible signal appli-
ances (Indoor use only).
•
“Regulated Voltage Range” is the newest terminology used by UL to identify
the voltage range. Prior to this change UL used the terminology “Listed
Voltage Range”.
NS Series Horn Strobes & NH Series Horns
CS-2246 09/01/06
Page 1 of 3
•
•
•
•
•
UL Listed: file E5946.
ULC Listed: files CS243 & CS356.
FM approved.
MEA approved: file 151-92-E.
CSFM approved: file 7125-
0785:142
Engineer’s Specifications
The audible/visual notification appliances shall be Cooper-Wheelock Series NS Horn Strobe
appliances and Series NH Horn appliances or approved equals. The Series NS appliances shall
meet and be listed for UL Standard 1971(Emergency Devices for the Hearing-Impaired for Indoor
Fire Protection Service). The Series NH Horn shall be UL Listed under Standard 464 (Fire
Protective Signaling). The horn strobe shall be listed for indoor use and shall meet the require-
ments of FCC Part 15 Class B. All inputs shall be compatible with standard reverse polarity
supervision of circuit wiring by the Fire Alarm Control Panel (FACP).
The audible portion of the appliance shall have a minimum of two (2) field selectable settings for
dBA levels (90 and 95 dBA) and shall have a choice of continuous or temporal (Code 3) audible
outputs.
The strobe portion of the appliance shall produce a flash rate of one (1) flash per second over
the Regulated Voltage Range and shall incorporate a Xenon flashtube enclosed in a rugged
Lexan lens. The Series NS shall be of low current design. Where wall mount, Multi-Candela
appliances are specified, the strobe intensity shall have field selectable settings and shall be
rated per UL Standard 1971 for 15/30/75/110 candela. The selector switch for selecting the
candela setting shall be tamper resistant. The 15/75 candela strobe shall be specified when 15
candela UL Standard 1971 Listing with 75 candela on-axis is required (e.g. ADA compliance).
When synchronization is required, the appliance shall be compatible with Cooper- Wheelock’s
SM, DSM Sync Modules or a Power Supply with Cooper-Wheelock’s built-in Patented Sync
Protocol. The strobes shall not drift out of synchronization at any time during operation. If the
sync module or Power Supply fails to operate, (i.e., contacts remain closed), the strobes shall
revert to a non-synchronized flash-rate. The appliance shall also be designed so that the
audible signal may be silenced while maintaining strobe activation.
The Series NS Horn Strobes and NH horn shall incorporate a Patented Universal Mounting Plate
that shall allow mounting to a single-gang, double-gang, 4-inch square, 100mm European type
backboxes, or the SHBB Surface Backbox. If required, an NATP (Notification Appliance Trimplate)
shall be provided.
All notification appliances shall be backward compatible.
WARNING: CONTACT COOPER-
WHEELOCK FOR THE CURRENT IN-
STALLATION
INSTRUCTIONS
(P83983) SERIES NS-24MCW, (P84234)
SERIES NS-12 AND 24 VDC SINGLE
CANDELA MODELS, (P83600) SERIES
NH AND “GENERAL INFORMATION”
SHEET (P82380) ON THESE PROD-
UCTS. THESE DOCUMENTS UNDERGO
PERIODIC CHANGES. IT IS IMPOR-
TANT THAT YOU HAVE CURRENT IN-
FORMATION ON THESE PRODUCTS.
THESE MATERIALS CONTAIN IMPOR-
TANT INFORMATION THAT SHOULD BE
READ PRIOR TO SPECIFYING OR IN-
STALLING THESE PRODUCTS, IN-
CLUDING:
•
•
TOTAL CURRENT REQUIRED BY ALL
APPLIANCES CONNECTED TO SYSTEM
SECONDARY POWER SOURCES.
FUSE RATINGS ON NOTIFICATION AP-
PLIANCE CIRCUITS TO HANDLE PEAK
CURRENTS FROM ALL APPLIANCES
ON THOSE CIRCUITS.
COMPOSITE FLASH RATE FROM MUL-
TIPLE STROBES WITHIN A PERSON’S
FIELD OF VIEW.
ADDING, REPLACING OR CHANGING AP-
PLIANCES OR CHANGING CANDELA
SETTINGS WILL AFFECT CURRENT
DRAW.
RECALCULATE CURRENT DRAW TO IN-
SURE THAT THE TOTAL AVERAGE
CURRENT AND TOTAL PEAK REQUIRED
BY ALL APPLIANCES DO NOT EXCEED
THE RATED CAPACITY OF THE POWER
SOURCES OR FUSES.
THE VOLTAGE APPLIED TO THESE
PRODUCTS MUST BE WITHIN THEIR
“REGULATED VOLTAGE RANGE”.
INSTALLATION OF 110 CANDELA
STROBE PRODUCTS IN SLEEPING AR-
EAS.
INSTALLATION IN OFFICE AREAS AND
OTHER SPECIFICATION AND INSTALLA-
TION ISSUES.
THESE APPLIANCES ARE NOT DE-
SIGNED TO BE USED ON CODED SYS-
TEMS IN WHICH THE APPLIED VOLTAGE
IS CYCLED ON AND OFF.
FAILURE TO COMPLY WITH THE INSTAL-
LATION INSTRUCTIONS OR GENERAL
INFORMATION SHEETS COULD RESULT
IN IMPROPER INSTALLATION, APPLICA-
TION, AND/OR OPERATION OF THESE
PRODUCTS IN AN EMERGENCY SITUA-
TION, WHICH COULD RESULT IN PROP-
ERTY DAMAGE AND SERIOUS INJURY
OR DEATH TO YOU AND/OR OTHERS.
CONDUCTOR SIZE (AWG), LENGTH
AND AMPACITY SHOULD BE TAKEN
INTO CONSIDERATION PRIOR TO DESIGN
AND INSTALLATION OF THESE PROD-
UCTS, PARTICULARLY IN RETROFIT IN-
STALLATIONS.
•
•
•
Wiring Diagram
FROM
+
PRECEDING
-
APPLIANCE, SM/DSM,
PS-12/24-8MP OR
FACP
TO NEXT
+
APPLIANCE
-
OR EOLR
+
-
NS/NH
APPLIANCE
•
•
SM
F
A
C
P
+ STROBE
Strobe
NAC
Circuit
- STROBE
NS
+Audible
EOLR
- Audible
NH
NS AND NH APPLIANCES SYNCHRONIZED
WITH SM MODULE SINGLE CLASS “B”
NAC CIRCUIT WITH AUDIBLE SILENCE
FEATURE
•
•
Audible
NAC
Circuit
DUAL SYNC MODULE
SYNC
+
SYNC
-
+
+
-
F
A
C
P
SIGNAL
CIRCUIT OUT
OUT1
IN1
NS AND NH APPLIANCES SYNCHRONIZED
WITH DSM MODULE DUAL CLASS “A”
NAC CIRCUIT WITH NO AUDIBLE SILENCE
FEATURE
•
+
MINUS1
+
AUDIBLE
-
+
+
-
SIGNAL
CIRCUIT RETURN
AUDIBLE
•
+
-
+
-
APPLIANCE
APPLIANCE
OUT2
IN2
+
MINUS2
NOTE:
NS/NH must be set on Code 3 horn to achieve synchronized temporal (Code 3) tone.
Refer to instruction (P38983, P83600 respectively).
Page 2 of 3
NS Series Horn Strobes & NH Series Horns
CS-2246
09/01/06
Specification & Ordering Information
MODEL
STROBE
CANDELA
15/30/75/110
15/30/75/110
15 (75 on axis)
15 (75 on axis)
12V
24V
SYNC
24
12
2
NON-
W/SM,
VDC VDC WIRE
SYNC
DSM
X
X
X
X
X
X
X
X
X
X
X
X
X
-
X
-
-
-
X
X
X
X
X
X
X
MOUNTING
OPTIONS***
B,D,E,F,G,H,J,N,O,R,X
B,D,E,F,G,H,J,N,O,R,X
B,D,E,F,G,H,J,N,O,R,X
B,D,E,F,G,H,J,N,O,R,X
B,D,E,F,G,H,J,N,O,R,X
AGENCY APPROVALS
UL MEA CSFM FM BFP
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
NS-24MCW-FR
NS-24MCW-FW
NS-241575W-FR
NS-121575W-FR
NH-12/24-R
Table 1: Ratings Per UL Standard 1971
Re gulate d
Input
Voltage
Voltage
Range
Model
VDC
VDC/FWR
NS-24MCW
NS-241575W
NS-121575W
24
24
12
T ab le 4: *A ve r ag e M e an C u rr e nt Ratin gs NH Hor n 24 V olt M o de ls
V oltage
High (95) dBA
.019
.028
.039
Low (90) dBA
.017
.022
.027
Strobe
Candela (CD)
16.0 V DC
24.0 V DC
33.0 V DC
16.0 - 33.0 15/30/75/110
16.0 - 33.0 15 (75 on Axis)
8.0 - 17.5
15 (75 on Axi)
Table 2: *Average RMS Current Ratings
NS-24MCW with High (95 dBA) Setting
Voltage
16.0 VDC
24.0 VDC
33.0 VDC
15cd
.077
.065
.069
30cd
.113
.087
.082
75cd
.195
.134
.117
110cd
.268
.174
.134
*Average RMS Current is per UL average RMS method and Average Mean
Current is per UL average mean method. NH models use average mean current.
For rated In Rush and Peak current across the UL listed voltage range for both
filtered DC and unfiltered VRMS (FWR), see installation instructions.
*** Refer to mounting options.
Table 5: dBA Ratings for Series NS/NH Horn
Reverberant dBA @
10 ft. per UL 464
12 VDC
Continous
Horn
Code 3
Horn
High
Low
High
Low
83
76
79
72
24 VDC
87
81
82
76
Anechoic dBA @
10 ft.
12 VDC
89
84
89
84
24 VDC
95
90
95
90
Description Volume
NS-24MCW with Low (90 dBA) Setting
Voltage
16.0 VDC
24.0 VDC
33.0 VDC
15cd
.070
.052
.045
30cd
.106
.072
.060
75cd
.188
.126
.097
110cd
.261
.158
.114
Table 3: *Average RMS Current Ratings
NS-241575W
Voltage
16.0 VDC
24.0 VDC
33.0 VDC
NS-121575W
Voltage
8.0 VDC
12.0 VDC
17.5 VDC
High (95) dBA
.341
.251
.216
Low (90) dBA
.324
.265
.188
High (95) dBA
.120
.094
.102
Low (90) dBA
.116
.093
.078
SYNC MODELS/POWER SUPPLY
M ODEL
NUM BER
INP UT
VOLTAGE
(VDC)
AVER AGE
M EAN
CURRENT
@ 24 VDC
M OUNTING
OP TIONS
SM-12/24-R
DSM-12/24-R
24
24
.028
.035
W
W
NOTES:
SM Sync Module is rated for 3.0
amperes @ 24 VDC;
DSM Sync Module is rated for 3.0
amperes per circuit. The
maximum number of intercon-
nected DSM Modules is twenty
(20).
Specifications and wiring information are provided for information only and are believed
to be accurate. Gamewell-FCI assumes no responsibility for their use.
Data and design are subject to change without notice. Installation and wiring
instructions shipped with the product shall always be used for actual installation. For
more information, contact Gamewell-FCI.
NS Series Horn Strobes & NH Series Horns
CS-2246
09/01/06
Page 3 of 3
Gamewell-FCI
12 Clintonville Road
Northford, CT 06472-1610
Phone: 203-484-7161
Fax: 203-484-7118
www.gamewell-fci.com
A Honeywell Company
© 2006 Gamewell-FCI
京公网安备 11010802033920号
EEWORLD
