NJM2504
VIDEO DIFFERENTIAL OUTPUT DRIVER
GENERAL DESCRIPTION
The NJM2504 is video differential output driver. The single-end signal
is converted to the differential signal. The single-end signal can be
transmitted by the differential signal by the connection with NJM2507.
And, it is converted to the single-end signal by the NJM2507.
The common mode noise can be removed because of the differential
motion transmission, and it is the best for the transmission of car AV
system.
PACKAGE OUTLINE
NJM2504RB1
FEATURES
Operating Voltage
4.5 to 9.5V
Input: Single-end signal, Output: Differential signal
Internal 6dB Amplifier
Internal 75ohm Driver
Internal SAG Correction Circuit
Bipolar Technology
Package Outline
TVSP8
PIN CONNECTION
1: V+
2: Power Save
3: VIN
4: GND
5: Vsagn
6: Voutn
7: Vsagp
8: Voutp
1
2
3
4
8
7
6
5
BLOCK DIAGRAM
Vcc
PowerSave
VOUTP
VSAGP
VIN
Bias
VSAGN
VOUTN
GND
Ver.6
-1-
NJM2504
ABSOLUTE MAXIMUM RATINGS
(Ta=25°C)
PARAMETER
SYMBOL
RATINGS
UNIT
+
Supply Voltage
V
10
V
Power Dissipation
P
D
580(Note1)
mW
Operating Temperature Range
Topr
-40 to +85(Note2)
°C
Storage Temperature Range
Tstg
-40 to +150
°C
(Note 1) At on a board of EIA/JEDEC specification. (114.3 x 76.2 x 1.6mm 2 layers, FR-4)
(Note 2) It has high operating temperature range product. (-40 to +105°C)
RECCOMENDED OPERATING CONDITIONS
(Ta=25°C)
PARAMETER
Operating voltage
SYMBOL
Vopr
TEST CONDITION
MIN.
4.5
TYP.
-
MAX.
9.0
UNIT
V
ELECTRICAL CHRACTERISTCS
(V
+
=5V, RL=150ohm,Ta=25°C)
PARAMETER
Supply Current
Supply Current
at Power Save Mode
Maximum Output Level
Voltage Gain
Frequency Characteristics
Differential Gain
Differential Phase
SW Voltage High Level
SW Voltage Low Level
SW Sink Current High Level
SW Sink Current Low Level
CONTROL CHRACTERISTC
PARAMETER
Power Save
SYMBOL
I
CC
Isave
Vom
Gv
Gf
DG
DP
VthH
VthL
IthH
IthL
No signal
Power save mode
Vin=100kHz,sin-signal, THD=1%,
Vin=1MHz, 1.0Vp-p sin-signal
Vin=10MHz/1MHz, 1.0Vpp sin-signal
Vin=1.0Vp-p 10step video signal
Vin=1.0Vp-p 10step video signal
TEST CONDITION
MIN.
-
-
2.2
5.7
-1.0
-
-
2.2
0
-
-
TYP.
16
0.3
2.4
6.2
0
0.5
0.5
-
-
-
-
MAX.
20
0.5
-
6.7
1.0
-
-
V
+
1.0
120
8.0
UNIT
mA
mA
Vp-p
dB
dB
%
deg
V
V
µA
µA
V=5V
V=0.3V
STATUS
H
L
OPEN
MODE
Power save: OFF Active mode
Power save: ON Non-Active mode (Mute)
Power save: ON Non-Active mode (Mute)
Ver.6
-2-
NJM2504

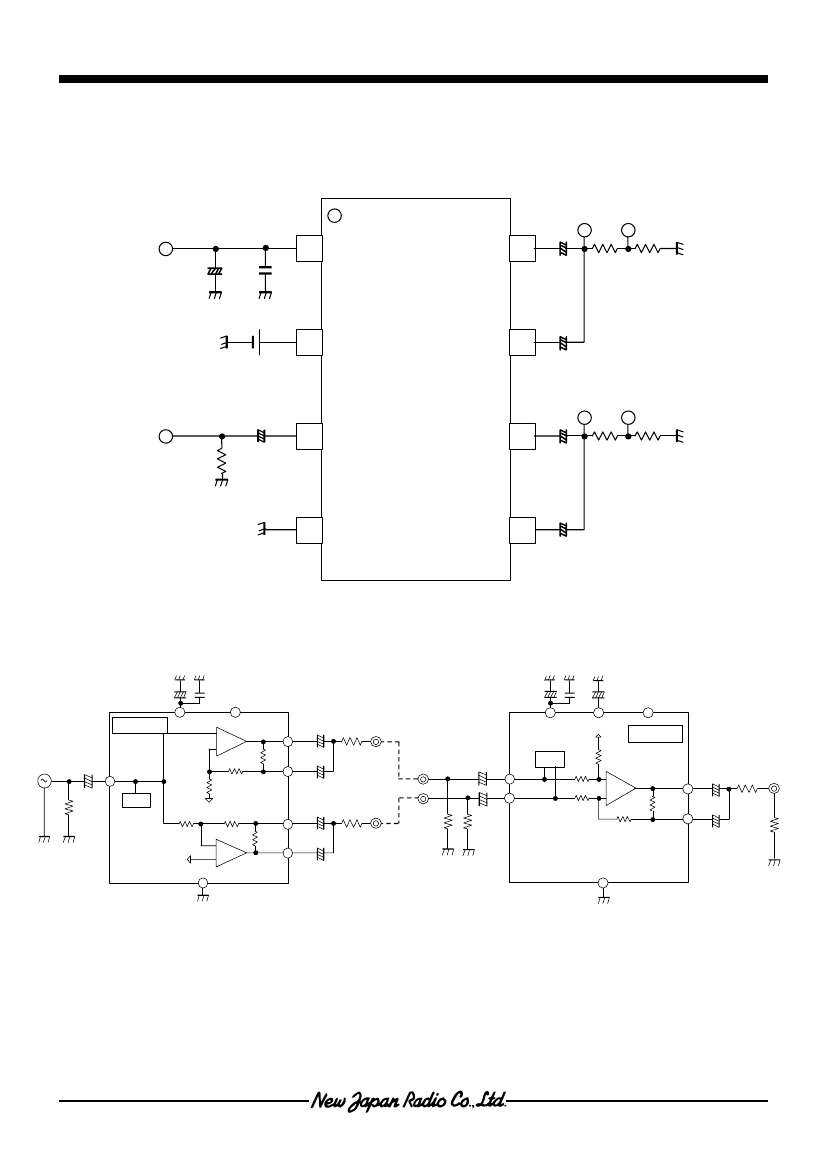

TEST CIRCUIT
1
+
VCC
VOUTP
8
+
47µF
0.1µF
100µF 75Ω
75Ω
2
PS
VSAGP
7
+
22µF
+
3
75Ω
10µF
VIN
VOUTN
6
+
100µF 75Ω
75Ω
4
GND
VSAGN
5
+
22µF
APPLICATION CIRCUIT
47uF
0.1uF
VCC
+
PS
VOUTP
47uF
+
0.1uF
+
10uF
VCC
VREF
PS
NJM2504
+
6dB
-
+
NJM2507
100uF
75Ω
IN
VIN
+
+
VINP
10uF
+
BIAS
22uF
10uF
BIAS
VSAGP
VOUTN
+
10uF
+
+
6dB
-
VOUT
+
OUT
75Ω
100uF
+
50or75Ω
VINN
100uF
75Ω
75Ω 75Ω
22uF
-
6dB
+
GND
+
VSAG
22uF
75Ω
VSAGN
GND
Ver.6
-3-
NJM2504
EQUIVALENT CIRCUIT (Vcc=5V)
PIN No.
PIN NAME
1
Vcc
58k
Ω
EQUIVALENT CIRCUIT
DC VOLTAGE
5V
2
Power Save
48k
Ω
-
GND
VCC
100
Ω
3
VIN
50k
Ω
2.5V
GND
4
GND
VCC
-
5
VSAGN
20.9k
Ω
750
Ω
2.5V
GND
VCC
6
8
VOUTN
VOUTP
750
Ω
2.5V
GND
VCC
7
VSAGP
10.9k
Ω
750
Ω
2.5V
GND
Ver.6
-4-
NJM2504
