DME5000-222 | DME5000
LONG RANGE DISTANCE SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

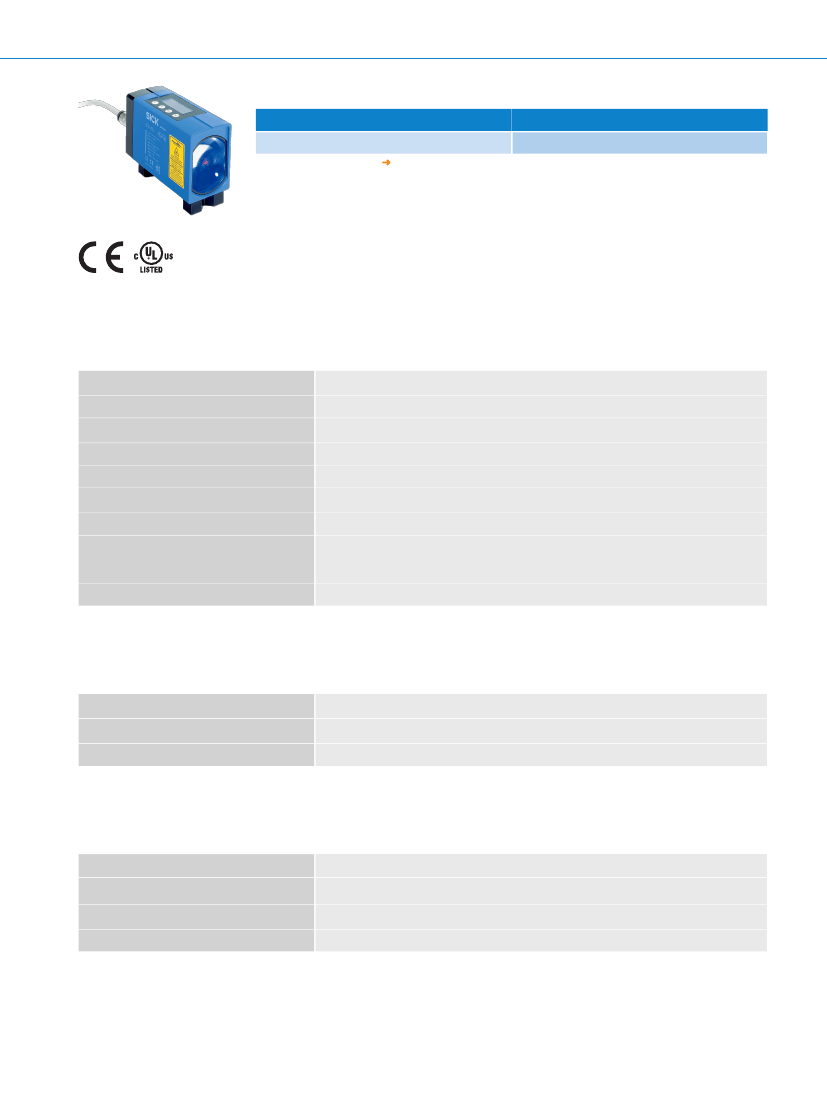

Ordering information
Type
DME5000-222
Other models and accessories
www.sick.com/DME5000
Part no.
1024086
Detailed technical data
Performance
Measuring range
Resolution
Repeatability
Accuracy
Output time
Light source
Laser class
Typ. light spot size (distance)
0.15 m ... 150 m, on reflective tape "Diamond Grade"
1)
0.05 mm ... 5 mm
1 mm
1)
2)
± 3 mm
2 ms
Laser, red
3)
2 (EN 60825-1 / CDRH)
130 mm (at 70 m)
270 mm (at 150 m)
360 mm (at 220 m)
10 m/s
Max. movement speed
1)
2)
3)
On reflective tape "Diamond Grade"
Statistical error 1 σ, environmental conditions constant, min. warm-up time 10 min.
Average service life of 50,000 h at T
A
= +25 °C.
Interfaces
Switching output
Multifunctional input (MF)
Data interface
1)
2)
3)
Push-pull: PNP/NPN (100 mA)
1)
1 x MF
2)
3)
PROFIBUS DP
HIGH = > V
S
- 3 V / LOW = < 2 V.
HIGH = > 12 V / LOW = < 3 V.
Not reverse-polarity protected.
Mechanics/electronics
Supply voltage V
s
Ripple
Initialization time
Connection type
1)
2)
3)
DC 18 V ... 30 V, limit values
< 5 V
pp
1)
1.5 s
2)
Male connector, 2 x M12, 5-pin, B-coded, 1 x M16, 8-pin, B-coded
May not fall short of or exceed V
S
tolerances.
After loss of reflector < 1 s at max. speed V
max
< 1 m/s.
Short-circuit protected, overload-protected. Max. 100 nF / 20 mH.
2
DISTANCE SENSORS | SICK
Online data sheet | 2016-03-17 13:18:11
Subject to change without notice
DME5000-222 | DME5000
LONG RANGE DISTANCE SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Connection type
DME4/5xxx PROFIBUS Connector 2 x M12, 5-pin, B-coded, BUS IN, BUS OUT, 1 x M16, 8-pin
2
3
1
① Connector
M16, 8-pin
② Connector
M12, 5-pin, B-coded, BUS IN
③ Connector
M12, 5-pin, B-coded, BUS OUT
Connection diagram
1
pnk
wht
brn
gra
blk
vio
blu
red
2
1
2
3
4
5
Data+
(TX+)
*)
3
1
nc
A
nc
B
nc
4
grn
1 +5 V
2 A
3 GND
red
MF1
L+
(18 V ... 30 V)
Data–
(TX–)
*)
grn
2
3
4
4
red
4
5
4 B
5 nc
MF2
4
6
CLK+
(RX+)
*)
7
M
(0 V)
8
CLK–
(RX–)
*)
*)
For connection of interface adapter.
① Connector
M16, 8-pin
② Connector
M12, 5-pin, B-coded, BUS IN
③ Connector
M12, 5-pin, B-coded, BUS OUT
④ Not
assigned
Adjustment possible
MF1 TMP
MF2 ATT
LSR
PLB
RDY
BUS
Ver. 1.0
2
Esc
DME
Set
3
② LC
display
③ Keypad
4
DISTANCE SENSORS | SICK
Online data sheet | 2016-03-17 13:18:11
Subject to change without notice
LONG RANGE DISTANCE SENSORS

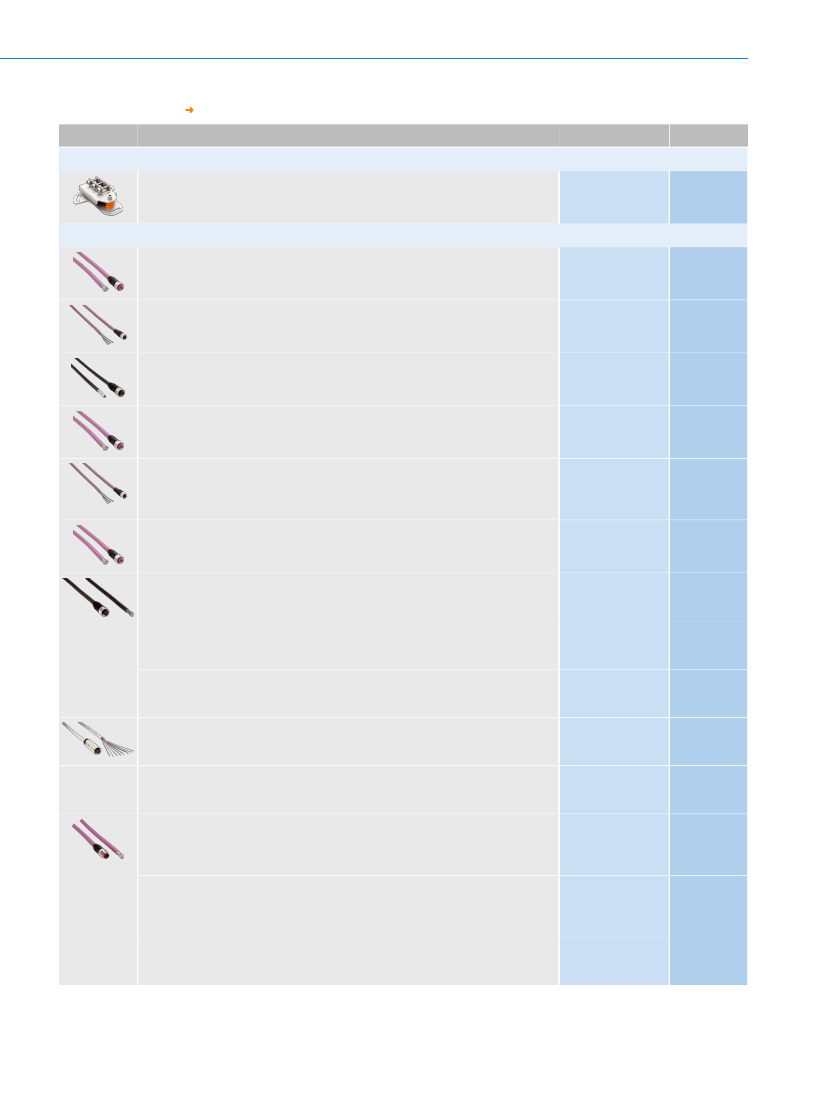

Recommended accessories
Other models and accessories
www.sick.com/DME5000
DME5000-222 | DME5000
Brief description
Type
Part no.
Terminal and alignment brackets
Alignment unit for DME5000, stainless steel (1.4541), incl. mounting material, addition-
al base plate mounting kit required, mounting hardware included
BEF-AH-DME5
2027721
Plug connectors and cables
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PROFIBUS DP, PUR, halogen-free, shielded, 5 m
Head A: female connector, M12, 5-pin, A-coded
Head B: cable
Cable: Power, CAN, unshielded, 5 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: CANopen, Shielded cable, 6 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PROFIBUS DP, PVC, shielded, 10 m
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: CAN/CANopen, shielded, 10 m
Shielded on pin 1
Head A: female connector, M12, 5-pin, straight
Head B: cable
Cable: PROFIBUS DP, shielded, 15 m
Head A: female connector, M12, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 2 m
Head A: female connector, M12, 8-pin, straight
Head B: cable
Cable: drag chain use, PUR, halogen-free, shielded, 5 m
Head A: female connector, M12, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 10 m
Head A: female connector, M16, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 5 m
Head A: female connector, M16, 8-pin, straight
Head B: cable
Cable: PUR, halogen-free, shielded, 10 m
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, halogen-free, shielded, 5 m
Wire shield Al-Pt film, overall shield C-screen tin-plated
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, halogen-free, shielded, 10 m
Wire shield Al-Pt film, overall shield C-screen tin-plated
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, halogen-free, shielded, 15 m
DOL-1205-G05MQ
6026006
DOL-1205-
G05M_Can
DOL-1205-G06MK
6021166
6028326
DOL-1205-G10MQ
6026008
DOL-1205-
G10M_Can
6021175
DOL-1205-G15MQ
6032637
DOL-1208-G02MAH1
6032448
DOL-1208-G05MAH1
6032449
DOL-1208-G10MAH1
6032450
DOL-1608-G05MA
2026742
DOL-1608-G10MA
2027193
STL-1205-G05MQ
6026005
STL-1205-G10MQ
6026007
STL-1205-G15MQ
6036898
2016-03-17 13:18:11 | Online data sheet
Subject to change without notice
DISTANCE SENSORS | SICK
5
