CLT-146-03-F-D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CLT-146-03-F-D

Preview

CLT-146-03-F-D: DescriptionBoard Connector, 92 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size1000KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

CLT-146-03-F-D Overview

Board Connector, 92 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

CLT-146-03-F-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	E.L.P., TIGER CLAW CONTACT, LOW PROFILE
body width	0.157 inch
body length	3.622 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CLT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.064 mm
Plating thickness	FLASH inch
Rated current (signal)	4.1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.116 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	92
Evacuation force-minimum value	.1668 N
Base Number Matches	1

Preview

Download Datasheet

View All

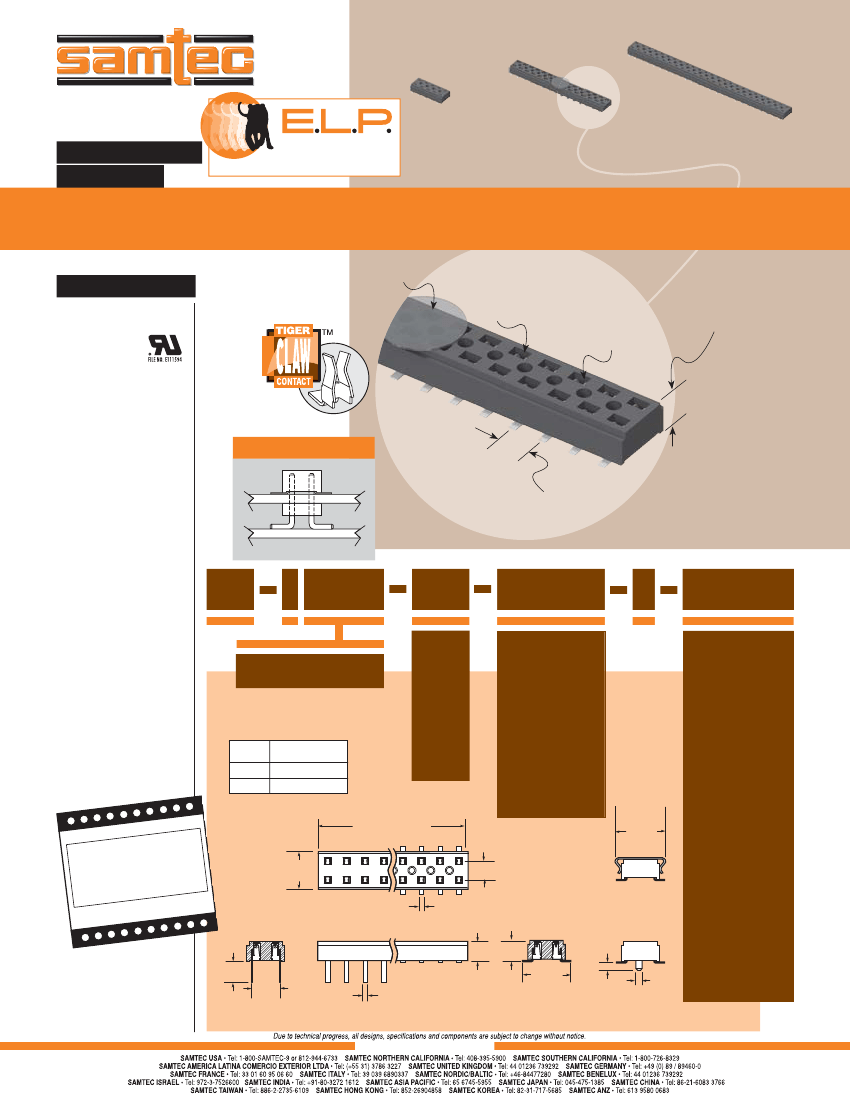

F-213

CLT–115–02–F–D–A–K–BE

TM

CLT–105–02–F–D

CLT–125–02–L–D

EXTENDED LIFE PRODUCT

(2,00 mm) .0787"

CLT SERIES

10 year Mixed Flowing Gas with 30µ" Gold

Call Samtec for maximum cycles

LOW PROFILE DUAL WIPE SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?CLT

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Current Rating:

3.3A per contact

@ 80°C ambient

(6 contacts powered)

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

10 mΩ

Insertion Depth:

Top Entry=

(1,40 mm) .055" minimum

Bottom Entry=

(2,57 mm) .101" minimum

(add board thickness for

correct post OAL)

Insertion Force:

(Single contact only)

1.8 oz (0,50 N) avg.

Withdrawal Force:

(Single contact only)

.6 oz (0,17 N) avg.

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Mates with:

TMM, TMMH,

MTMM, MMT,

TW, TSH

Available with optional

Pick & Place Pads

Tiger Claw

TM

contacts

Low proﬁle

(2,21 mm)

.087"

Suitable for

pass-through

applications

APPLICATION

(2,00 mm)

.0787" pitch

Pass-Thru

CLT

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

D

OTHER

OPTIONS

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (02-25)

(0,15 mm) .006" max (26-34)

(0,20 mm) .008" max (35-50)

LEAD

STYLE

–01

02 thru 50

= Through-

hole

–F

= Gold ﬂash

on contact,

Matte Tin on tail

All options require

Style –02

–02

= Surface

Mount

–BE

= Bottom Entry

(Required for bottom

entry applications)

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

A

(2,16) .085

(2,95) .116

–03

= Through-

hole

–01

–03

–G

= 10µ" (0,25 µm)

Gold on contact,

Gold ﬂash on tail

(5,08)

.200

x

(5,71)

.225

= Alignment Pin

(3 positions minimum)

Metal or plastic at

Samtec’s discretion

–A

EL A

TAPE & RE

g charges.

Y

VAILABILIT

(4,00)

.157

No. of positions x

(2,00) .0787

02

–K

= (5,00 mm) .197" DIA

Polyimide Film

Pick & Place Pad

(04 thru 50 only)

No toolin the lesser of

er is

Minimum ordntity or 125 pieces.

ua

a full reel q antity above minimum.

u

Order any q design, manufacture.

-house

In

round.

Quick turn-a

tions

for specifica

Call Samtecring information.

and orde

(2,00)

.0787

–P

(0,51)

.020

01

–P

= Pick & Place Pad

(4 positions minimum)

(Not always necessary

for auto placement.)

(2,13)

.084

(2,27)

.090

(0,81)

.032

(5,16)

.203

–02

–A

(0,64)

.025

DIA

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

A

(3,02)

.119

–01 or –03

(0,51)

.020

= Tape & Reel

Packaging

(36 positions max)

–TR

WWW.SAMTEC.COM
