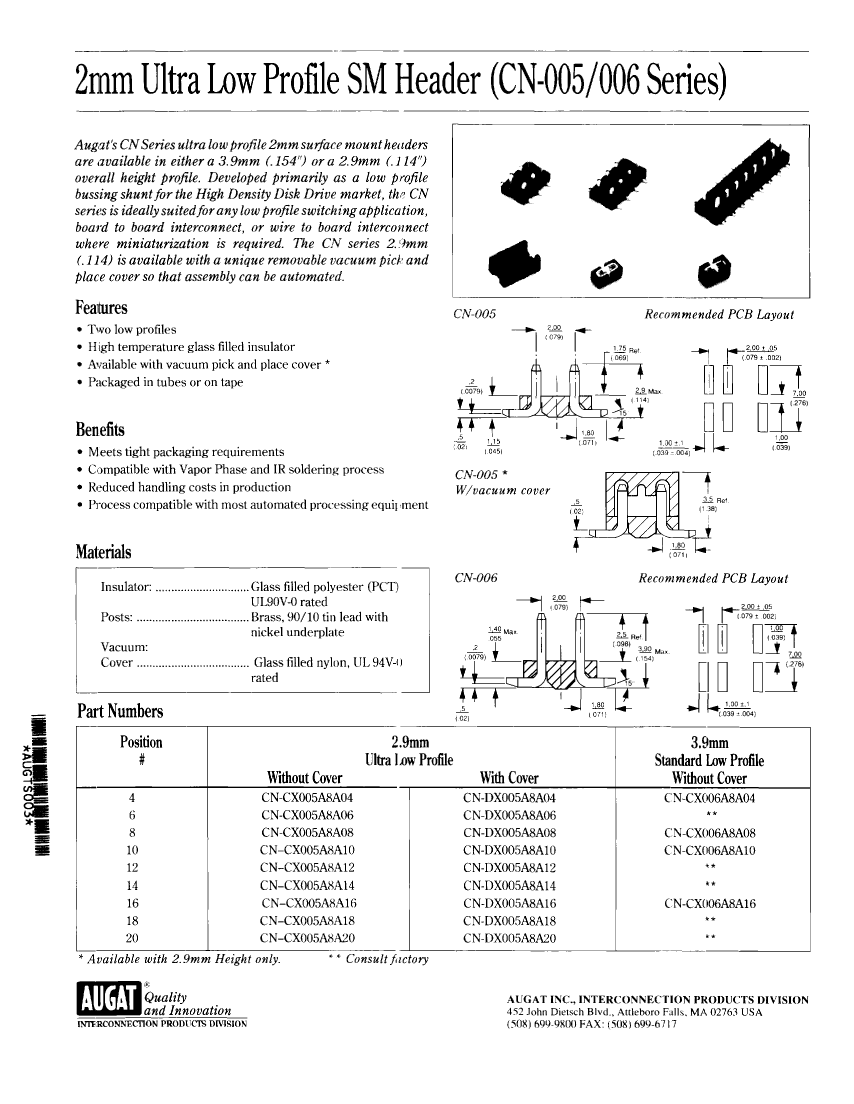

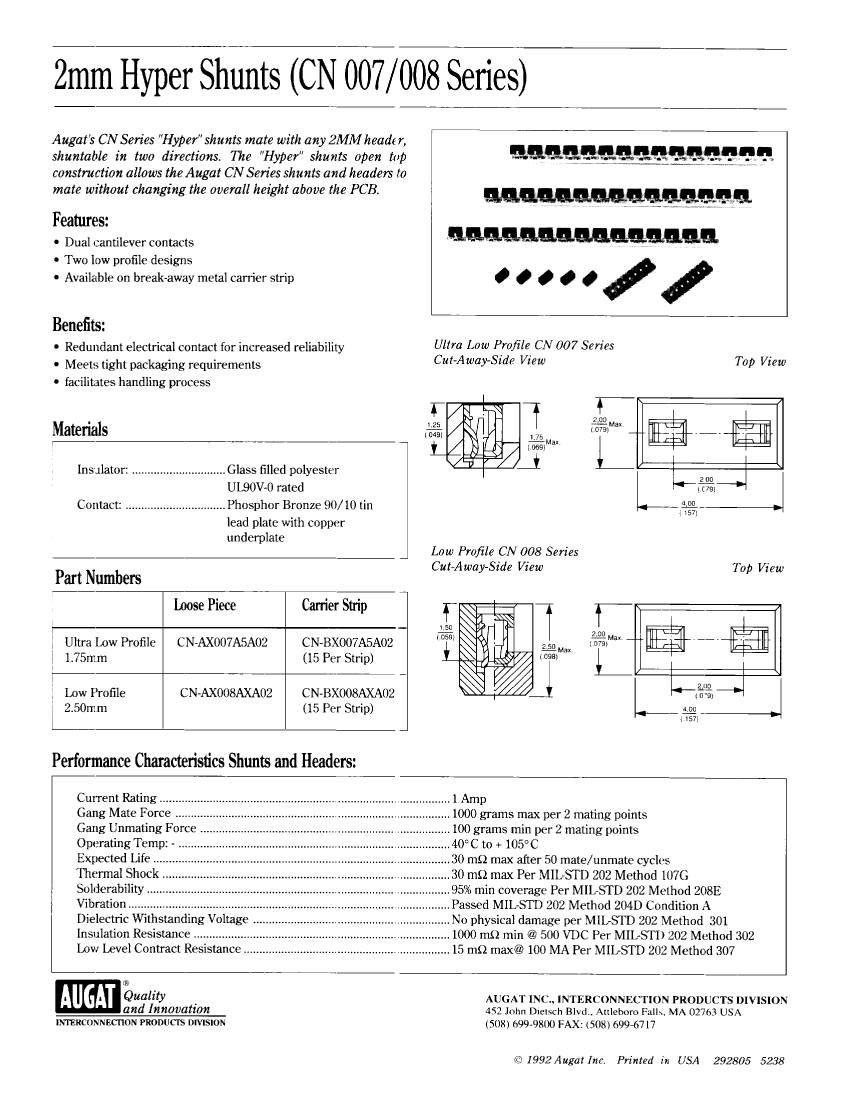

CN-CX005A8A20 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CN-005
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1
