IDT S
HROUDED
H
EADER
FEATURES
Mass-terminates with .050
[1.27]
center cable
Optional Latch Ejectors permit
easy removal of mating
socket with and without
strain relief.
Unique “Snap-in” design
does not require installation
tools or roll pins.
SPECIFICATIONS
ENVIRONMENTAL
Temperature Range: -55°C to
+120°C
MECHANICAL
Insulator Material:
Glass-filled polyester, gray,
UL94V-0
Latch Material:
Polycarbonate, gray,
UL94V-0
Contact Material: Phosphor
Bronze
Contact Plating:
Contact Area: 15µ IN gold
I.D. Area: 150µIN tin/lead
Recommended Wire Size:
28 AWG stranded
SHORT LATCH EJECTOR
CA-IDHLE-43 for IDS2 without strain relief
LONG LATCH EJECTOR
CA-IDHLE-57 for IDS2 with strain relief
No. of Positions
A
10*
10
20
26
34
40
50
60
.90
[22.9]

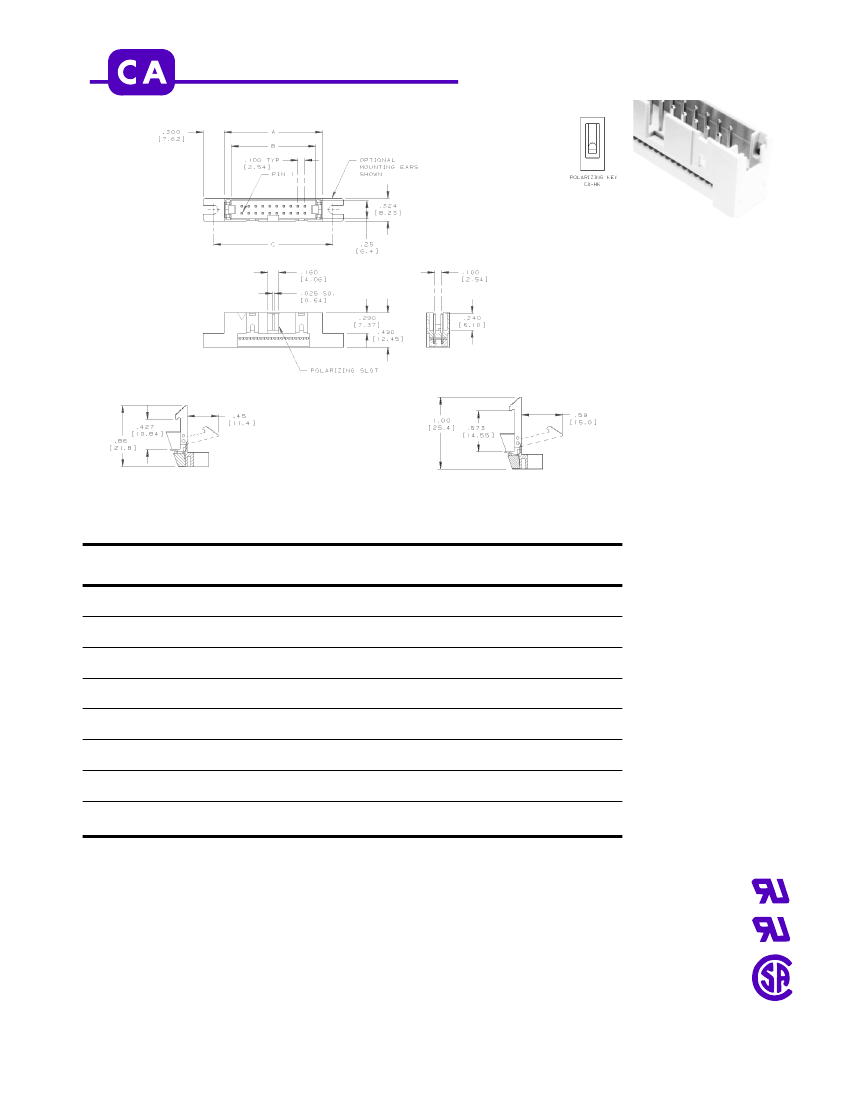

Dimensions
B
.700
[17.78]
Part Numbers
C
1.200
[30.48]
No Ears
CA-10IDH-3C
CA-10IDH-3C-SPT
CA-20IDH-3C
CA-26IDH-3C
CA-34IDH-3C
CA-40IDH-3C
CA-50IDH-3C
CA-60IDH-3C
With Ears
CA-10IDH-2C
CA-10IDH-2C-SPT
CA-20IDH-2C
CA-26IDH-2C
CA-34IDH-2C
CA-40IDH-2C
CA-50IDH-2C
CA-60IDH-2C
ELECTRICAL
Current Rating: 1 AMP
Dielectric Withstanding
Voltage: 500 Vrms MIN
Insulation Resistance:
> 5000 Megohms
Contact Resistance:
25 milliohms MAX mea-
sured through insulation dis-
placement portion and mat-
ing connector
.90
[22.9]
.700
[17.78]
1.200
[30.48]
1.40
[35.6]
1.200
[30.48]
1.700
[43.18]
1.70
[43.2]
1.500
[38.10]
2.000
[50.80]
2.10
[53.4]
1.900
[48.26]
2.400
[60.96]
2.40
[61.0]
2.200
[55.88]
2.700
[68.58]
NOTES
Optional latches are ordered
separately, to be installed
after cable to connector
assembly
2.90
[73.7]
2.700
[68.58]
3.200
[81.28]
3.40
[86.4]
3.200
[81.28]
3.700
[93.98]
* No Polarizing Slot
Consult Factory For Additional Options
MATING CA
PRODUCT
IDS2
®
REFERENCE DOCUMENTATION
