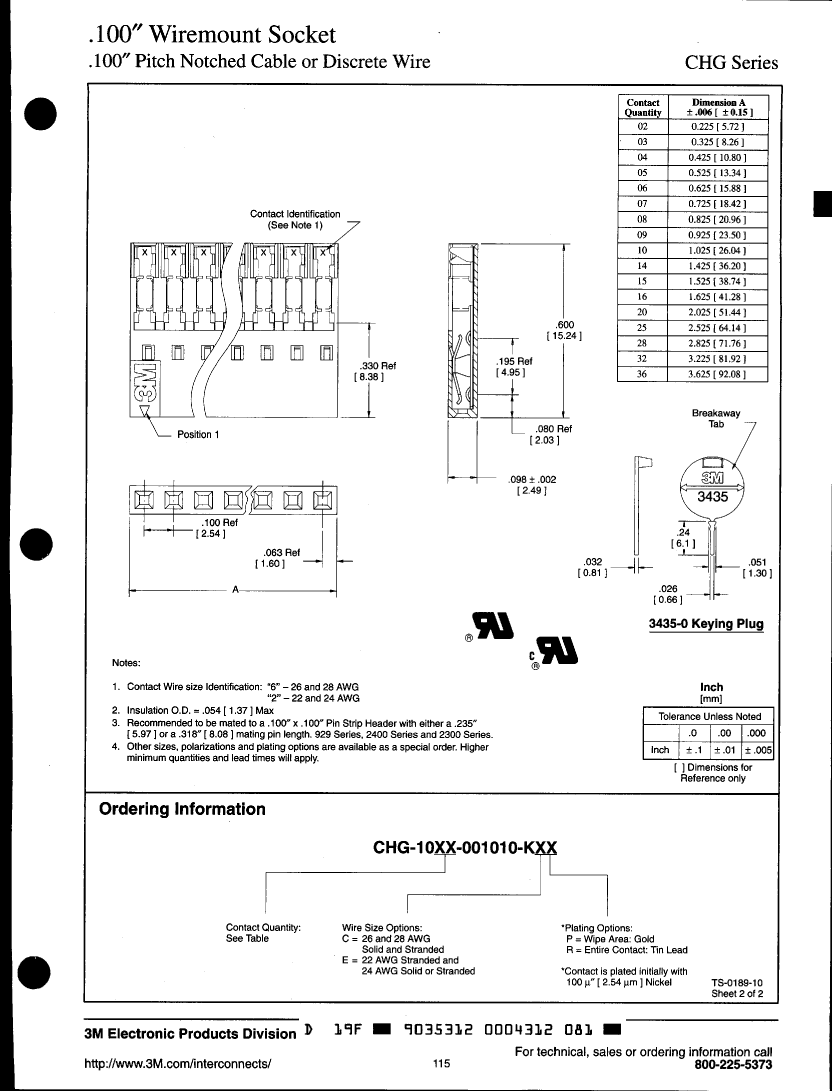

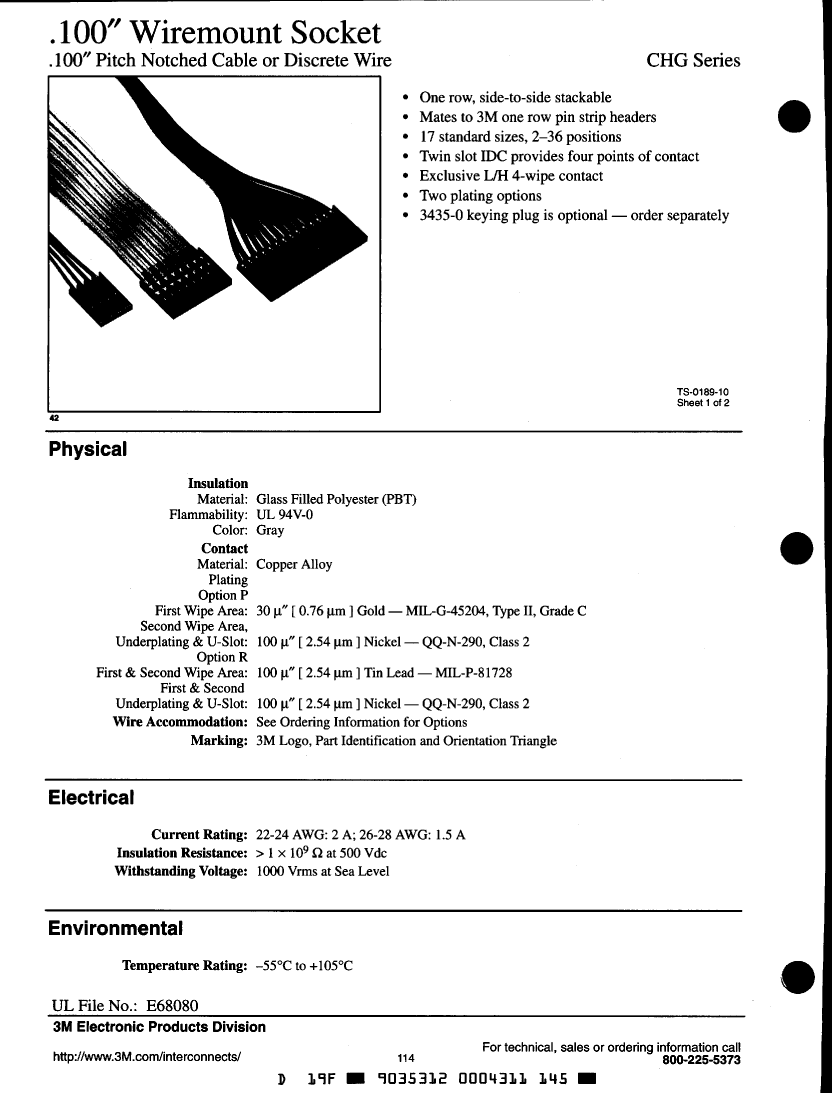

CHG-1015-001010-KCR datasheet, PDF

CHG-1015-001010-KCR: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,15 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY; CategoryThe connector The connector; File Size152KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

CHG-1015-001010-KCR Overview

HEADER CONNECTOR,CABLE MNT,PLUG,15 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY

Parameter Name	Attribute value
Objectid	300365511
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.2
body width	0.098 inch
subject depth	0.6 inch
body length	1.525 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	100u inch
Rated current (signal)	1.5 A
Guideline	UL
Termination type	IDC
Total number of contacts	15
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
