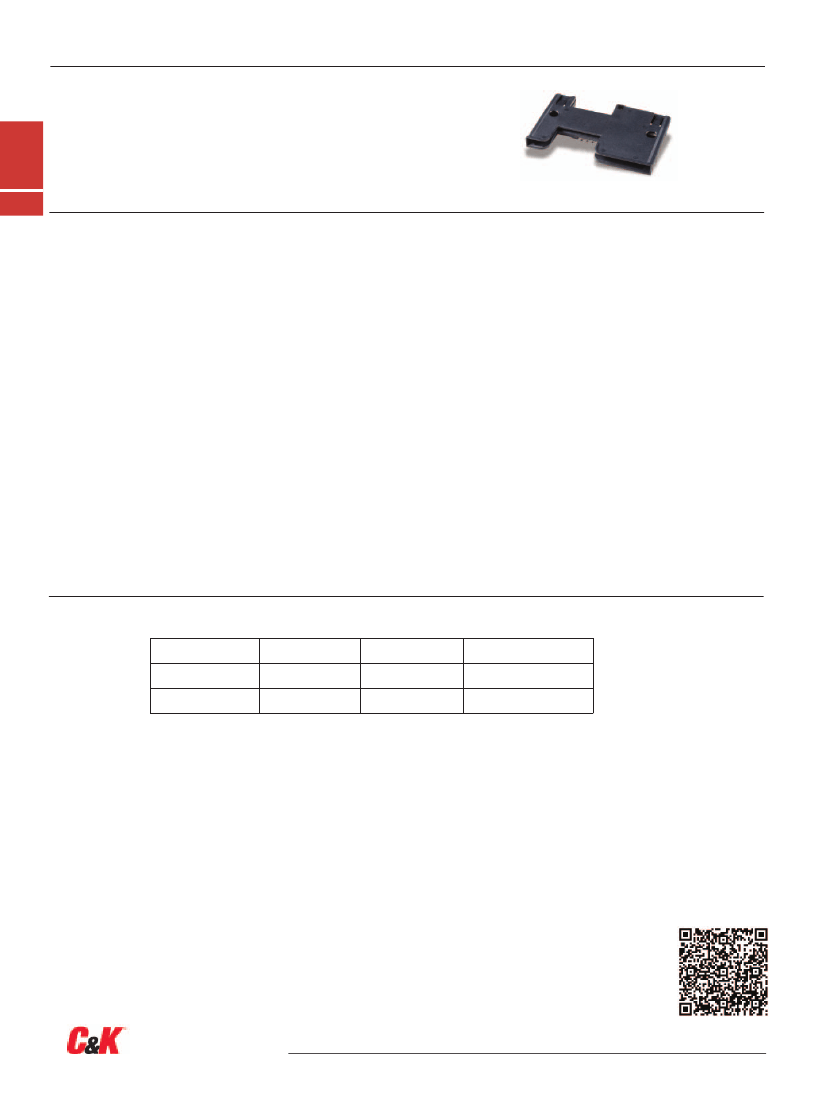

CCM01 Series
Features
•
Operating life up to 500,000 cycles
•
40N card insertion force
•
EMV
•
PCI ready
•
Card detection sealed switch
Typical Applications
•
Transaction
•
Identification
•
POS
Full Size
Mechanical
8
Up to 500,000 cycles
40N max.
1 N min / 10 N max
0,2N / 0,50 N max
0,8 N max for actuation (end travel switch
actuation force actuates when card is 0,9mm
from card stop)
1,8 N max for complete depression
Vibration Frequency
10 to 500 Hz. Acceleration 50m/s
2
Duration 6 hours - amplitude 0,35mm
Max elect. discontinuity 1µs
Shock
Peak value 500 m/s
2
– Duration 11 ms
3 shocks in each direction of each axis
Number of Contacts
Mechanical life
Card insertion force
Card extraction force
Contact force
Card detection switch
Contact Electrical Data
Insulation resistance
Resistance
Current rating
Dielectric strength
1,000 MΩ min
100 mΩ max
10 µA min / 1 A max
750 Vrms min
Switch Electrical Data
Card detection switch
Contact resistance
Dielectric strength
Current rating
Maximum power
Normally open
100 mΩ max
250 Vrms min
1 mA min / 10 mA max
0.2 VA
Environmental Data
Packaging
Tray 30 parts / Cartons 300 parts
Reel 200 parts / Cartons 1,000 parts
Operating temperature
Damp heat
Salt mist
Card detection switch
RoHS compliant
-40°C to +85°C
IEC 512 test number 11c (10 days)
IEC 512 test number 11f (96 hours)
Sealed against dust
Soldering
Compatible with lead free SMT reflow soldering process
Designation
CCM01-2027LFT
CCM01-2327LFT
Termination
SMT
SMT
Operating Life
100,000 cycles
500,000 cycles *
Card Insertion Force
40N
40N
* CCM01-2327: 500,000 cycles available Q4 2011
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ck-components.com
10
CCM01 Series

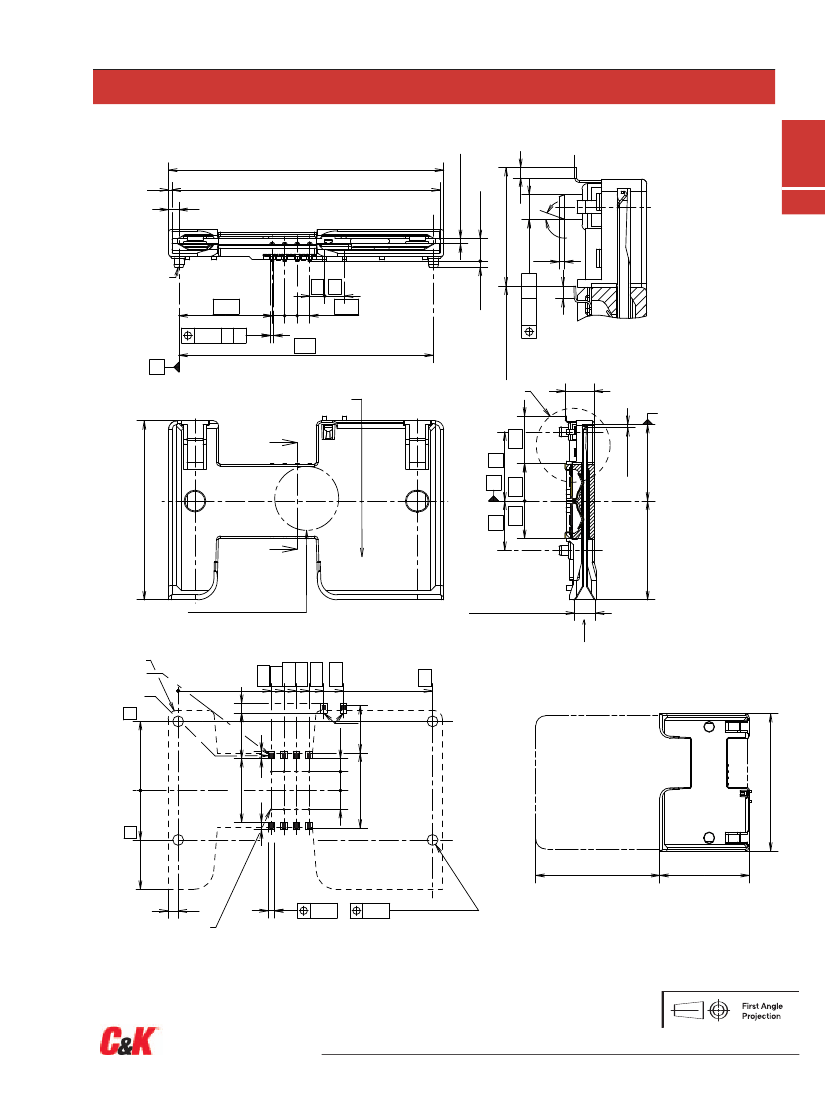

CCM01-2027 LFT
DETAIL A
Scale 5
55,7±0,1
0,7
2,1
54,3 Card entry
+0,05
1,05 -0,15 Card entry
4,55±0,2
(9,6)
0,85
ø 2±0,05
20˚
0,45
A
18,87
10x
0,3
A
B
0,7
51,5
A
(7,6)
0,1
2x
2,54
1,2±0,2
1
4 metal pegs
for 1,6 PCB
3
4
A-A
SEE DETAIL A
Designation & Date-Code area
Card stop
5,85
9,6
A
0,9±0,25
14
B
36,25
10
7,6
7,6
A
2027T
XX XX
Pick and place area ø 13
4,15±0,3 Card entry
Card insertion direction
RECOMMENDED PC BOARD LAYOUT
(Component side)
Plastic outline
Contact foot area
1 x 0,7
Pad
14
26,49
29,49
33,49
23,95
18,87
21,41
SW
SW
2
C1 C2 C3 C4
Card end travel
switch terminals
0,85 x 0,7
9,6
51,5
0
20
15,5
Scale 1
9,2
1,5
8x
(2,64)
12,9
1,5
3,81
15,2
0
3,81
10
C5 C6 C7 C8
(50,2)
20
2,1
Contact location according to
ISO/IEC 7816-2
1,3
10x
0,2
4x
ø 0,1
Metallized
holes
ø 2,2
(36,25)
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ck-components.com
11
(55,7)
Full Size
2027T
XX XX
B
PCB Design
