CHG-2040-001010-KER datasheet, PDF

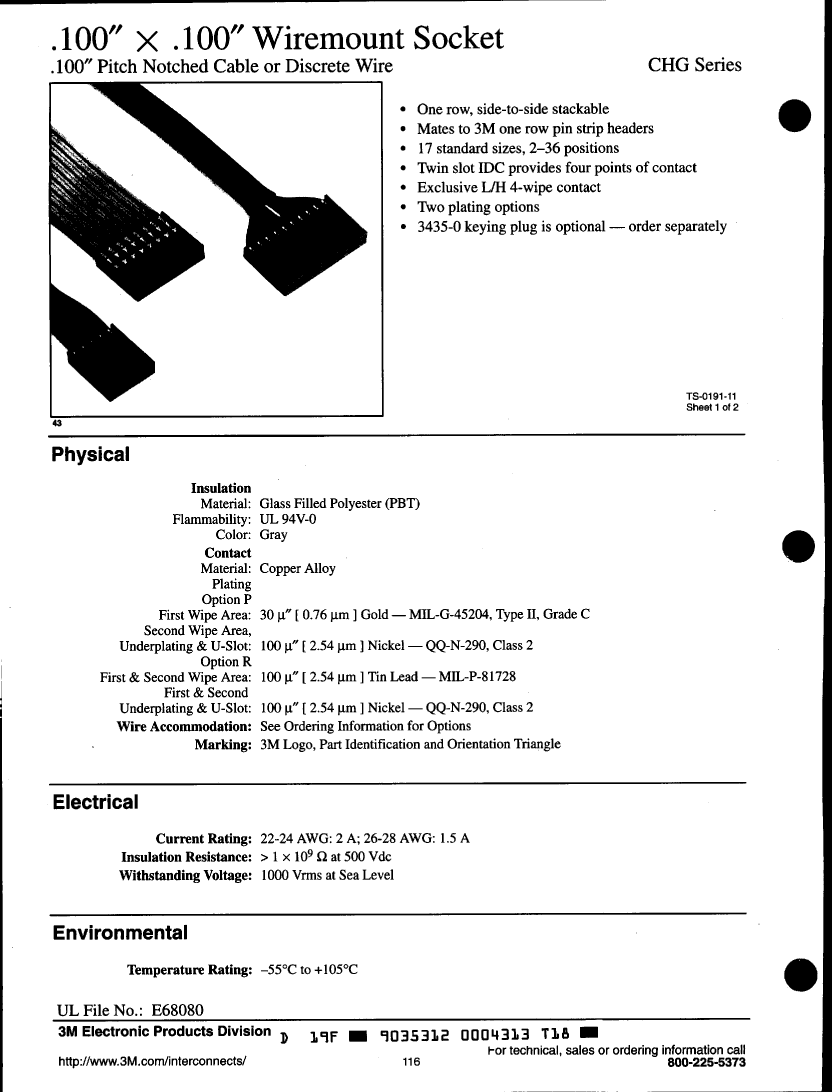

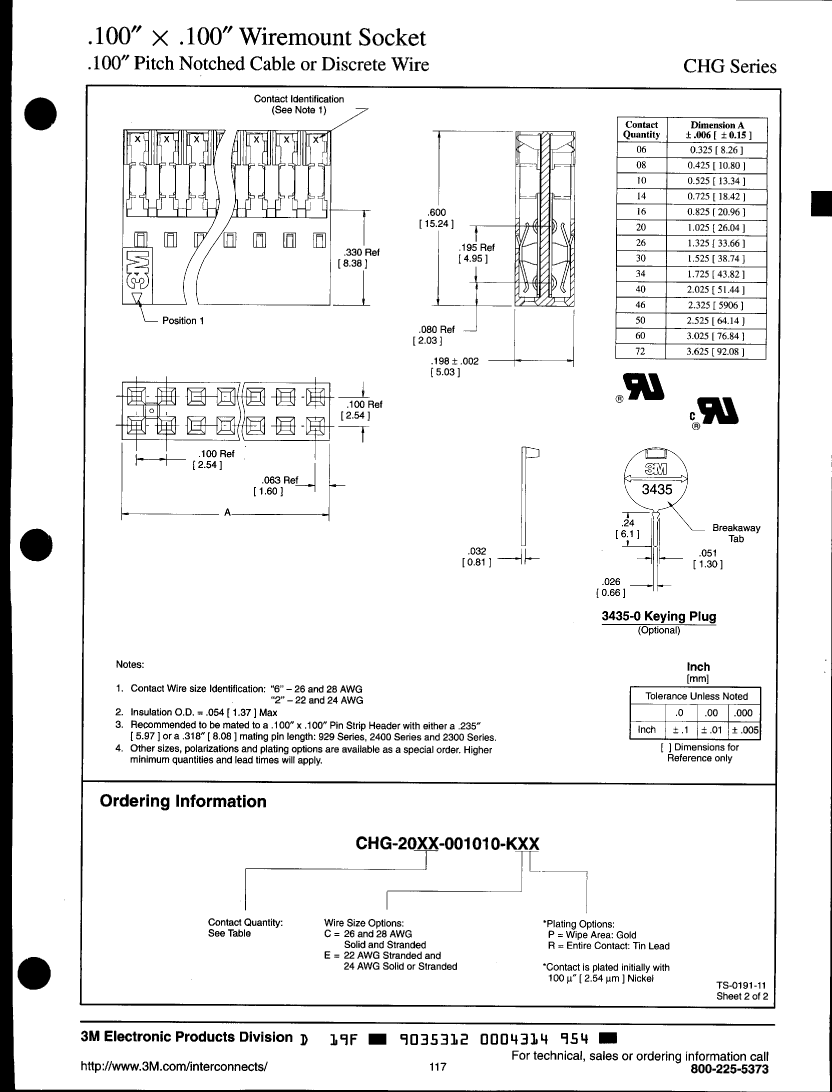

CHG-2040-001010-KER: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,40 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY; CategoryThe connector The connector; File Size153KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

CHG-2040-001010-KER Overview

HEADER CONNECTOR,CABLE MNT,PLUG,40 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.198 inch
subject depth	0.6 inch
body length	2.025 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	CHG
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	100u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	40
Maximum wire diameter	22 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1
