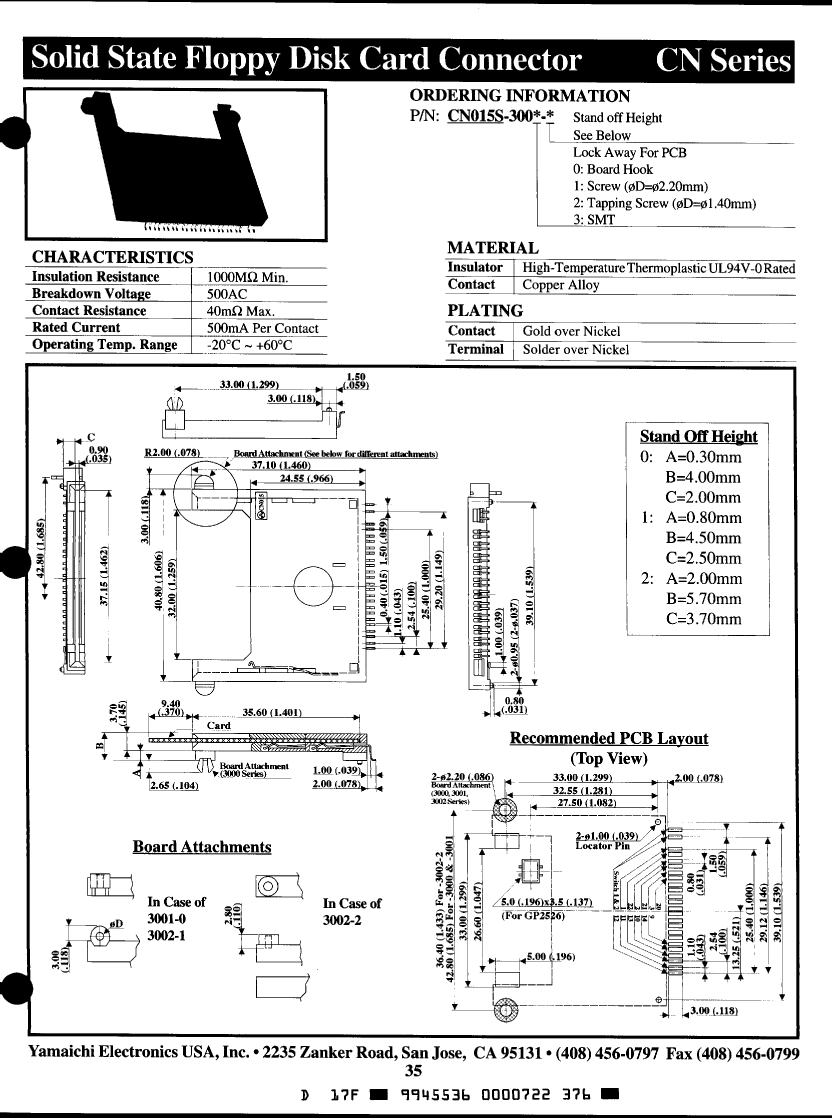

CN015S-3000-0: DescriptionPCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

CN015S-3000-0 Overview

PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug

CN015S-3000-0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	FLOPPY DISK CARD CONNECTOR
Board mount options	SPLIT BOARD LOCK
body width	0.157 inch
subject depth	1.46 inch
body length	1.843 inch
Body/casing type	PLUG
Connector type	PCMCIA CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	CN
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

CN015S-3000-0 Related Products

	CN015S-3000-0	CN015S-3001-1	CN015S-3001-2	CN015S-3003-2	CN015S-3003-1	CN015S-3002-2	CN015S-3002-1	CN015S-3000-2
Description	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug	PCMCIA Connector, 24 Contact(s), 1 Row(s), Female, Straight, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	FLOPPY DISK CARD CONNECTOR	FLOPPY DISK CARD CONNECTOR	FLOPPY DISK CARD CONNECTOR	FLOPPY DISK CARD CONNECTOR	FLOPPY DISK CARD CONNECTOR	FLOPPY DISK CARD CONNECTOR	FLOPPY DISK CARD CONNECTOR	FLOPPY DISK CARD CONNECTOR
body width	0.157 inch	0.177 inch	0.224 inch	0.224 inch	0.177 inch	0.224 inch	0.177 inch	0.224 inch
subject depth	1.46 inch	1.46 inch	1.46 inch	1.46 inch	1.46 inch	1.46 inch	1.46 inch	1.46 inch
body length	1.843 inch	1.843 inch	1.843 inch	1.843 inch	1.843 inch	1.843 inch	1.843 inch	1.843 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	CN	CN	CN	CN	CN	CN	CN	CN
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	24	24	24	24	24	24	24	24
Base Number Matches	1	1	1	1	1	1	1	1
Board mount options	SPLIT BOARD LOCK	HOLE .086-.098	HOLE .086-.098	-	-	HOLE .055-.063	HOLE .055-.063	SPLIT BOARD LOCK
