CB6R37P07 datasheet, PDF - EEWORLD Datasheet

CB6R37P07: DescriptionD Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, #2-56, Receptacle; CategoryThe connector The connector; File Size266KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

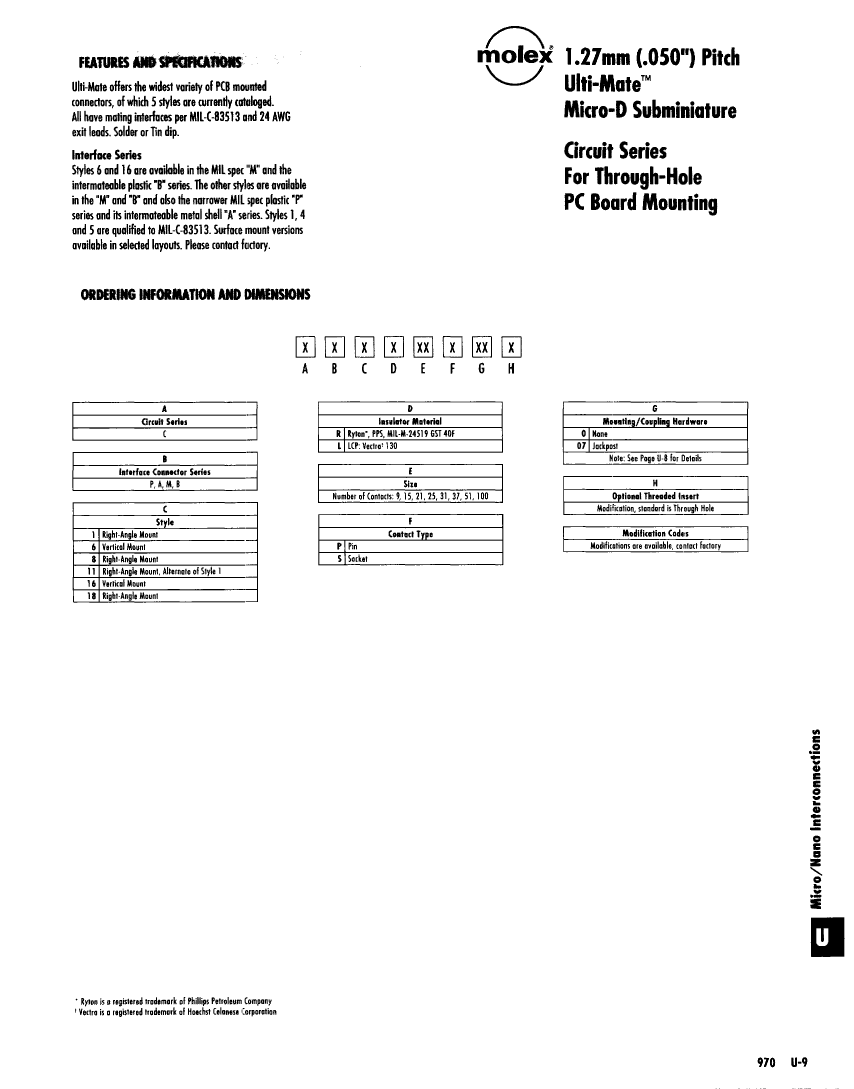

CB6R37P07 Overview

D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, #2-56, Receptacle

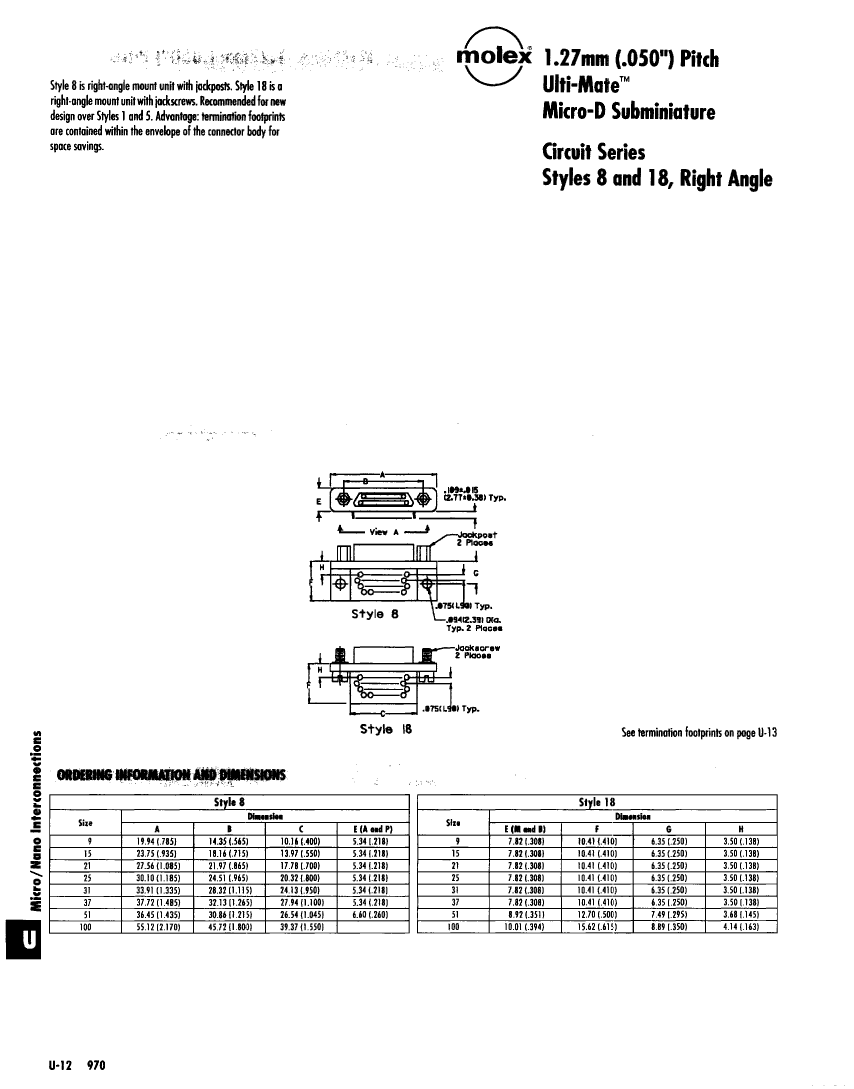

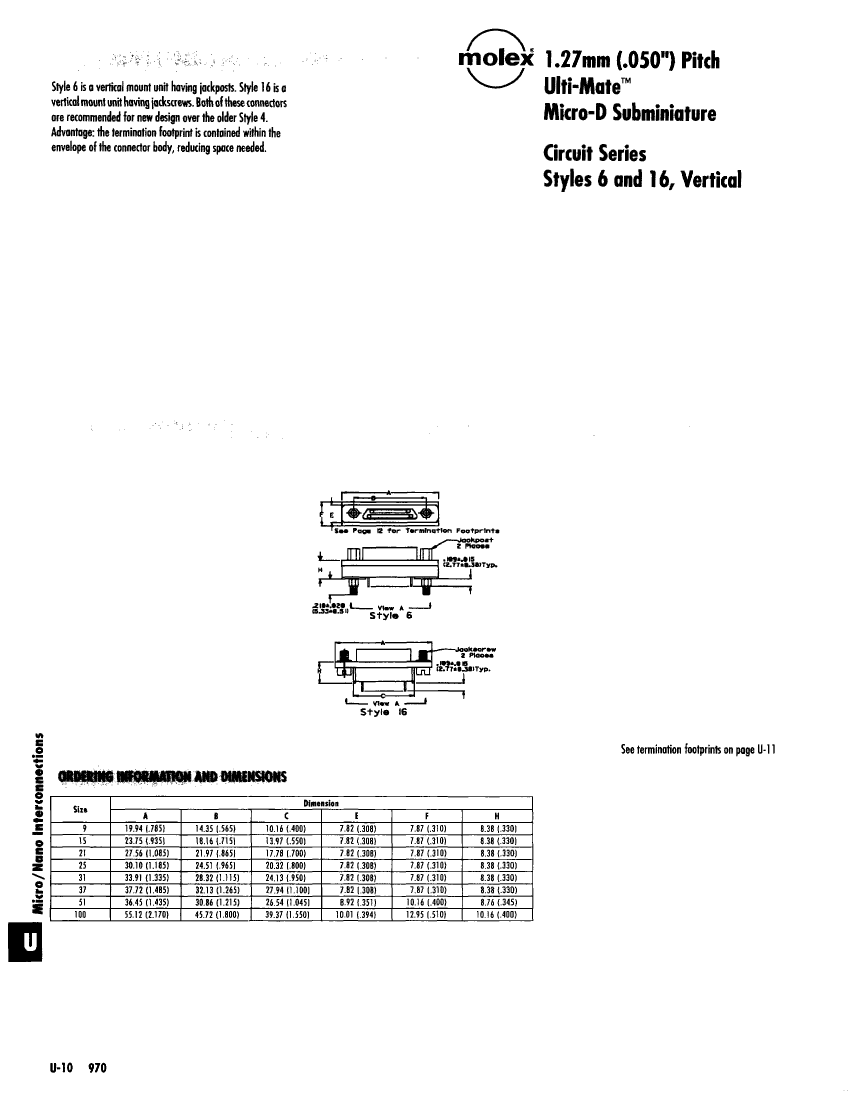

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ULTI-MATE
body width	0.31 inch
subject depth	0.33 inch
body length	1.485 inch
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	900VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	RYTON
MIL compliance	NO
Manufacturer's serial number	CB
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	JACKPOST
Installation method	STRAIGHT
Installation type	BOARD

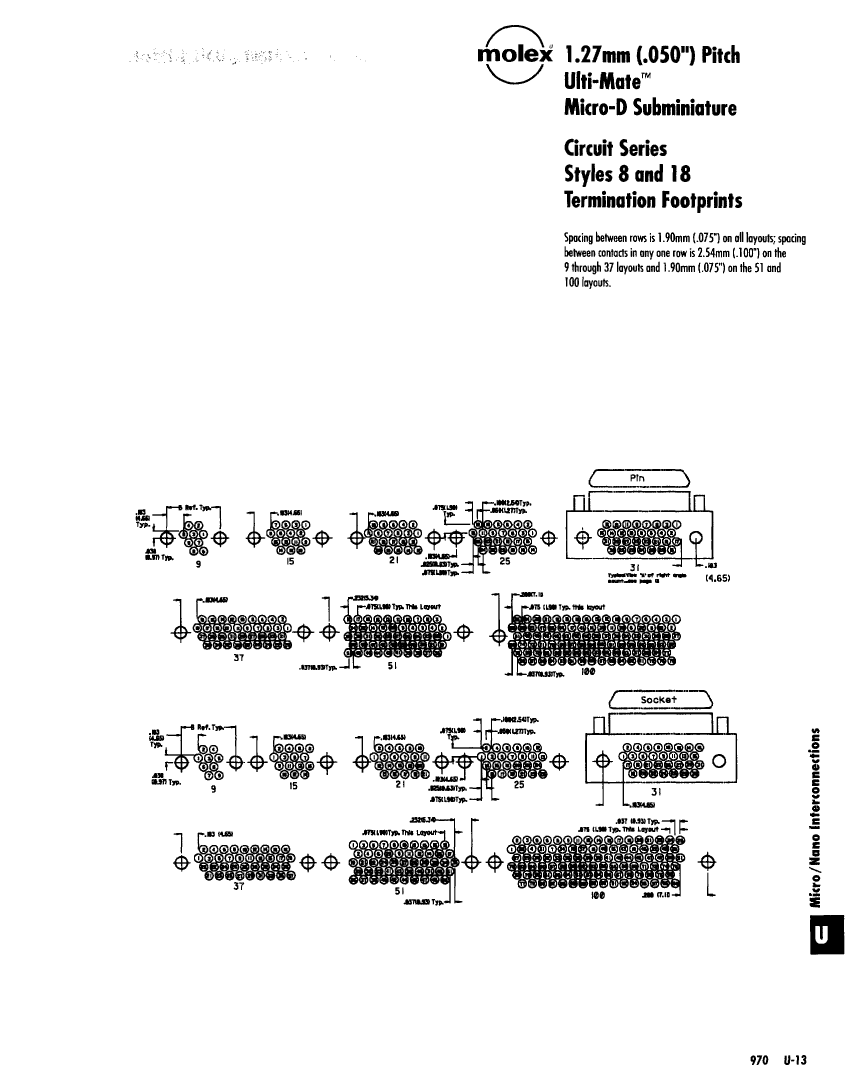

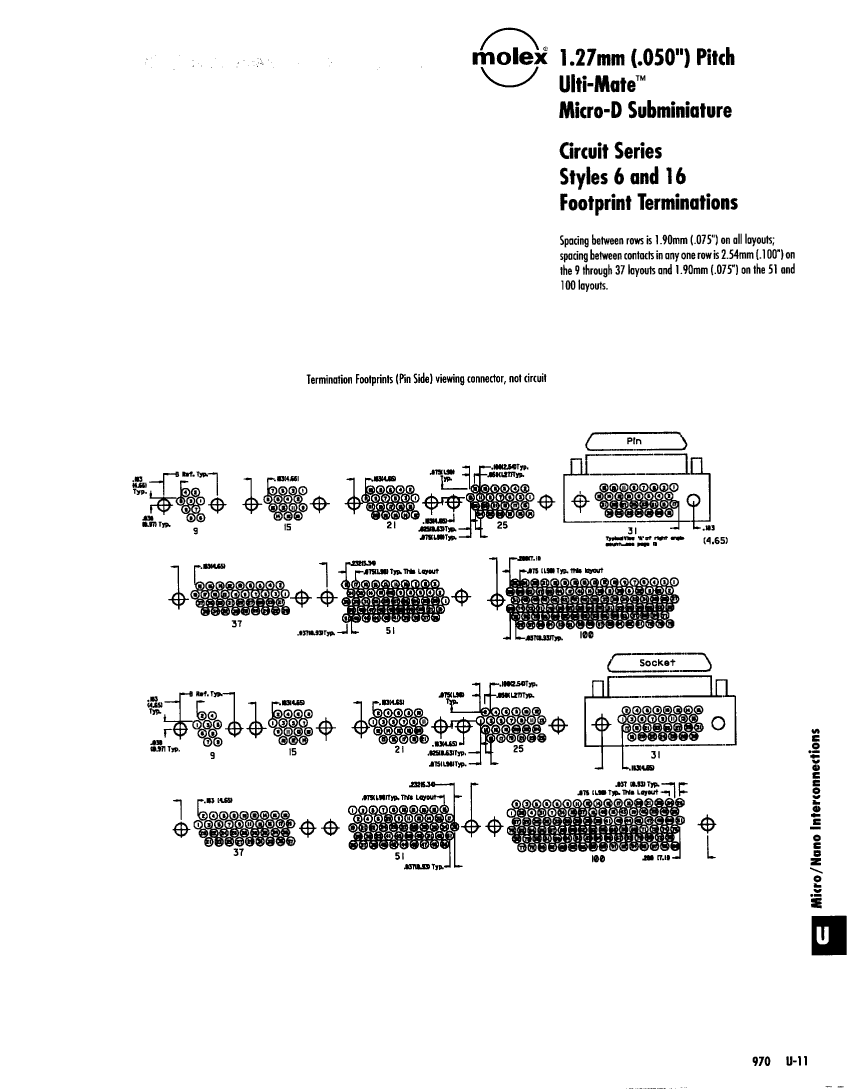

PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	50u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell material	PLASTIC
Housing size	F
Terminal length	0.109 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	37
Evacuation force-minimum value	.834 N
Base Number Matches	1
