CN10-PL-F-25DV: DescriptionRF Connector, Female, Cable Mount, Plug; CategoryThe connector The connector; File Size310KB，4 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

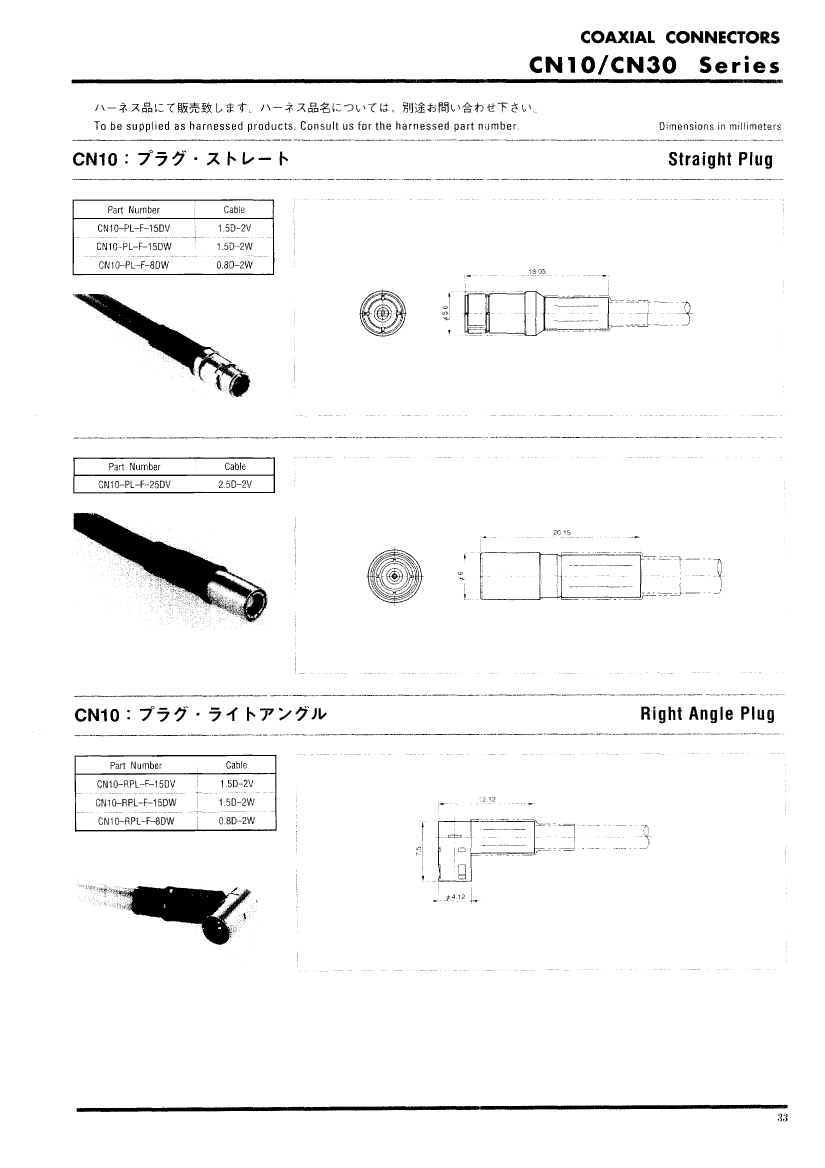

CN10-PL-F-25DV Overview

RF Connector, Female, Cable Mount, Plug

CN10-PL-F-25DV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	3 GHz
Panel mounting	NO
voltage standing wave ratio	1.2
Base Number Matches	1

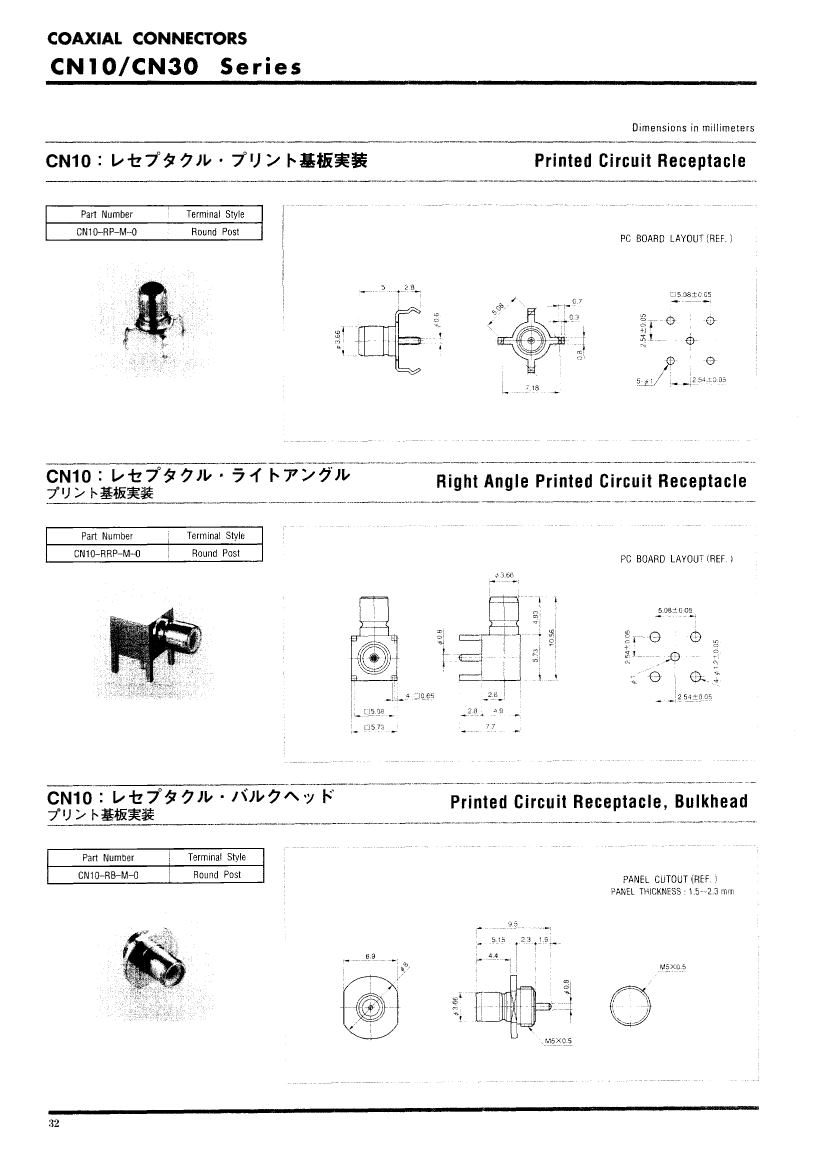

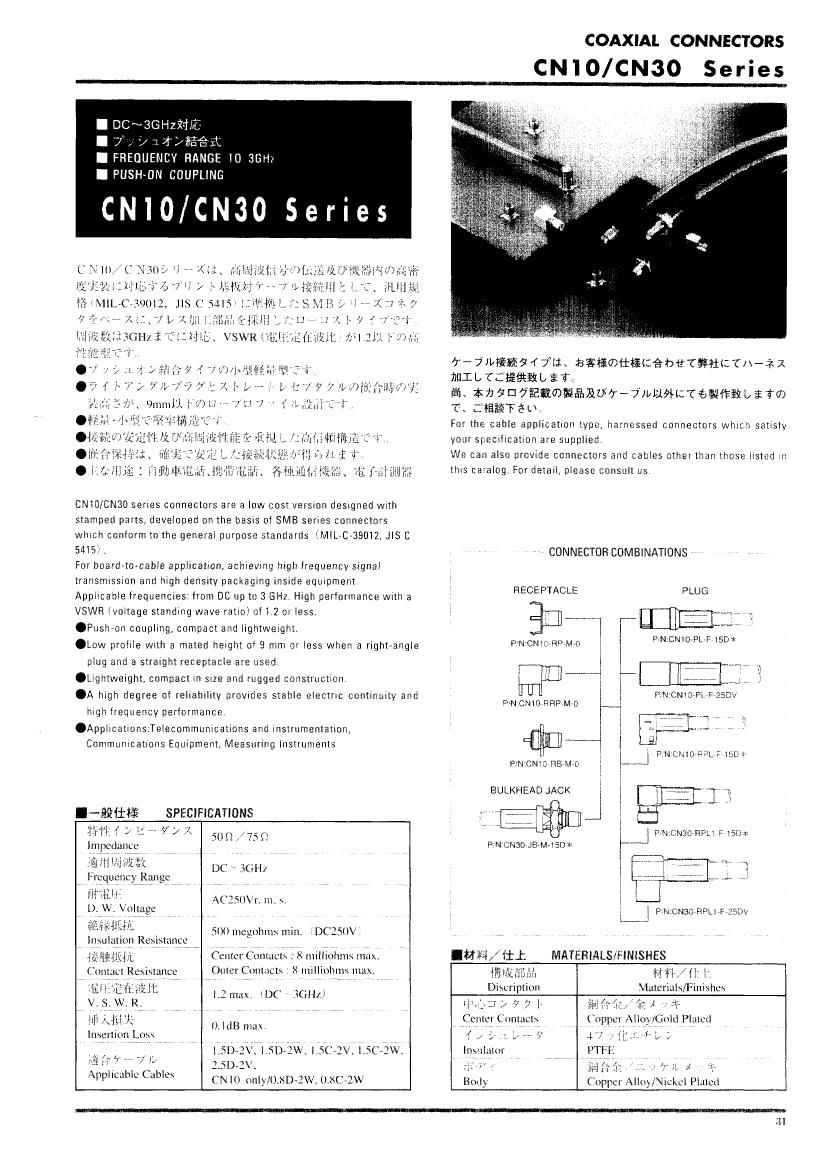

Preview

Download Datasheet

View All

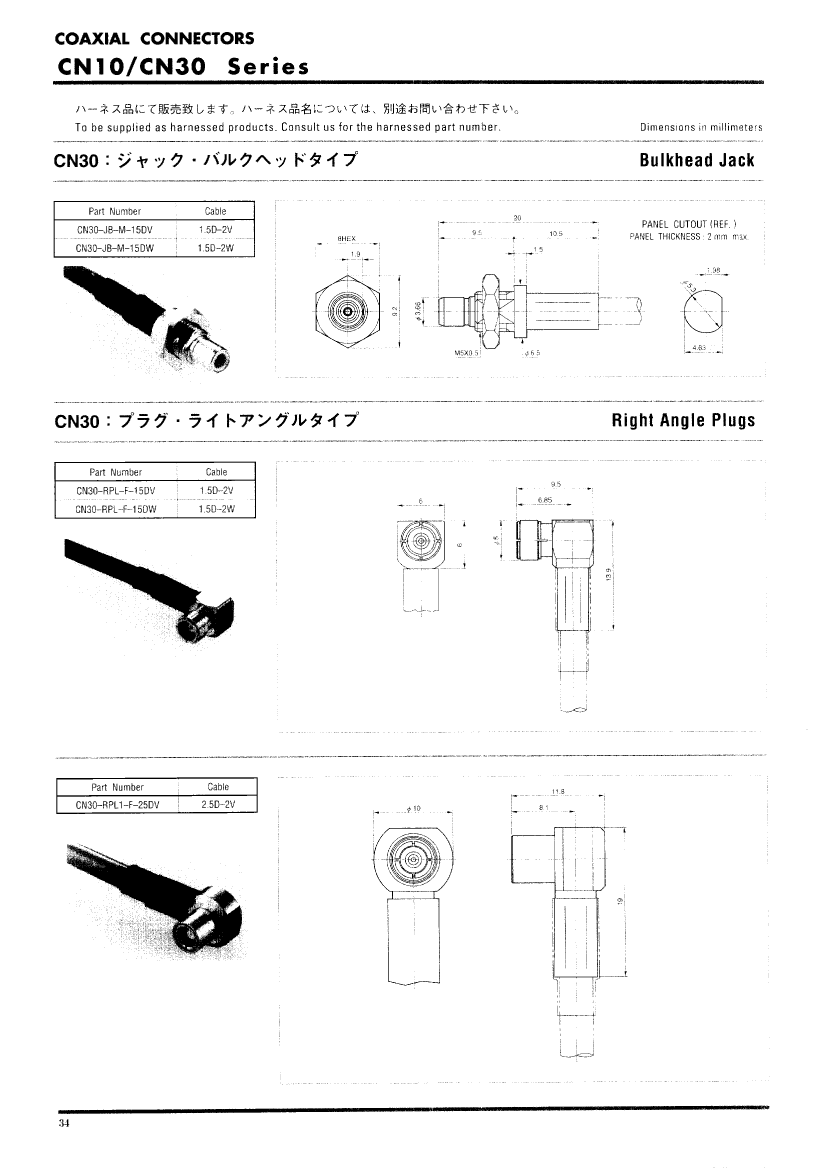

CN10-PL-F-25DV Related Products

	CN10-PL-F-25DV	CN30-JB-M-15DV	CN30-RPL-F-15DW	CN10-PL-F-15DV	CN10-PL-F-15DW	CN10-PL-F-8DW
Description	RF Connector, Female, Cable Mount, Plug	RF Connector, Female, Panel Mount, Cable Mount, Jack	RF Connector, Female, Cable Mount, Plug	RF Connector, Male, Cable Mount, Plug	RF Connector, Male, Cable Mount, Plug	RF Connector, Male, Cable Mount, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Body/casing type	PLUG	JACK	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	75 Ω	75 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz
Panel mounting	NO	YES	NO	NO	NO	NO
voltage standing wave ratio	1.2	1.2	1.2	1.2	1.2	1.2
Base Number Matches	1	1	1	1	1	1
Manufacturer's serial number	-	CN30	CN30	CN10	CN10	-
