CSM5Z-A1B2C2150-FREQDS

Description
Series - Fundamental Quartz Crystal, 5MHz Min, 5.999MHz Max
CategoryPassive components    Crystal/resonator
File Size53KB,1 Pages
ManufacturerCardinal Components
Environmental Compliance
Download Datasheet Parametric View All

CSM5Z-A1B2C2150-FREQDS Overview

Series - Fundamental Quartz Crystal, 5MHz Min, 5.999MHz Max

CSM5Z-A1B2C2150-FREQDS Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresAT-CUT CRYSTAL
Ageing5 PPM/YEAR
Crystal/Resonator TypeSERIES - FUNDAMENTAL
Drive level1000 µW
frequency stability0.005%
frequency tolerance50 ppm
JESD-609 codee3
Manufacturer's serial numberCSM5
Installation featuresSURFACE MOUNT
Maximum operating frequency5.999 MHz
Minimum operating frequency5 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
physical sizeL12.9XB4.7XH3.2 (mm)
Series resistance120 Ω
surface mountYES
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Base Number Matches1

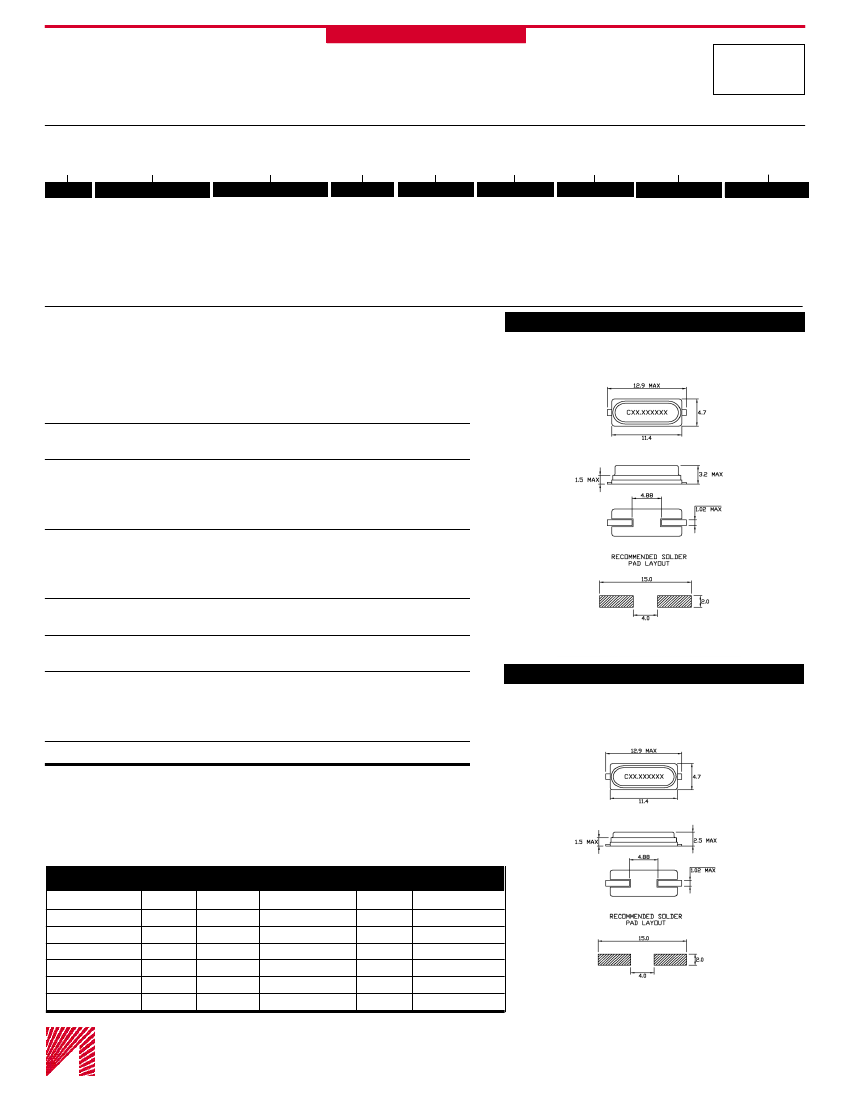

CARDINAL COMPONENTS
Low Profile Surface Mount Crystals
• 3.0 mm Maximum SMD profile
• Very cost competitive
• Fast delivery
Series CSM4
CSM5
Part Numbering Example: CSM4 Z - A1 B2 C2 200 - 3.579545 D18 - 3
CSM4
Z
A1*
OPERATING TEMP.
A0 = -10°C ~ +60°C
A1 = -10°C ~ +70°C
A2 = -40°C ~ +85°C
A3 = -55°C ~ +125°C
B2
C2
200
3.579545
D18
-3
SERIES ADDED FEATURES
CSM4 BLANK = BULK PACK
CSM5 Z = TAPE AND REEL
STABILITY TOLERANCE RESISTANCE FREQUENCY
LOAD CAP.
OVERTONE
BLANK: FUND.
B1 = ±100
SEE CHART
C1 = ±100
D16,18,20,ETC.
-3: 3rd OT
B2 = ± 50
BELOW
C2 = ± 50
DS = SERIES
-5: 5th OT
B3 = ± 30
C3 = ± 30
-7: 7th OT
B4 = ± 10
C4 = ± 10
-BT: BT Cut
*NOTE:
The above ABC combinations cover basic specification options. We tailor our crystal specifications
to meet customer requirements. Please contact our sales department if you don’t see exactly what you need.
Specifications:
Frequency Range:
3.579545 ~ 38.000 MHz
25.000000 ~ 75.000 MHz
26.000000 ~ 48.000 MHz
Operating Temperature:
-10°C ~ +70°C
-40°C ~ +85°C
Frequency Stability:
±100
± 50
± 30
± 15
±100
±50
±30
±10
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
AT Cut Fundamental
AT Cut 3rd Overtone
BT Cut Fundamental
CSM4
Standard
Standard
Frequency Tolerance:
(at 25°C)
Standard
Load Capacitance:
Standard 18 pF or series.
Please specify your required load.
Resistance:
Standard:
Maximum resistance corresponds to frequency.
See chart below.
Mode: Fundamental or 3rd Overtone
Shunt Capacitance: 7 pF Max
Aging: ± 5 ppm/year
Drive Level: 1.0 mW Max
CSM5
Optional Features:
Tape and Reel (1K per Reel)
Note:
Not all combinations of the above tolerances, stabilities, and temperature
ranges are available. Consult the factory if your requirement is not standard.
Resistance Chart:
All resistances are maximum
values.
EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT
Frequency MHz
3.579545~4.999
5.000~5.999
6.000~7.999
8.000~8.999
9.000~9.999
10.000~14.999
ESR(Ω)
200 Max
150 Max
120 Max
90 Max
80 Max
70 Max
Mode/cut
Fund./AT
Fund./AT
Fund./AT
Fund./AT
Fund./AT
Fund./AT
Frequency MHz
15.000~15.999
16.000~23.999
24.000~30.000
24.000~48.000
24.576~29.999
30.000~75.000
ESR (Ω)
60 Max
50 Max
40 Max
40 Max
150 Max
100 Max
Mode/cut
Fund./AT
Fund./AT
Fund./AT
Fund./BT
3rd Overtone/AT
3rd Overtone/AT
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
