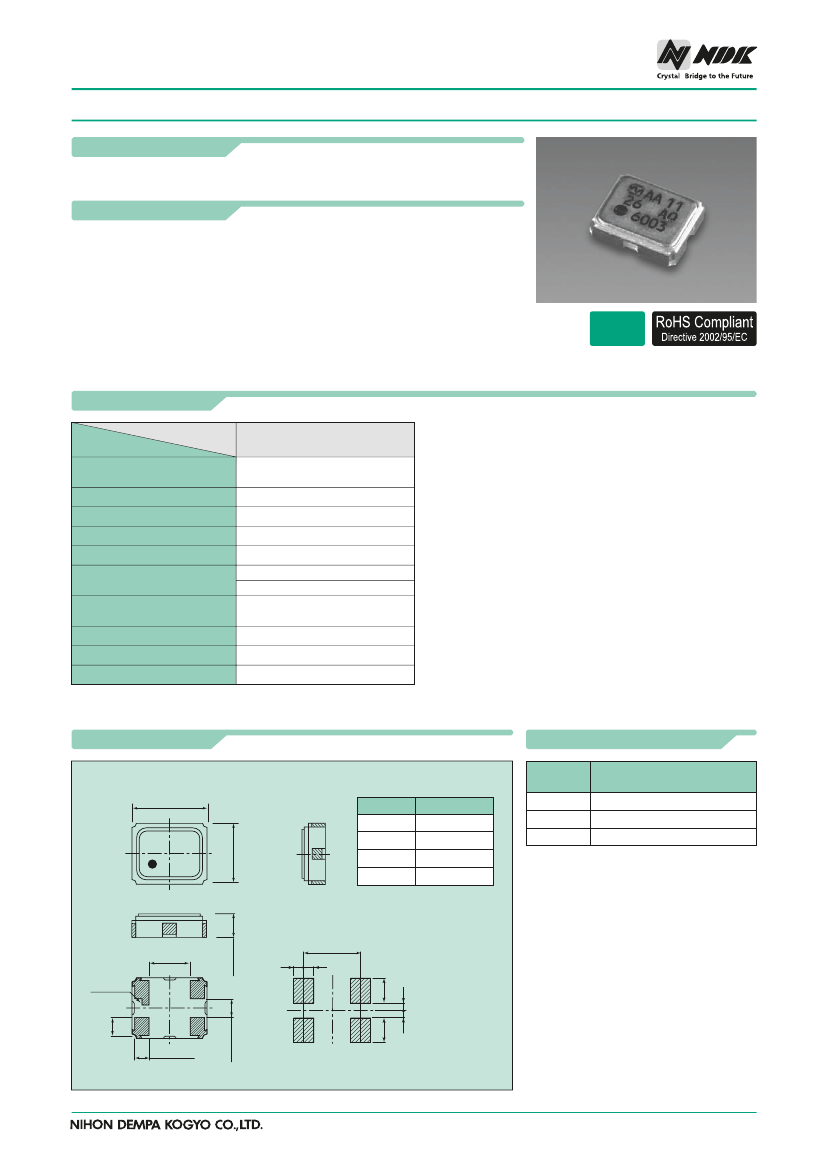

Crystal Oscillator
Model Name NT2520SA
Temperature-Compensated Crystal Oscillator with AFC Function (VC-TCXO) NT2520S Series
n
Main Application
For mobile phones, etc.
n
Features
l
Supports low power supply voltage. (Supports DC +2.4±0.1 V to +3.4 V±5%.)
l
Ultra-compact and light with a height, cubic volume, and weight of 0.8 mm max.,
0.0035 cm
3
, and 0.013 g, respectively.
l
With an AFC (Automatic Frequency Control) function.
l
Low power consumption.
l
A surface-mount crystal oscillator. (Reflow soldering is possible.)
l
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
Pb
Free
n
Specifications
Model
Item
Standard nominal
frequency (MHz)
Power supply voltage
Load
Consumption current
Output level
Frequency / temperature
characteristic
Power supply variation
characteristics
Load variation characteristics
Aging
Frequency control characteristics
NT2520SA
13 to 26MHz
+2.8V DC
10kΩ//10pF
1.5mA max
0.8V(P-P) min (DC superimposition *1)
±2.5×10
–6
max
–30 to +75°C
±0.2×10
–6
max/+2.8V±5%
±0.2×10 max /(10kΩ//10pF)±10%
±1.0×10
–6
max/year
±9.0×10
–6
to ±15.0×10
–6
/+1.4V±1V *2
–6
• Frequency setting conditions
1. Frequencies are set at normal temperatures (+25±2°C).
2. Frequencies are set with a printed board that has a
ground pattern attached to the underside of an oscillator.
• If you require a product with a different frequency, power
supply voltage, frequency control characteristic, etc. to the
standard specifications, please contact us with your
enquiries.
• Products with the AFC (Automatic Frequency Control)
function are available. If you require such a product, please
contact us.
*1. A DC-cut capacitor is not embedded in this crystal
oscillator. Connect a DC-cut capacitor (1,000 pF) to the
line-out terminal of the oscillator.
*2. This is a representative specification. The specifications
may change according to the frequency that you request.
n
Dimensions
mm
2.5±0.2
#4
#3
2.0±0.2
n
List of Ordering Codes
Frequency
(MHz)
13
19.2
26
Ordering Code
NT2520SA-13M-NSA3400B
NT2520SA-19.2M-NSA3400B
NT2520SA-26M-NSA3400B
PAD No.
#1
#2
#3
#4
Connection
VCONT
GND
OUTPUT
V
CC
#1
#2
The above frequencies are NDK’ s standard frequencies.
Frequencies other than the above are available.
Feel free to contact our sales representatives.
Reference land pattern
1.45±0.2
#1
(0.2×0.2)
#2
0.7±0.1
2.1
0.375
0.375
0.275
0.275
0.9
#4
0.45±0.1
#3
0.65±0.2
0.9
0.6±0.1
co09_071108_NT2520SA_e1
