NT805-956: DescriptionQuad Ports 10/100 Base-TX High Speed LAN Magnetic Modules; File Size411KB，7 Pages; ManufacturerDATATRONICS; Websitehttp://www.datatronics.com/

Download Datasheet View All

NT805-956 Overview

Quad Ports 10/100 Base-TX High Speed LAN Magnetic Modules

Preview

Download Datasheet

View All

April 21, 2008

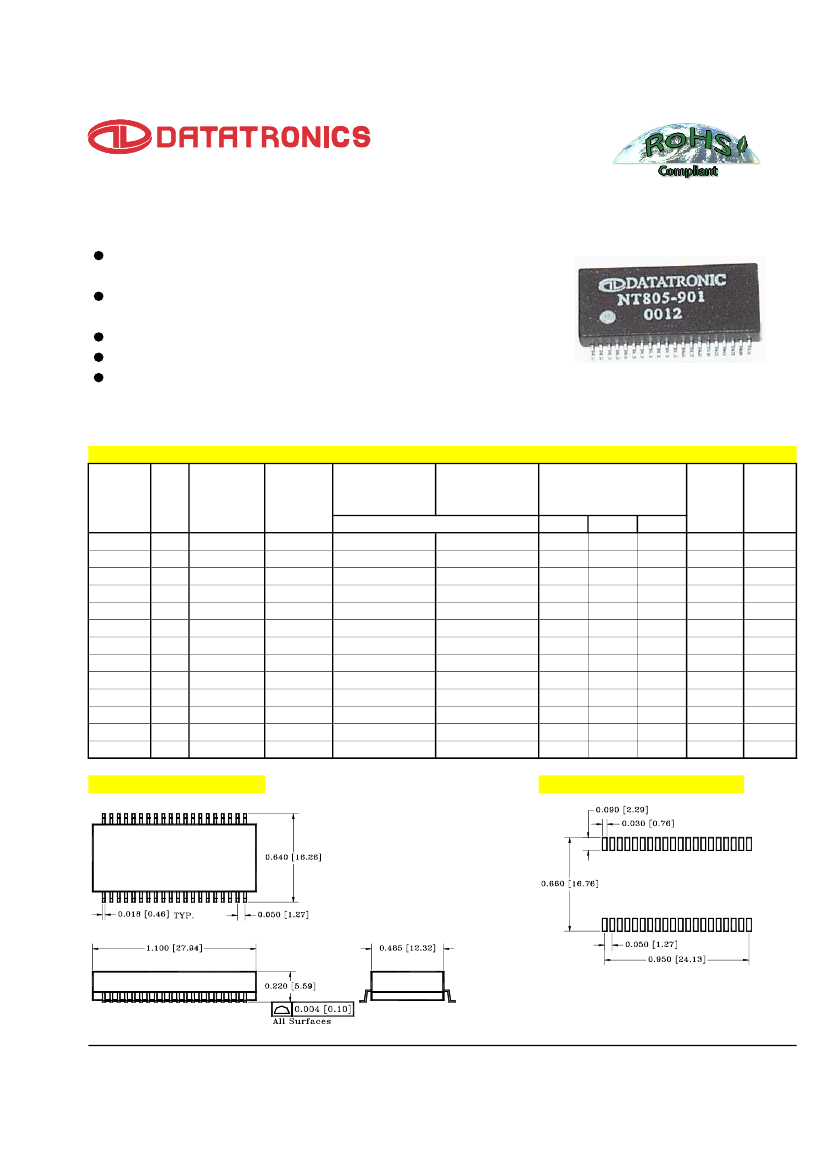

Quad Ports 10/100 Base-TX High Speed LAN Magnetic Modules

For Various Transceiver ICs

Designed to meet IEEE 802.3 and ANSI X3.263 standard

including 350uH OCL with 8 mA bias

Excellent EMI and Differential to Common Mode Rejection

performance

Designed to meet IR reflow at 235 Degree C peak temperature

Available with various pinout for flexible circuit board layout

Custom design with other transmit T/Rs, pinouts, packages

and/or phase flipped are available on request

Operating Temperature: -25°C to +55°C.

Electrical Specifications at 25ºC:

Insertion

Part

Number

NT805-901

NT805-902

NT805-903

NT805-904

NT805-905

NT805-906

NT805-951

NT805-952

NT805-953

NT805-954

NT805-955

NT805-956

NT805-957

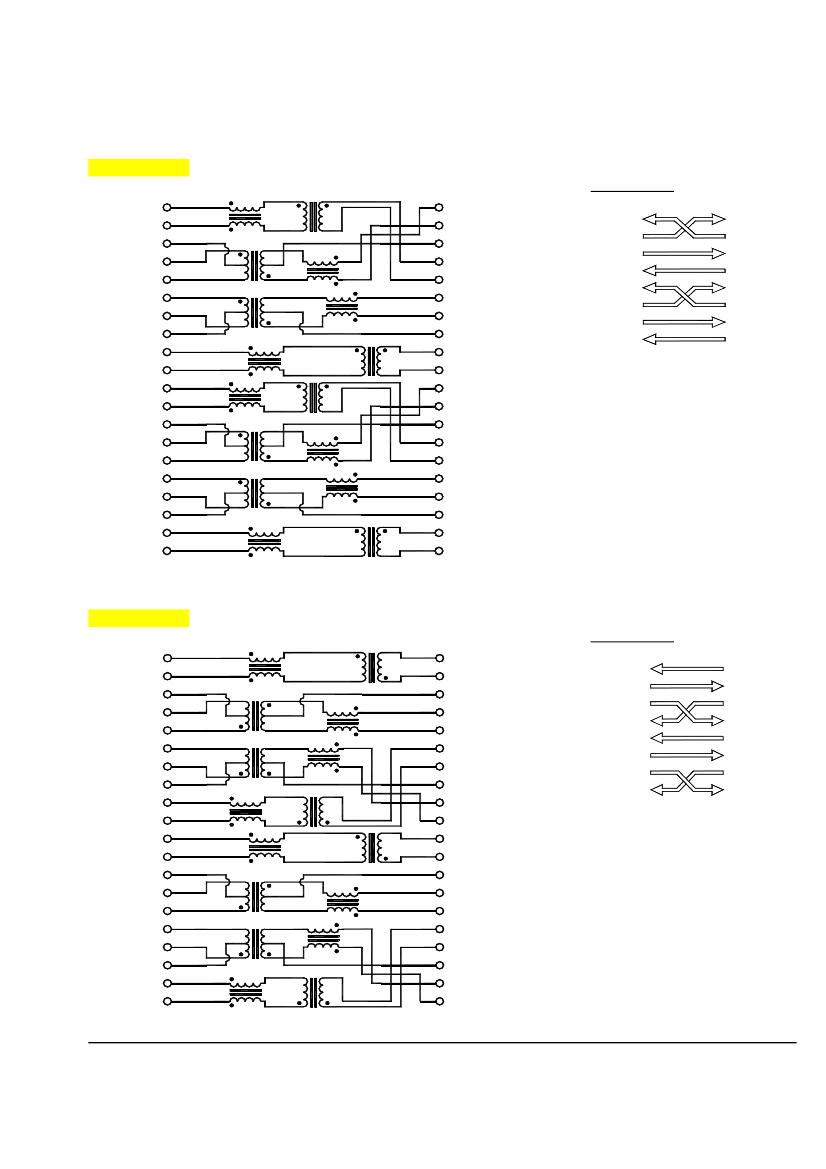

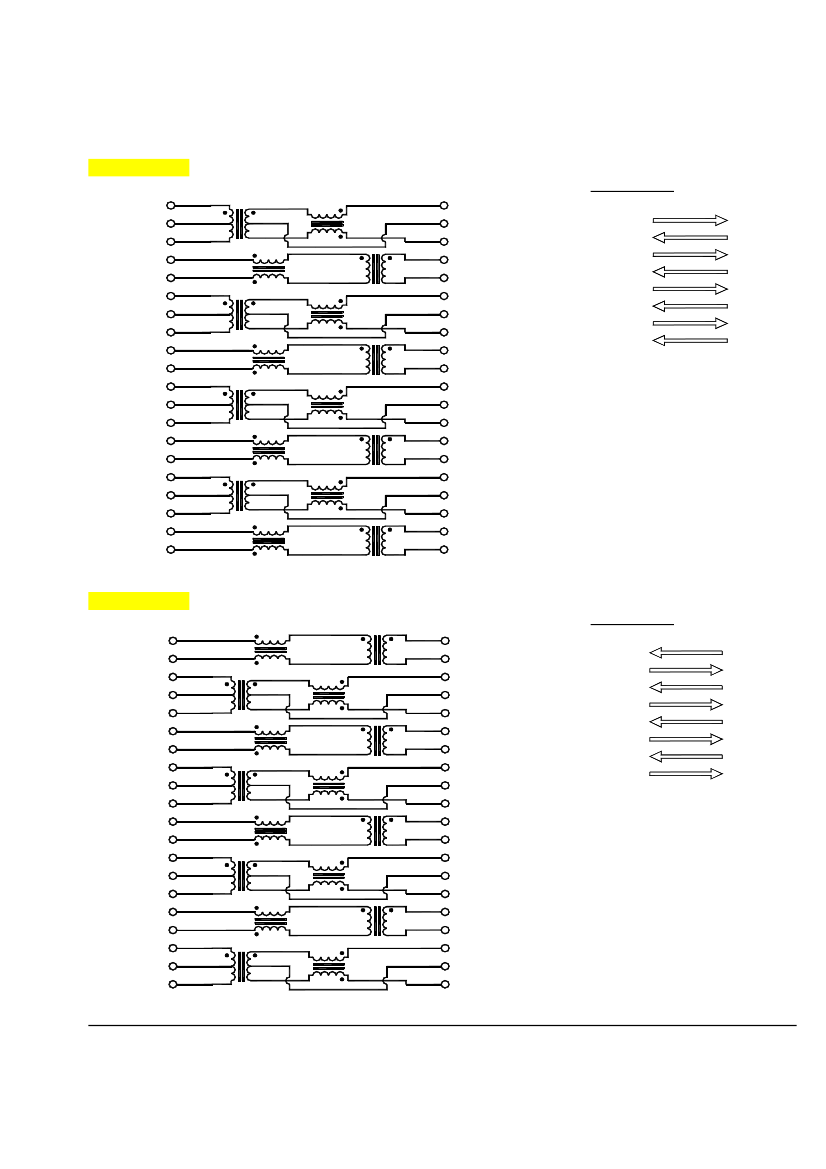

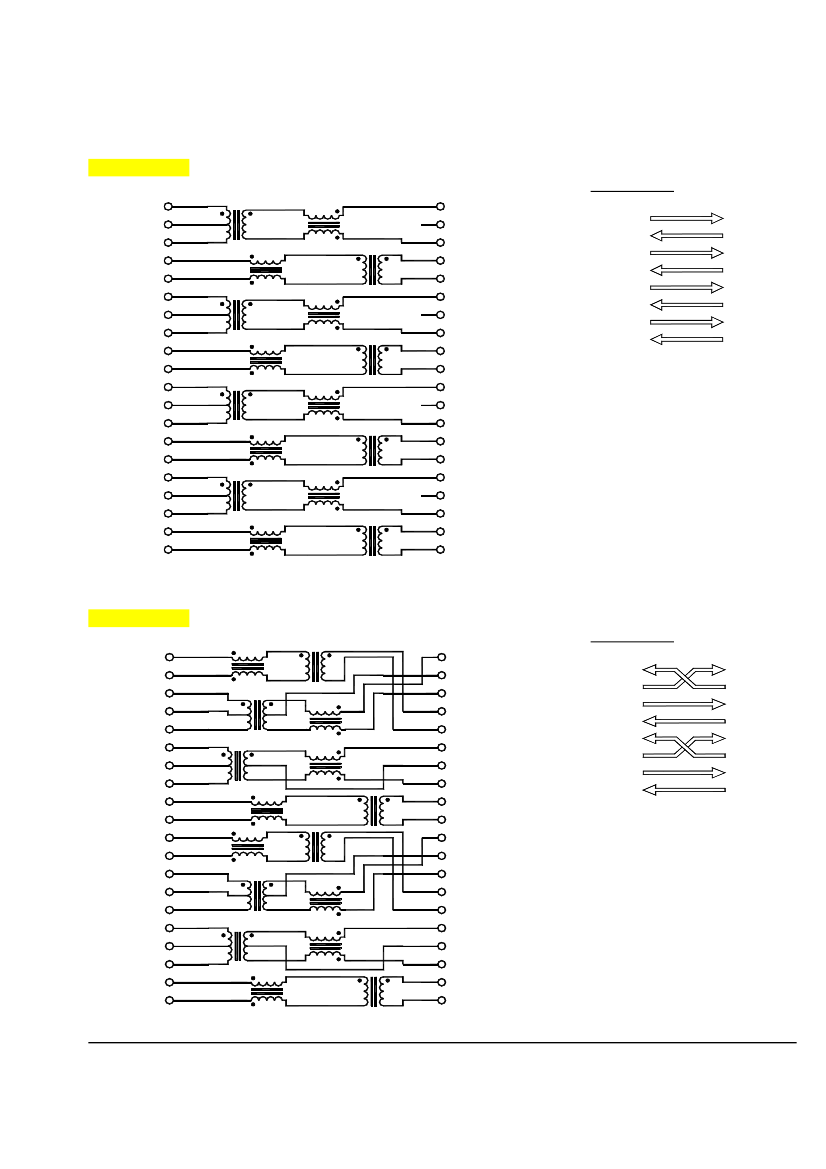

Circuit

Transmit

Turns Ratio

1CT:1CT

2CT:1

2CT:1CT

1.25CT:1CT

1.414CT:1CT

1CT:1.414CT

Loss

dB (Max)

0.1-100MHz

-1

-40

Differential to

Common Mode

Common to

Common Mode

30MHz

-30

-16

Return Loss

dB (Typ.)

60MHz

-13

-10

Crosstalk

dB (Typ.)

80MHz 1-100MHz

-40

Hipot

Vrms

(Min)

1500

Storage Temperature: -55°C to +80°C.

Rejection (dB Typ.) Rejection (dB Typ.)

0.1-100MHz

MECHANICAL

SUGGESTED PAD LAYOUT

DATATRONIC: 28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Toll Free: 888-889-5391 Fax: 951-928-7701

Email: ddisales@datatronics.com

499 King’s Road, Hong Kong Tel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specification are subject to change without notice.
