NTC16-103-H3950M: DescriptionNTC CHIP THERMISTOR; File Size77KB，1 Pages; ManufacturerAAC [American Accurate Components]; Websitehttp://www.aacix.com/

Download Datasheet View All

NTC16-103-H3950M Overview

NTC CHIP THERMISTOR

Preview

Download Datasheet

View All

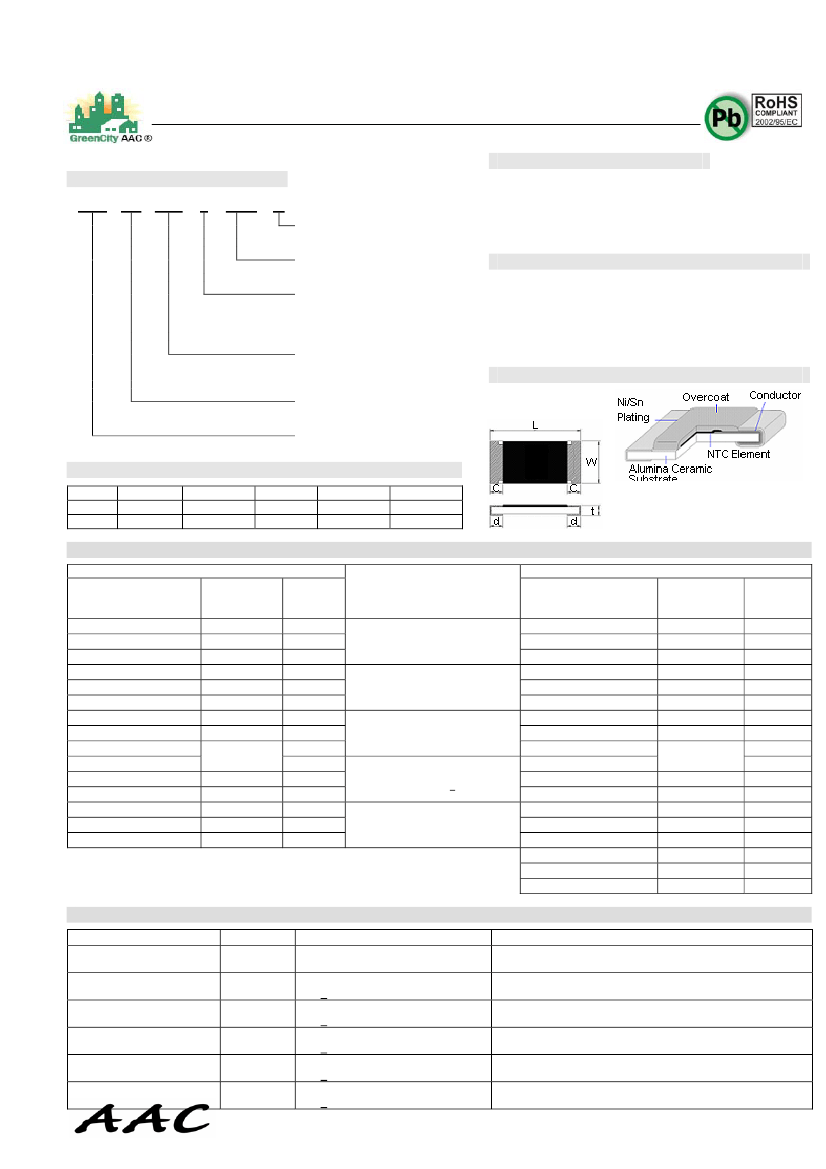

NTC CHIP THERMISTOR

The content of this specification may change without notification 10/25/07

Custom solutions are available.

FEATURES

SMD type NTC Chip Thermistor

Thinner than multilayer types

High precision and high stability

High accuracy in resistance and B constant

ISO/TS 16949:2002 Certified

HOW TO ORDER

NTC

05- 103-

3950

Packaging

M = tape/reel

B Value (K)

Refer to spec

Tolerance

F = ±1%

G = ±2%

H = ±3%

J = ±5%

K = ±10%

APPLICATIONS

Temperature compensation for transistor, IC Crystal

Oscillator of mobile communications equipment.

Temperature sensor for rechargeable batteries

Temperature compensation for LCD

Temperature compensation & sensing for car audio

equipment

Resistance at 25°C

102 = 1.0K ohm

103 = 10.0K ohm

Size

05 = 0402

16 = 0603

CONSTRUCTION

Series

NTC Chip Thermistor

DIMENSIONS (mm)

Size

0402

0603

1.0 ± 0.05

1.6 ± 0.1

0.5 ± 0.05

0.80 ± 0.10

0.2 ± 0.1

0.3 ± 0.2

0.25 ± 0.1

0.3 ± 0.2

0.35 ± 0.05

0.45 ± 0.1

ELECTRICAL CHARACTERISTICS

0402 Size

Zero Power

Resistance

Part Number

@ 25°C (Ω)

NTC05-102 3100M

1.0 K

NTC05-152 3100M

1.5 K

NTC05-202 3400M

2.0 K

NTC05-222 3400M

2.2 K

NTC05-332 3400M

3.3 K

NTC05-472 3435M

4.7 K

NTC05-502 3435M

5.0 K

NTC05-682 3435M

6.8 K

NTC05-103 3435M

10 K

NTC05-103 3950M

NTC05-223 3950M

22 K

NTC05-333 3950M

33 K

NTC05-473 3950M

47 K

NTC05-503 4000M

50 K

NTC05-104 4000M

100 K

B value

(K)

3100

3400

3435

3950

4000

Shared Characteristics

0402 & 0603

Resistance Tolerance:

±1%, ±2%, ±3%, ±5%, ±10%

0603 Size

Zero Power

Resistance

Part Number

@ 25°C (Ω)

NTC16-102 3100M

1.0 K

NTC16-152 3100M

1.5 K

NTC16-202 3400M

2.0 K

NTC16-222 3400M

2.2 K

NTC16-332 3400M

3.3 K

NTC16-472 3435M

4.7 K

NTC16-502 3435M

5.0 K

NTC16-682 3435M

6.8 K

NTC16-103 3435M

10 K

NTC16-103 3950M

NTC16-223 3950M

22 K

NTC16-333 3950M

33 K

NTC16-473 3950M

47 K

NTC16-503 4000M

50 K

NTC16-683 4000M

68 K

NTC16-104 4000M

100 K

NTC16-204 4000M

200 K

NTC16-224 4000M

220 K

B value

(K)

3100

3400

3435

3950

4000

Tolerance of B value: ±3%

Rated Power @ 25°C

(mW/°C):

Typical Dissipation Constant

(mW/°C):

< 4

Operating Temperature Range:

-40°C ~ 125°C

PERFORMANCE

Item

Solderability

Resistance to Solder Heat

Damp Heat

Thermal Shock

High Temperature Storage

Life Test

Standard

IEC68-2-20

IEC68-2-3

IEC68-2-14

IEC68-2-20

CNS5550

Requirement

> 90% of the terminal electrode shall

be covered with solder

No serious mechanical damage

∆R

< 3% (ref. to initial value)

No serious mechanical damage

∆R

< 3%

No serious mechanical damage

∆R

< 3%

No serious mechanical damage

∆R

< 3%

No serious mechanical damage

∆R

< 3%

Test Condition

Soldering Temp: 235±5°C

Soldering Time: 2±0.5 sec

Soldering Temperature: 260±5°C,

Soldering Time: 5±1 sec in solder pot

Test Temp. & Relative Humidity: 40±2°C, 90%~95% RH

Test Time: 1000±24 hrs

(settled at RT for 24 hrs before measuring)

Cycle: min/max temp ±5°C (30 min), 25±5°C (5 min)

Cycles Repeated: 100 times

Max Temp: ±2°C for 1000±2 hrs

(settled at RT for 24 hrs before measuring)

Max Temp ±5°C Loading Prated for 1000±24 hrs

(settled at RT for 24 hrs before measuring)

American Accurate Components, Inc.

188 Technology Drive, Unit H, Irvine, CA 92618

TEL: 949-453-9888 FAX: 949-453-8889
