DS-107-37-S-B-NA-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> DS-107-37-S-B-NA-D

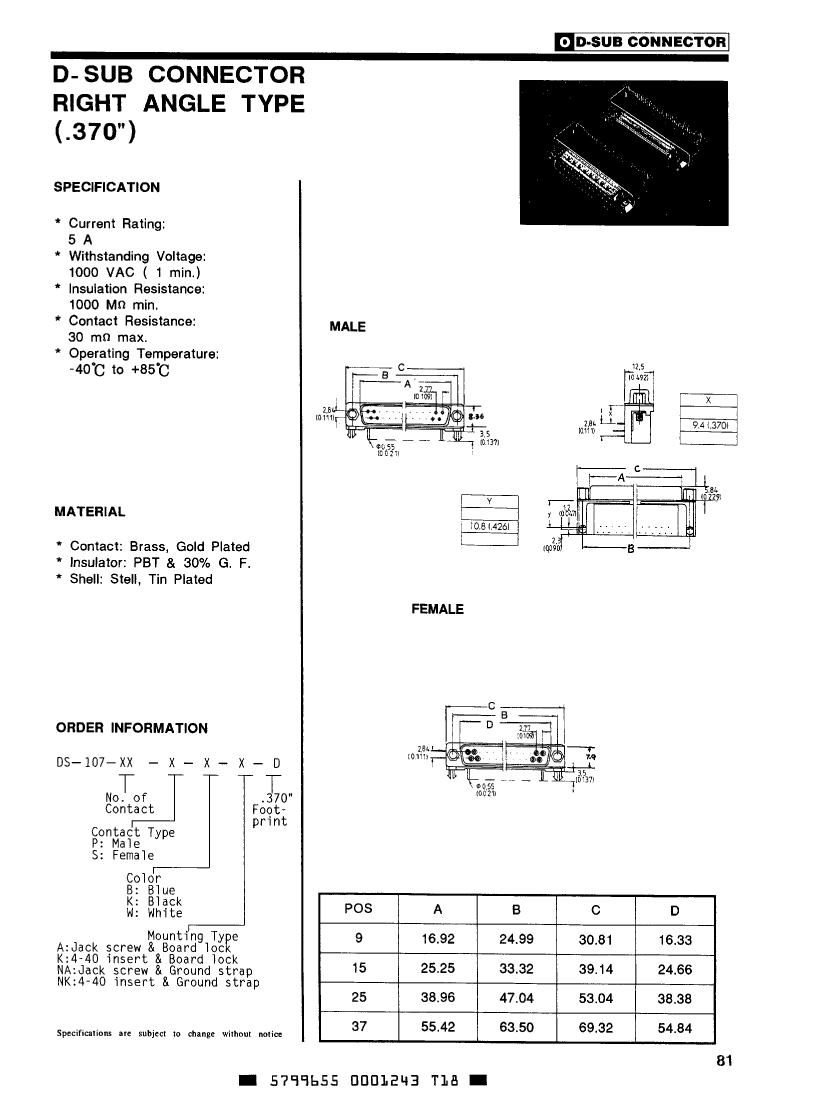

DS-107-37-S-B-NA-D: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric Compare View All

DS-107-37-S-B-NA-D Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DS-107-37-S-B-NA-D Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	.370 FOOTPRINT
body width	0.492 inch
subject depth	0.563 inch
body length	2.729 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS-107
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.137 inch
Termination type	SOLDER
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

DS-107-37-S-B-NA-D Related Products

	DS-107-37-S-B-NA-D	DS-107-37-P-B-A-D	DS-107-37-P-K-NK-D	DS-107-37-P-K-A-D	DS-107-37-P-B-NK-D	DS-107-37-S-B-NK-D	DS-107-37-S-B-K-D
Description	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	.370 FOOTPRINT	.370 FOOTPRINT	.370 FOOTPRINT	.370 FOOTPRINT	.370 FOOTPRINT	.370 FOOTPRINT	.370 FOOTPRINT
body width	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch
subject depth	0.563 inch	0.563 inch	0.563 inch	0.563 inch	0.563 inch	0.563 inch	0.563 inch
body length	2.729 inch	2.729 inch	2.729 inch	2.729 inch	2.729 inch	2.729 inch	2.729 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact point gender	FEMALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLACK	BLACK	BLUE	BLUE	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS-107	DS-107	DS-107	DS-107	DS-107	DS-107	DS-107
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 2	THREADED	THREADED	JACKSCREW	THREADED	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.137 inch	0.137 inch	0.137 inch	0.137 inch	0.137 inch	0.137 inch	0.137 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	37	37	37	37	37	37	37
Base Number Matches	1	1	1	1	1	1	1
