DS1073M-66 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS1073M-66

DS1073M-66: DescriptionSPECIALTY MICROPROCESSOR CIRCUIT, PDIP8, 0.300 INCH, DIP-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size943KB，19 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DS1073M-66 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS1073M-66	-	-	View	Buy Now

DS1073M-66 Overview

SPECIALTY MICROPROCESSOR CIRCUIT, PDIP8, 0.300 INCH, DIP-8

DS1073M-66 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.375 mm
Humidity sensitivity level	NOT SPECIFIED
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	245
Certification status	COMMERCIAL
Maximum seat height	4.572 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR CIRCUIT
Base Number Matches	1

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

DS1073

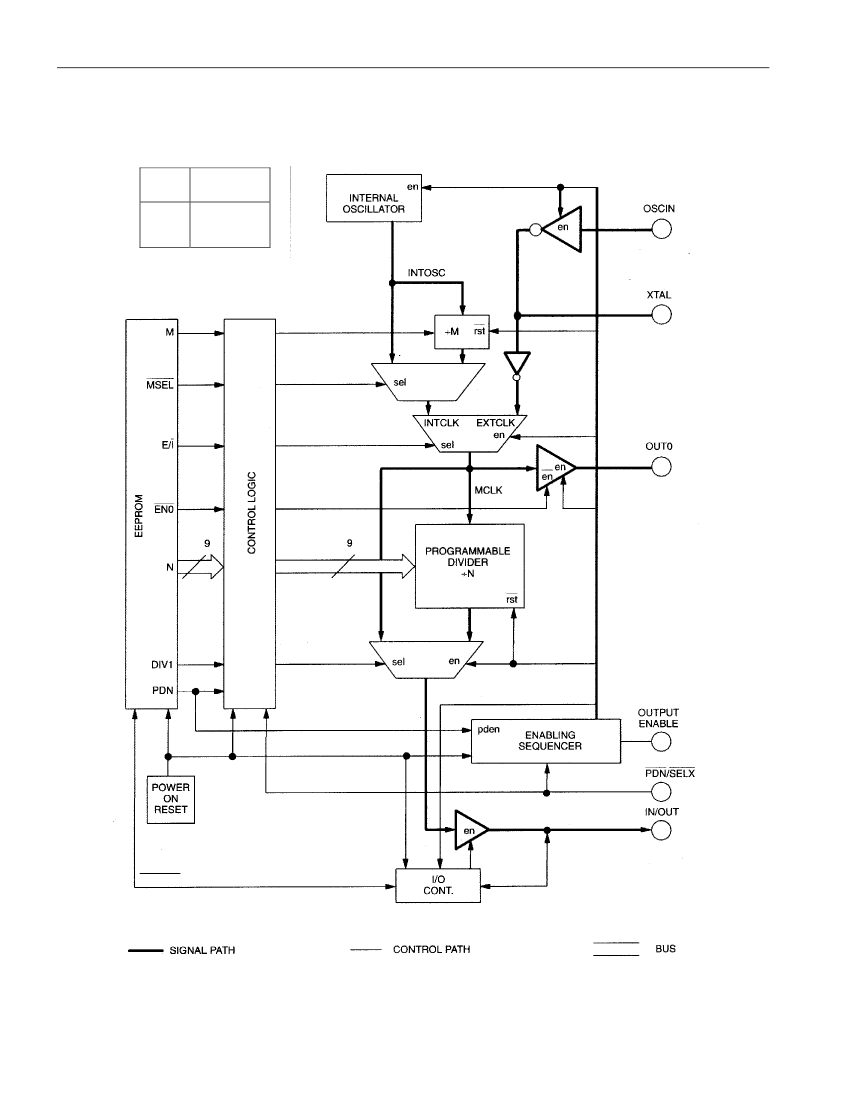

PIN DESCRIPTIONS

IN/OUT Pin (I/O):

This pin is the main oscillator output, with a frequency determined by clock

reference, M and N dividers. Except in programming mode this pin is always an output. In programming

mode this pin is an input and output.

External Oscillator Input (OSCIN):

This pin can be used to supply an external reference frequency to

the device.

Crystal Oscillator Connection (XTAL):

A crystal can be connected between this pin and OSCIN to

provide an alternative frequency reference. The crystal must be used in fundamental mode. If a crystal is

not used this pin should be left open.

Output Enable Function (OE pin):

The DS1073 also features a “synchronous” output enable. When

OE is at a high logic level the oscillator free runs. When this pin is taken low OUT is held low,

immediately if OUT is already low, or at its next high-to-low transition if OUT is high. This prevents any

possible truncation of the output pulse width when the enable is used. While the output is disabled the

master oscillator continues to run (producing an output at OUT0, if the

EN0

bit = 0) but the internal

counters (/N) are reset. This results in a constant phase relationship between OE’s return to a high level

and the resulting OUT signal. When the enable is released OUT will make its first transition within one

to two clock periods of the master clock.

Power-Down/Select Function (

PDN

SELX

pin):

The Power-Down/Select (

PDN

SELX

) pin has a user-

selectable function determined by one bit (PDN bit) of the user-programmable memory. According to

which function is selected, this pin will be referred to as

PDN

SELX

If the Power-Down function is selected (PDN bit = 1) a low logic level on this pin can be used to make

the device stop oscillating (active low) and go into a reduced power consumption state. The “Enabling

Sequencer” circuitry will first disable OUT in the same way as when OE is used. Next OUT0 will be

disabled in a similar fashion. Finally the oscillator circuitry will be disabled. In this mode both outputs

will go into a high-impedance state.

The power consumption in the power-down state is much less than if OE is used because the internal

oscillator (if used) is completely powered down. Even if an external reference or a crystal is used all of

the on-chip buffers are powered down to minimize current drain. Consequently the device will take

considerably longer to recover (i.e., achieve stable oscillation) from a power-down condition than if the

OE is used.

If the Select function is chosen (PDN bit = 0) this pin can be used to switch between the internal

oscillator and an external reference (or crystal) on the fly. When this mode is chosen the E/

select bit is

overridden, a high logic level on

SELX

will select the internal oscillator, a low logic level will select the

external reference (or crystal oscillator).

Reference Output (OUT0 pin):

A reference output, OUT0, is also available from the output of the

reference select mux. This output is especially useful as a buffered output of a crystal defined master

frequency. OUT0 is unaffected by the OE pin, but is disabled in a glitchless fashion if the device is

powered down. If this output is not required it can be permanently disabled by setting the

EN0

bit to 1,

and there will be a corresponding reduction in overall power consumption.

3 of 18
