DN74LS541S datasheet, PDF - EEWORLD Datasheet

DN74LS541S: DescriptionBus Driver, 1-Func, 8-Bit, True Output, TTL, PDSO20; Categorylogic logic; File Size111KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

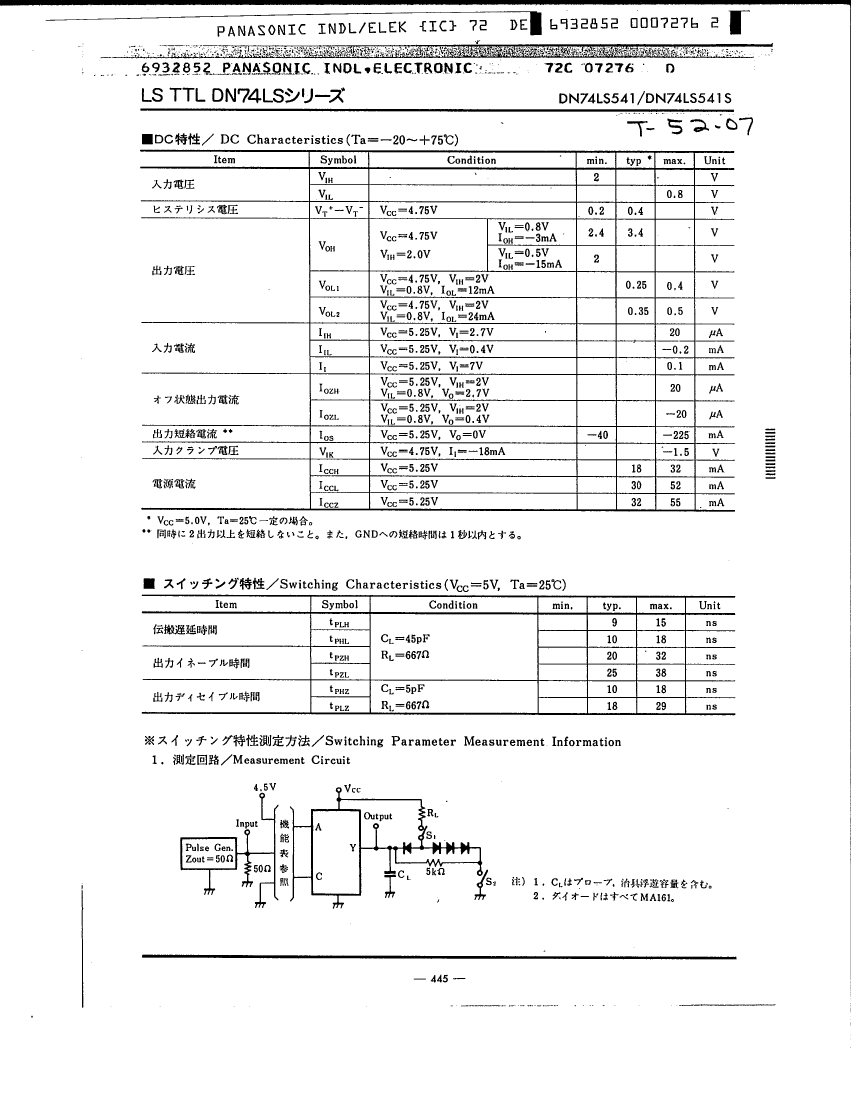

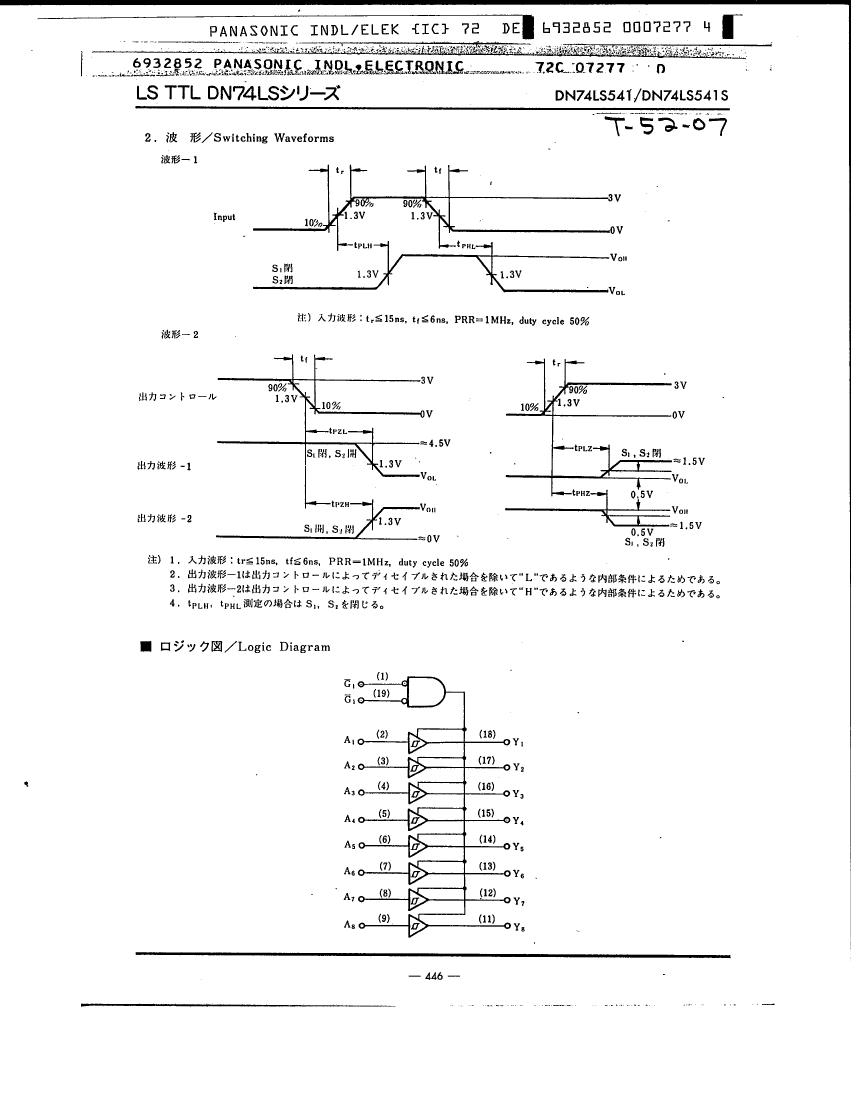

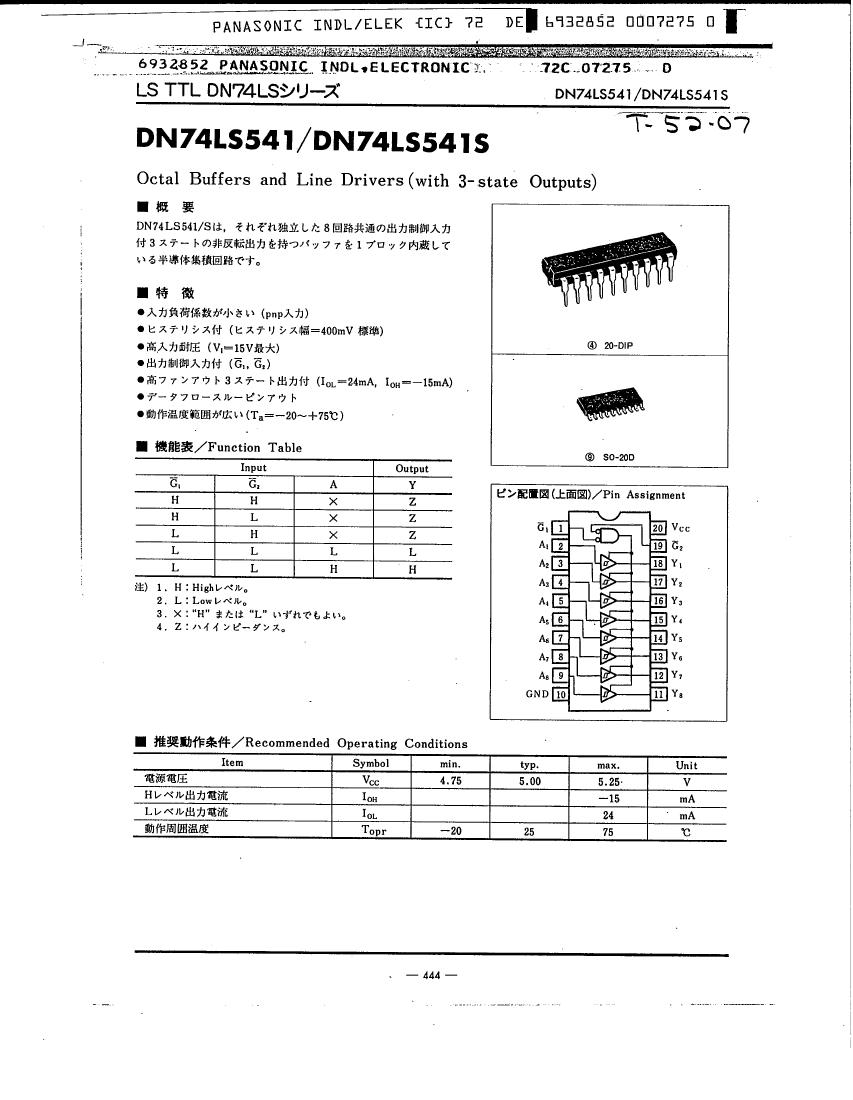

DN74LS541S Overview

Bus Driver, 1-Func, 8-Bit, True Output, TTL, PDSO20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDSO-G20
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	55 mA
Prop。Delay @ Nom-Sup	18 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	DN74LS541S	DN74LS541
Description	Bus Driver, 1-Func, 8-Bit, True Output, TTL, PDSO20	Bus Driver, 1-Func, 8-Bit, True Output, TTL, PDIP20
Is it Rohs certified?	incompatible	incompatible
package instruction	SOP, SOP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDSO-G20	R-PDIP-T20
Load capacitance (CL)	45 pF	45 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V
Maximum supply current (ICC)	55 mA	55 mA
Prop。Delay @ Nom-Sup	18 ns	18 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
