DMS-2-250 datasheet, PDF - EEWORLD Datasheet

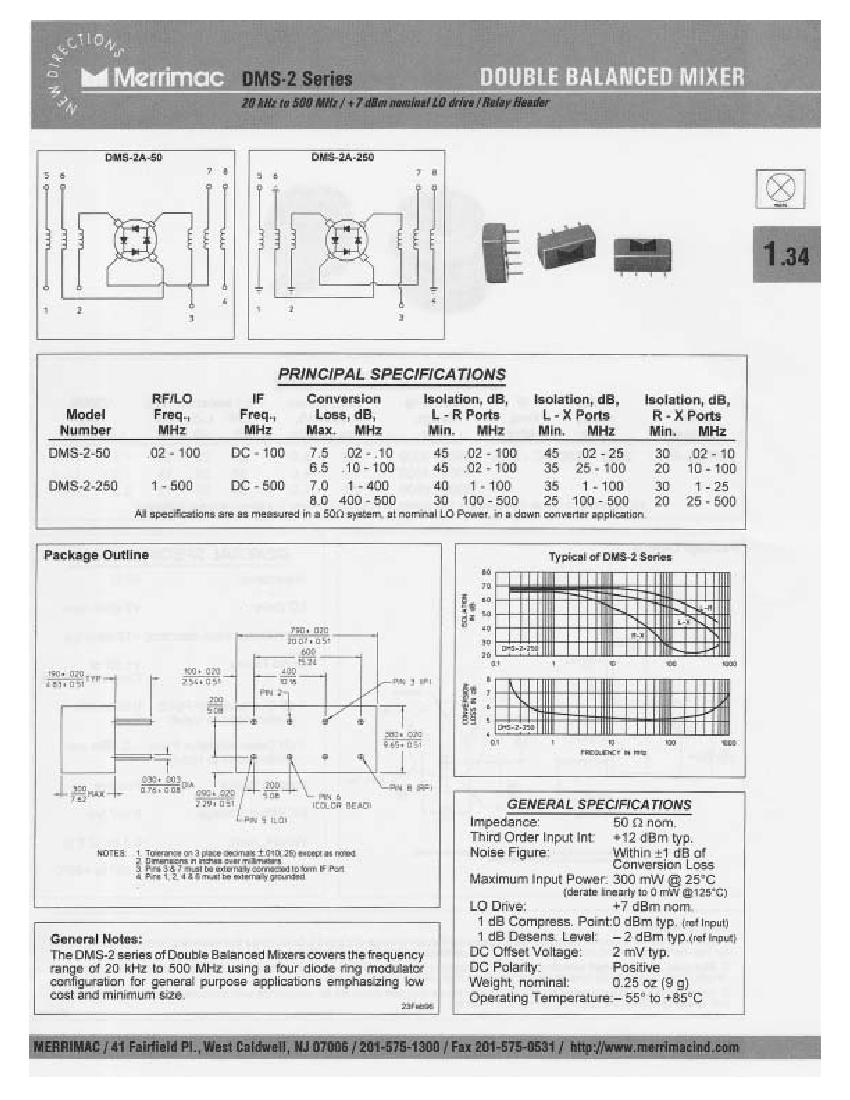

DMS-2-250: Description1MHz - 500MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8dB CONVERSION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size77KB，1 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DMS-2-250 Overview

1MHz - 500MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8dB CONVERSION LOSS-MAX

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	DIP8,.2,200
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	8 dB
Maximum input power (CW)	24.77 dBm
Installation features	THROUGH HOLE MOUNT
Number of terminals	8
Maximum operating frequency	500 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DIP8,.2,200
RF/Microwave Device Types	DOUBLE BALANCED
surface mount	NO
Base Number Matches	1

	DMS-2-250	DMS-2-50
Description	1MHz - 500MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8dB CONVERSION LOSS-MAX	0.02MHz - 100MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 6.5dB CONVERSION LOSS-MAX
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	DIP8,.2,200	DIP8,.2,200
Reach Compliance Code	compliant	compliant
Characteristic impedance	50 Ω	50 Ω
structure	COMPONENT	COMPONENT
Maximum frequency conversion loss	8 dB	6.5 dB
Maximum input power (CW)	24.77 dBm	24.77 dBm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	8	8
Maximum operating frequency	500 MHz	100 MHz
Minimum operating frequency	1 MHz	0.02 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	DIP8,.2,200	DIP8,.2,200
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
surface mount	NO	NO
Base Number Matches	1	1
