DMS-2-50: DescriptionDouble Balanced Mixer, 0.02MHz Min, 100MHz Max, 6.5dB Conversion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size536KB，1 Pages; ManufacturerCrane Co.; Environmental Compliance

Download Datasheet Parametric View All

DMS-2-50 Overview

Double Balanced Mixer, 0.02MHz Min, 100MHz Max, 6.5dB Conversion Loss-Max,

DMS-2-50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	DIP8,.2,200
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	6.5 dB
Maximum input power (CW)	24.77 dBm
Installation features	THROUGH HOLE MOUNT
Number of terminals	8
Maximum operating frequency	100 MHz
Minimum operating frequency	0.02 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DIP8,.2,200
RF/Microwave Device Types	DOUBLE BALANCED
surface mount	NO
Base Number Matches	1

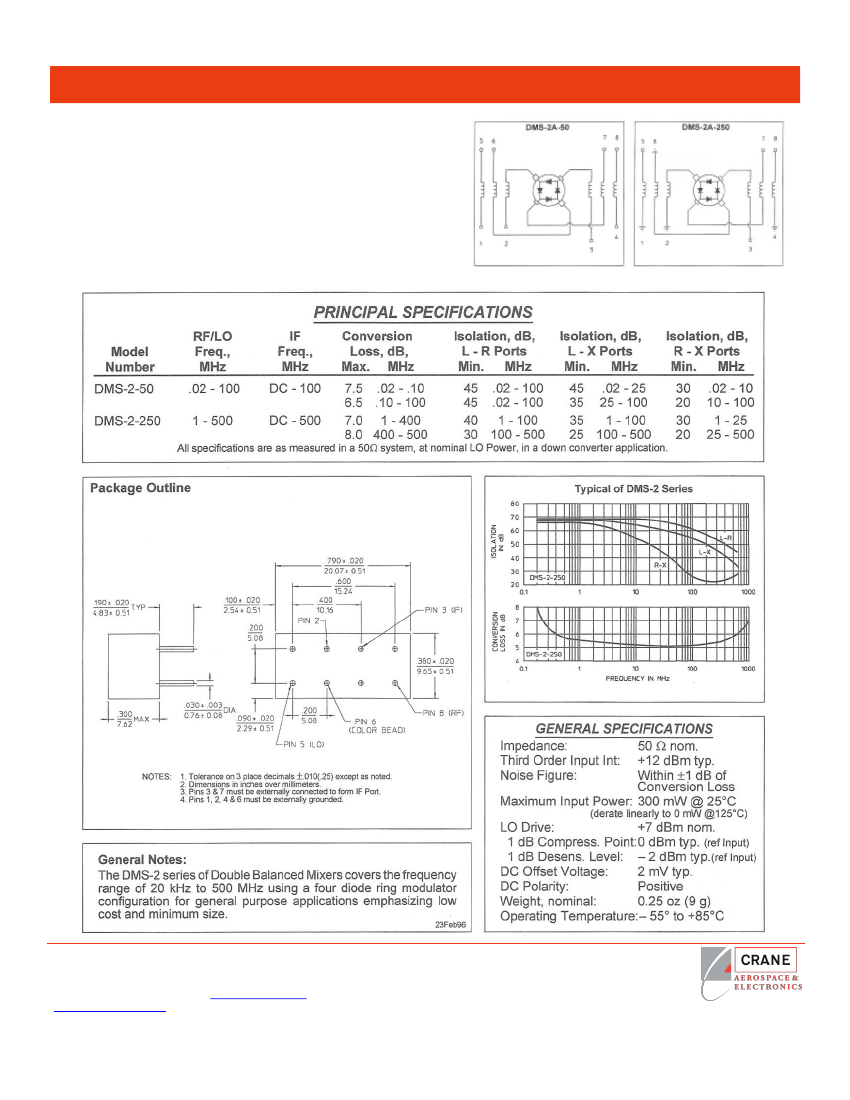

Preview

Download Datasheet

View All

Crane Aerospace & Electronics Microwave Solutions

DMS-2 S

ERIES

– D

OUBLE

B

ALANCED

M

IXERS

TECHNICAL FEATURE

FEATURES



20 kHz to 500 MHz

+7 dBm nominal LO drive

Relay Header

Crane Aerospace & Electronics

Microwave Solutions – Merrimac Industries

41 Fairfield Place, West Caldwell, NJ 07006

+ 1.973.575.1300 ext. 1309



mw@crane-eg.com

www.craneae.com/mw

DMS2.doc. This revision supersedes all previous releases. All technical information is believed to be accurate, but no responsibility is assumed for errors. We
