DN74LS85A datasheet, PDF - EEWORLD Datasheet

DN74LS85A: DescriptionMagnitude Comparator, TTL, PDIP16; Categorylogic logic; File Size192KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

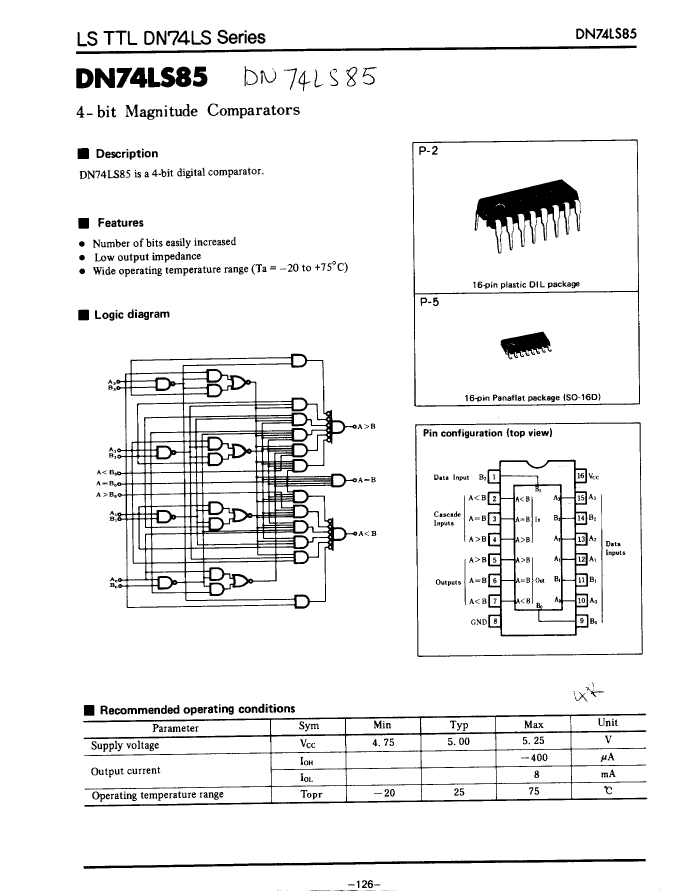

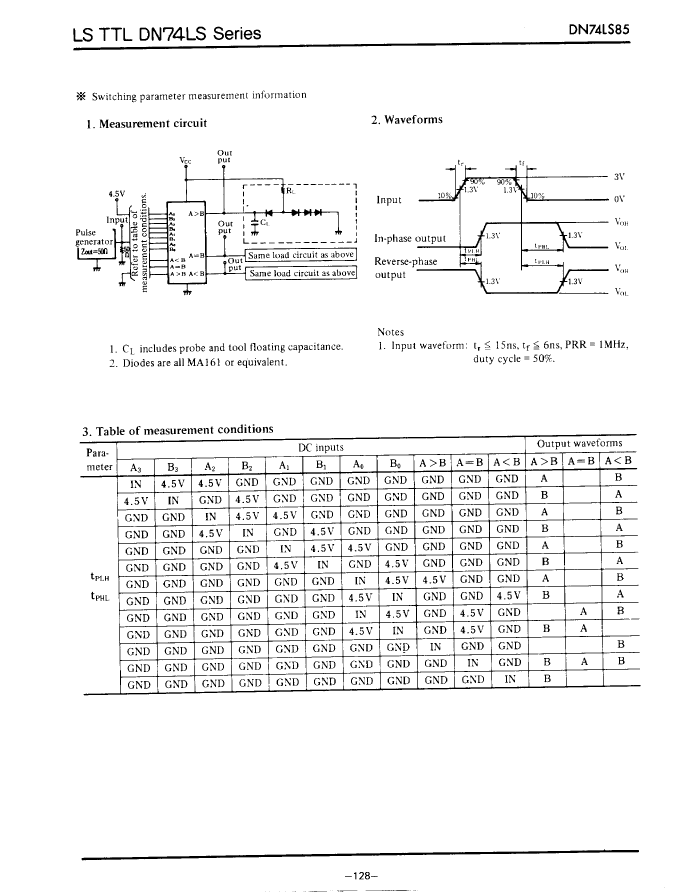

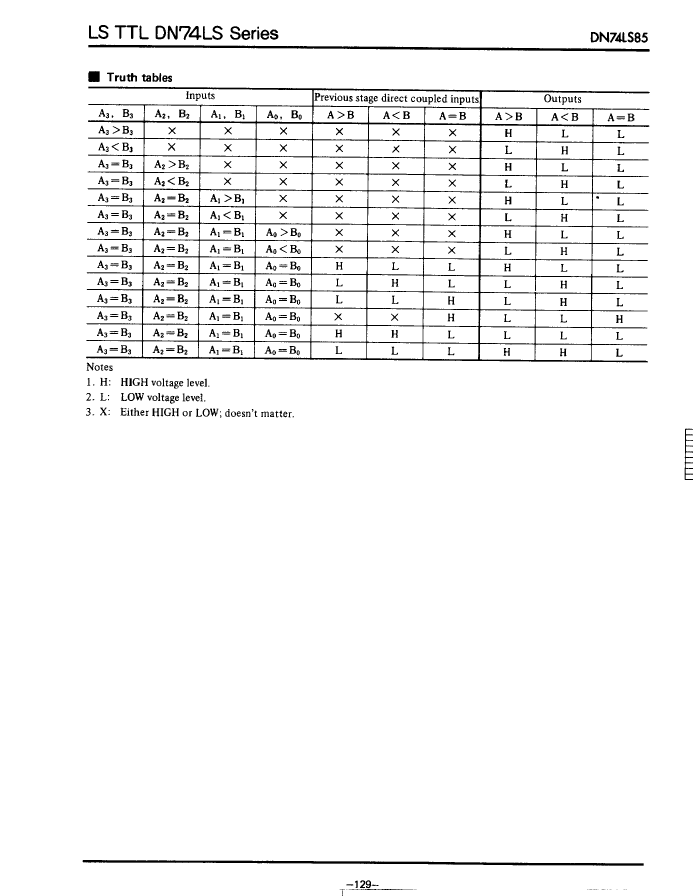

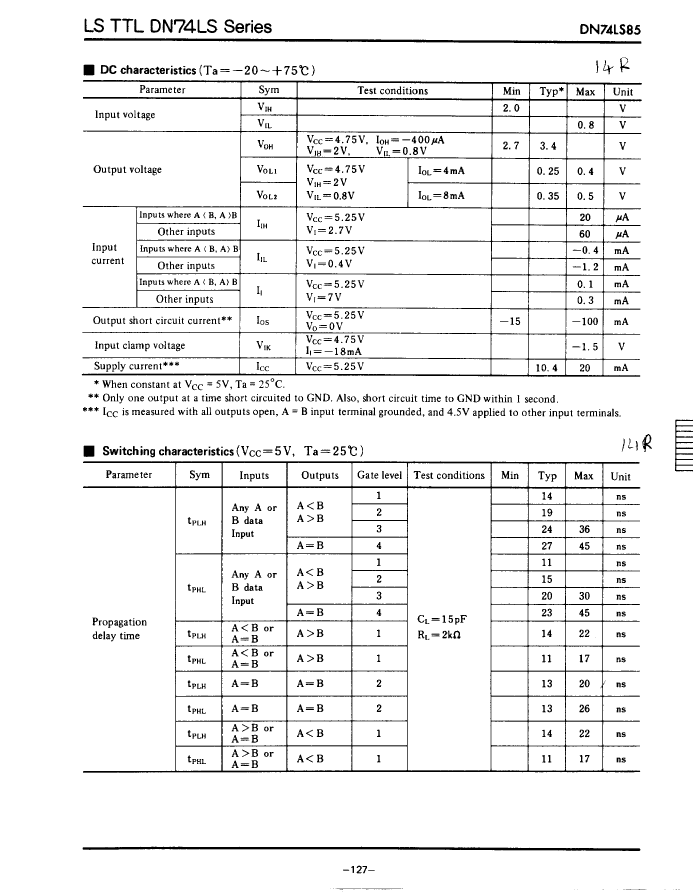

DN74LS85A Overview

Magnitude Comparator, TTL, PDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Logic integrated circuit type	MAGNITUDE COMPARATOR
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	DN74LS85A	DN74LS85
Description	Magnitude Comparator, TTL, PDIP16	Magnitude Comparator, TTL, PDIP16
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
Logic integrated circuit type	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
