Halogen and Antimony Free. “Green” Device (Note 3)
BV
DSS
T
J
Max
120V
R
DS(ON)
Max
65mΩ @ V
GS
= 10V
115V
70mΩ @ V
GS
= 4.5V
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
Mechanical Data
Case: U-DFN2020-6
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
e4
Weight: 0.0065 grams (Approximate)
Applications
DC-DC Primary Switch
Load Switch

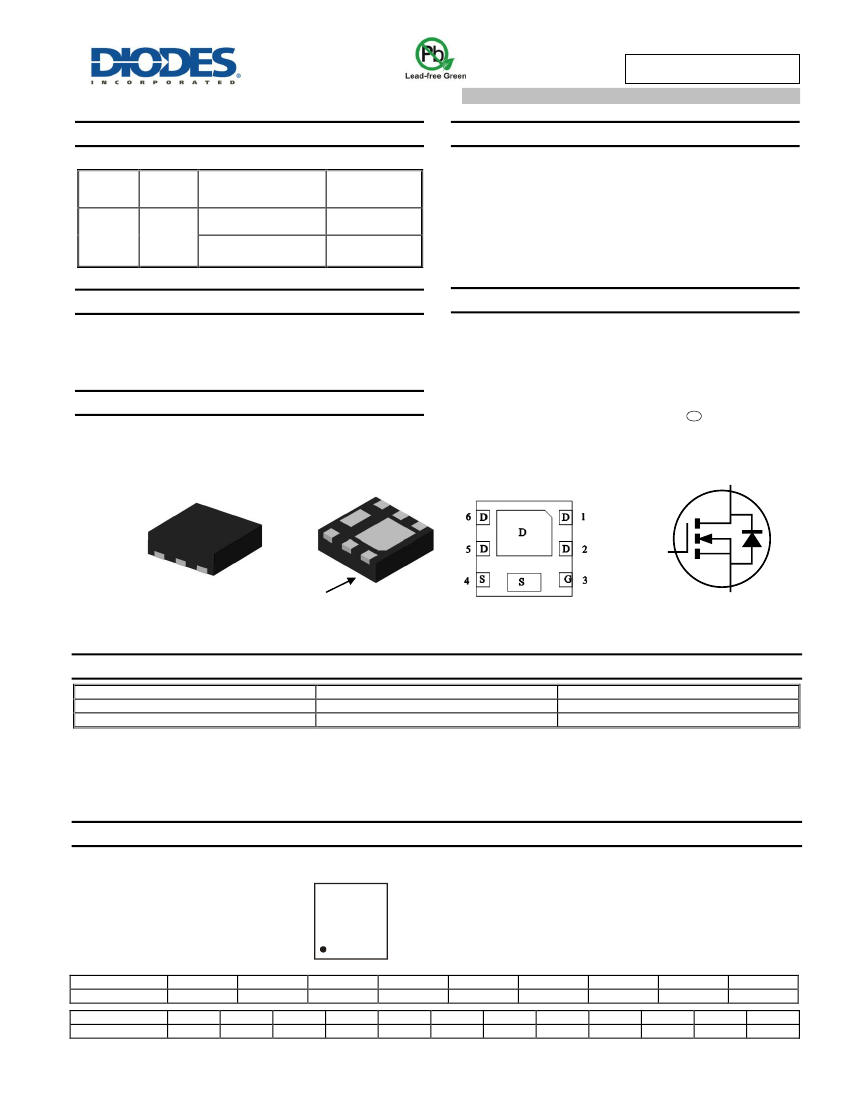

U-DFN2020-6 (Type F)
D
G
Pin1
Top View
Bottom View
Pin Out
Bottom View
S
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMT12H065LFDF-7
DMT12H065LFDF-13
Notes:
Case
U-DFN2020-6 (Type F)
U-DFN2020-6 (Type F)
Quantity Per Reel
3,000
10,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
