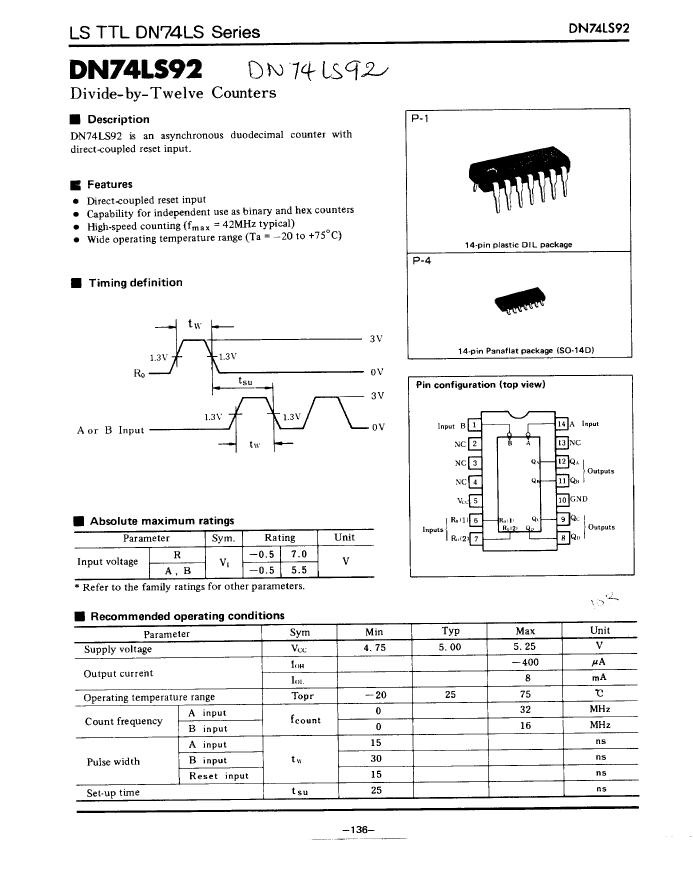

DN74LS92S

Description
Divide By 12 Counter, Asynchronous, Up Direction, TTL, PDSO14
Categorylogic    logic
File Size102KB,4 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

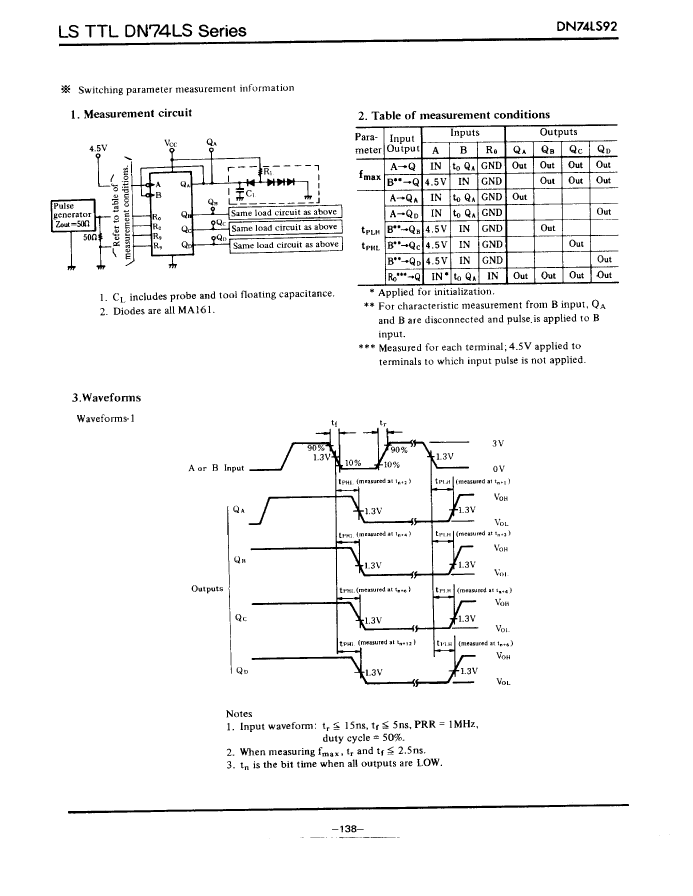

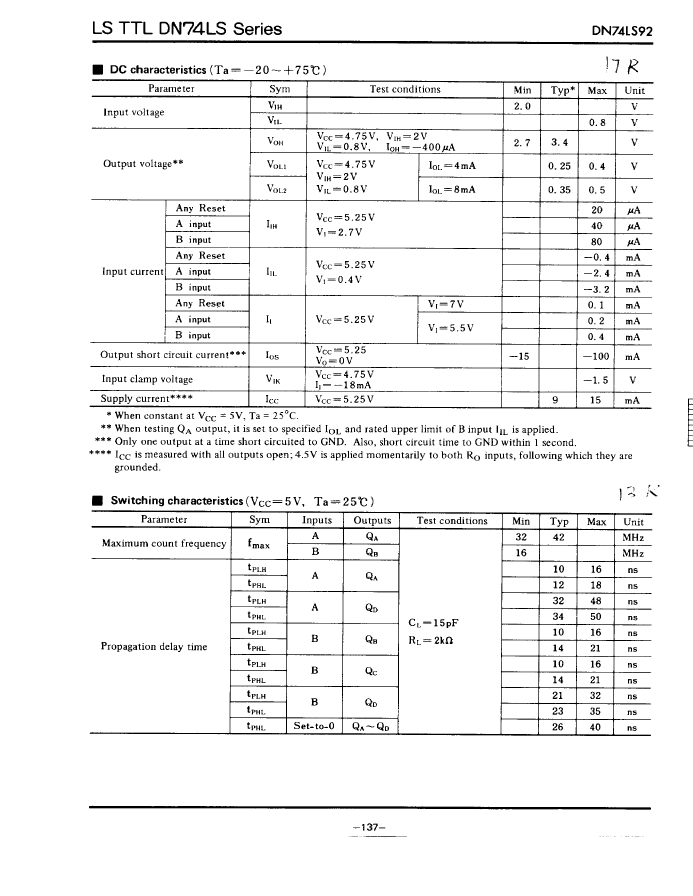

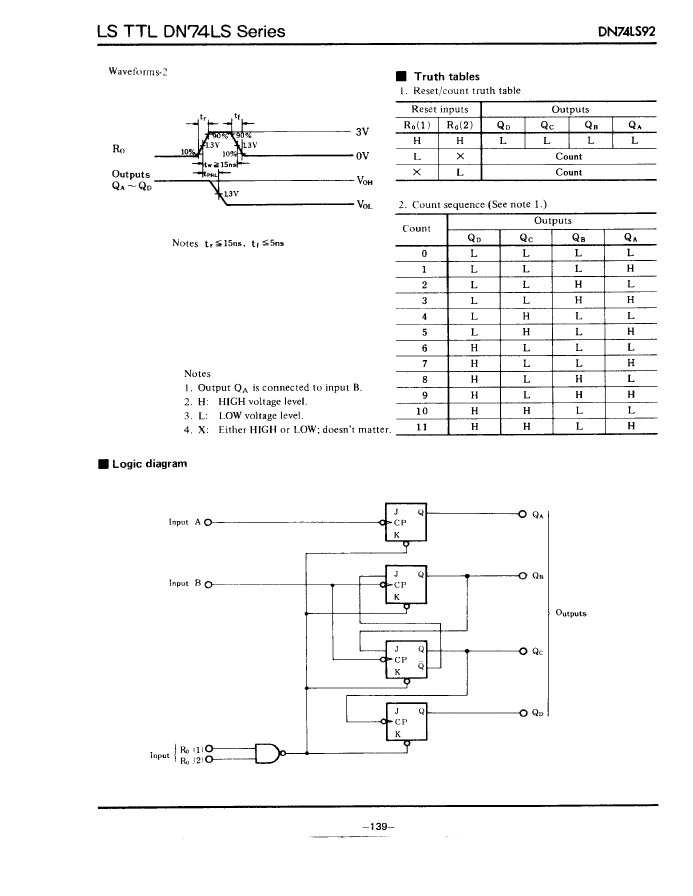

DN74LS92S Overview

Divide By 12 Counter, Asynchronous, Up Direction, TTL, PDSO14

DN74LS92S Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionSOP, SOP14,.25
Reach Compliance Codeunknown
Counting directionUP
JESD-30 codeR-PDSO-G14
JESD-609 codee0
Load/preset inputNO
Logic integrated circuit typeDIVIDE BY 12 COUNTER
Operating modeASYNCHRONOUS
Number of functions1
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP14,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply5 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer
