DBB08C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DBB08C

DBB08C: DescriptionBridge Rectifier Diode, 0.5A, 200V V(RRM),; CategoryDiscrete semiconductor diode; File Size51KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DBB08C Overview

Bridge Rectifier Diode, 0.5A, 200V V(RRM),

DBB08C Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
Maximum non-repetitive peak forward current	30 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	0.5 A
Maximum repetitive peak reverse voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

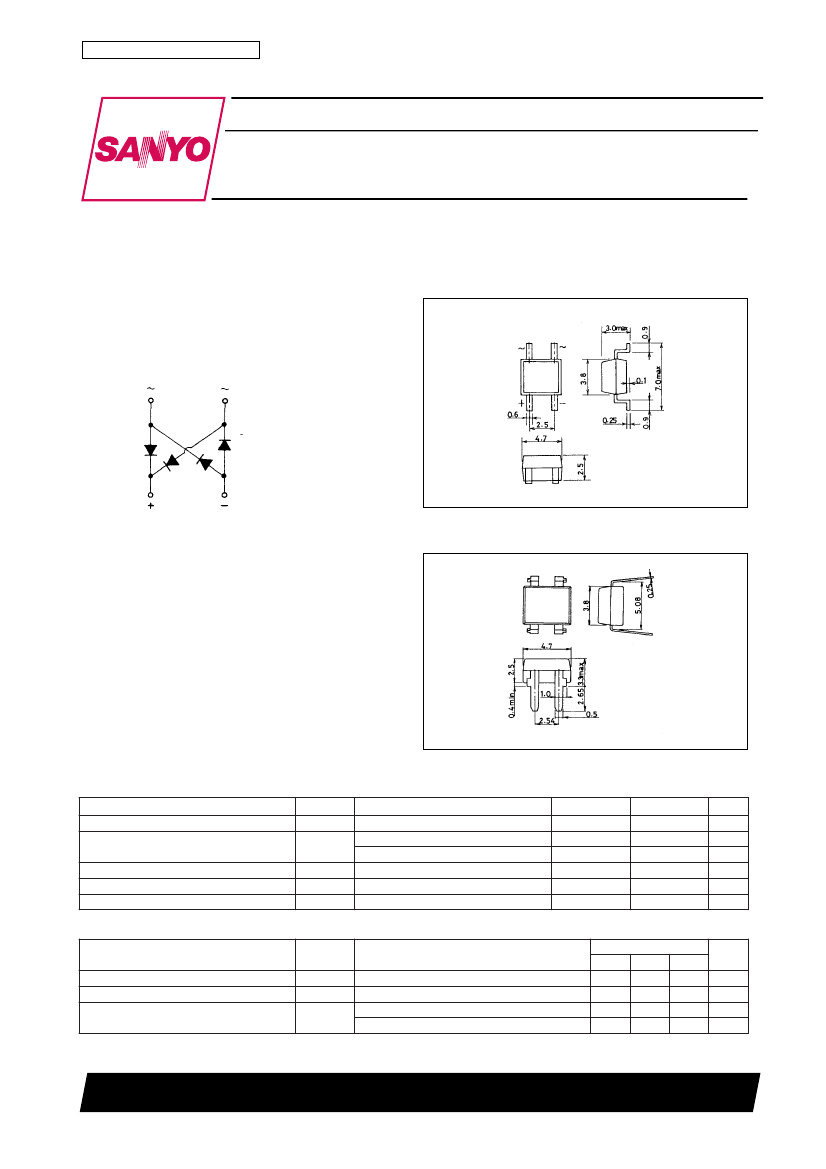

Ordering number :EN2772B

DBB08

Diffused Junction Silicon Diode

0.8A Single-Phase Bridge Rectifier

Features

· Plastic molded structure and ultrasmall package

making it easy to make DBB08-applied sets smaller.

· Two type of package available, surface mount type

and insertion type.

· Glass passivation for high reliability.

Electrical Connection

Package Dimensions

unit:mm

1189

Surface mount type (TM emboss taping)

[DBB08]

unit:mm

1247

Substrate inserting type (LT stick)

[DBB08]

Specifications

Absolute Maximum Ratings

at Ta = 25˚C

Parameter

Peak Reverse Voltage

Average Recitified Current

Surge Forward Current

Junction Temperature

Storage Temperature

Symbol

VRM

IFSM

Tstg

Alumina board*

PCB

50Hz sine wave, 1cycle

Conditions

DBB08C

200

→

DBB08G

60 0

0.8

0.5

150

–40 to +150

Unit

˚C

Electrical Characteristics

at Ta = 25˚C, per constituent element of bridge

Parameter

Forward Voltage

Reverse Current

Thermal Resistance

Symbol

Rth(j-a)

IF=0.4A

VR:At each VRM

Mounted on Cu foil (1mm

1mm) on alumina board

Mounted on PCB

Conditions

Ratings

min

typ

max

1.05

134

Unit

µA

˚C/W

Note*:Surface mount type.

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

52098HA (KT)/62096GI (KOTO)/92294MO 8-7589/4218TA, TS 8-2176 No.2772-1/2

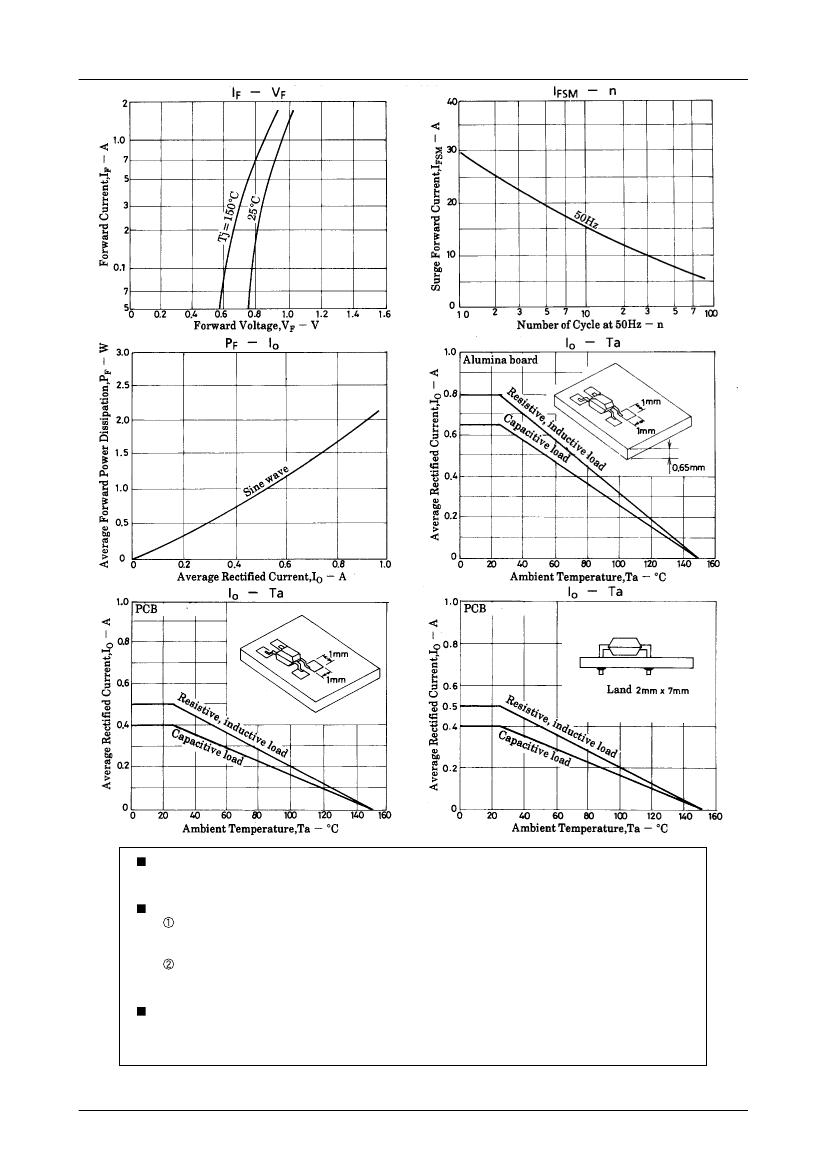

DBB08C Related Products

	DBB08C	DBB08G
Description	Bridge Rectifier Diode, 0.5A, 200V V(RRM),	Bridge Rectifier Diode, 0.5A, 600V V(RRM),
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V
Maximum non-repetitive peak forward current	30 A	30 A
Number of components	4	4
Maximum operating temperature	150 °C	150 °C
Maximum output current	0.5 A	0.5 A
Maximum repetitive peak reverse voltage	200 V	600 V
