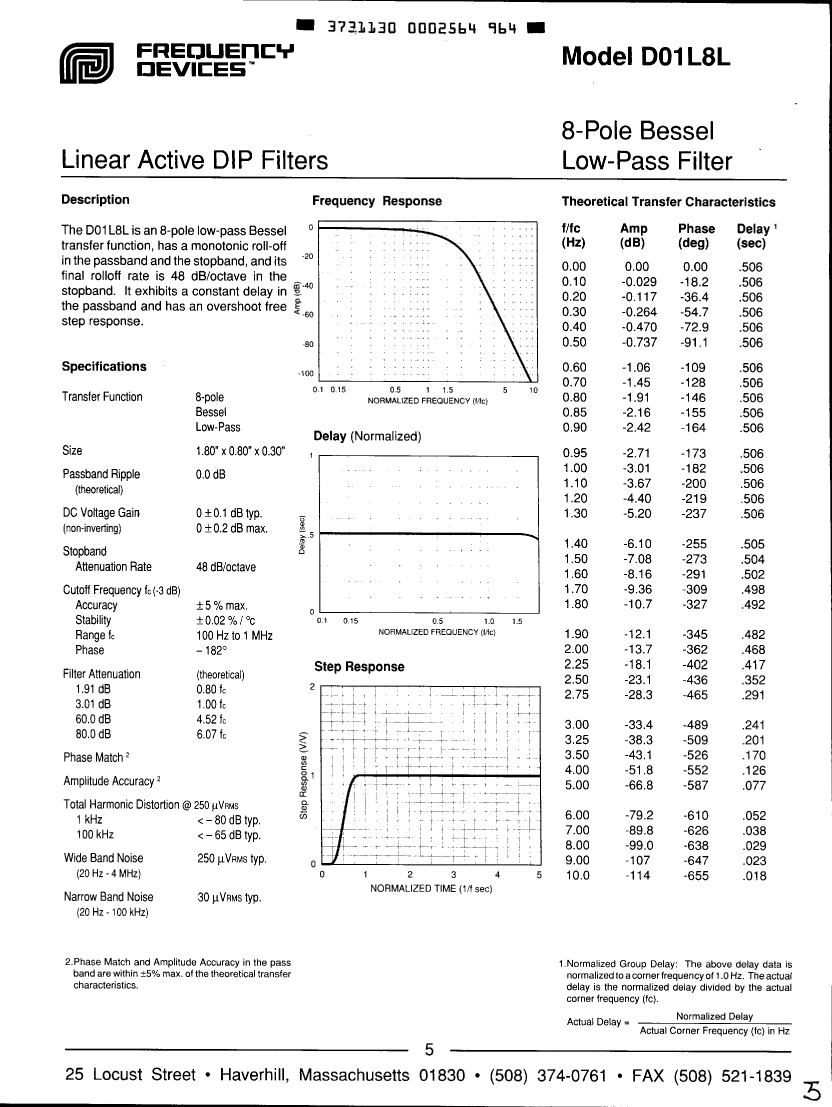

D01L8L-500KHZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> D01L8L-500KHZ

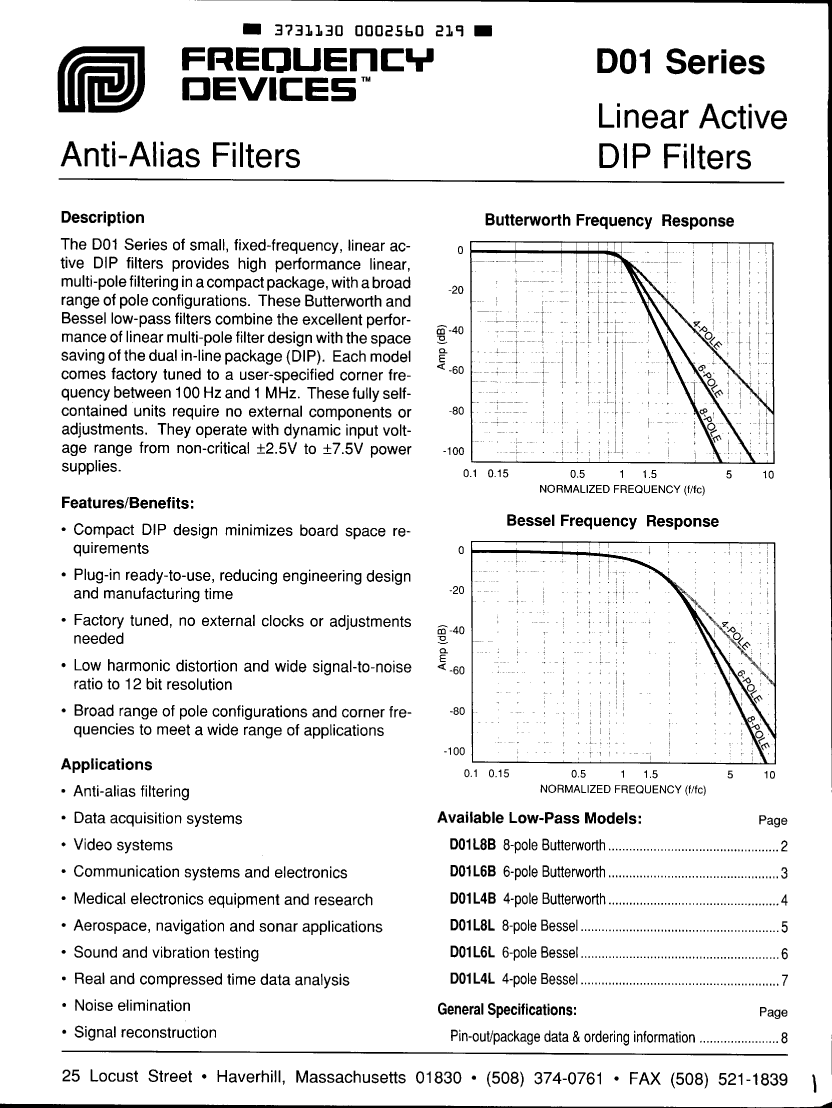

D01L8L-500KHZ: DescriptionActive Filter, 1 Func, Bessel, Lowpass, HYBRID, PDIP30,; CategoryAnalog mixed-signal IC filter; File Size754KB，8 Pages; ManufacturerFrequency Devices

Download Datasheet Parametric Compare View All

D01L8L-500KHZ Overview

Active Filter, 1 Func, Bessel, Lowpass, HYBRID, PDIP30,

D01L8L-500KHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP30,.6
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T30
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	30
Maximum operating temperature	70 °C
Minimum operating temperature
Order	8TH
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP30,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5 V
Certification status	Not Qualified
response	LOWPASS
Maximum supply current (Isup)	30 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
transfer characteristics	BESSEL
Base Number Matches	1

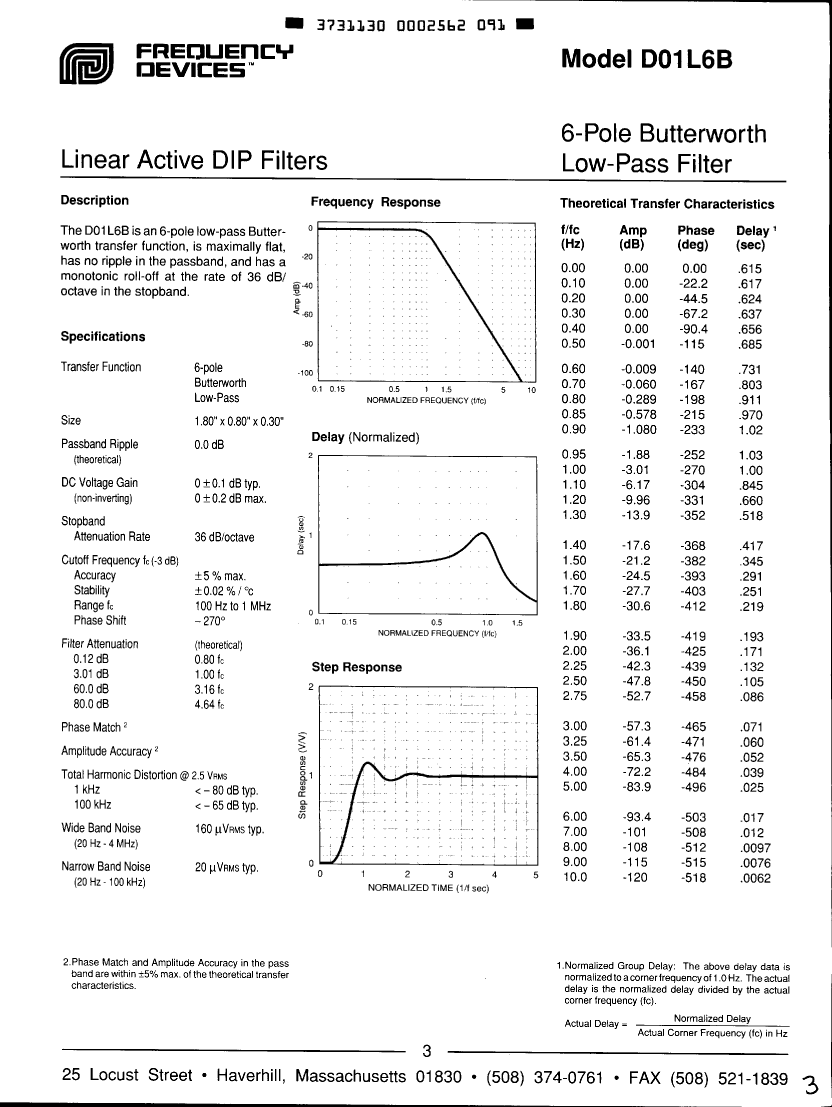

Preview

Download Datasheet

View All

D01L8L-500KHZ Related Products

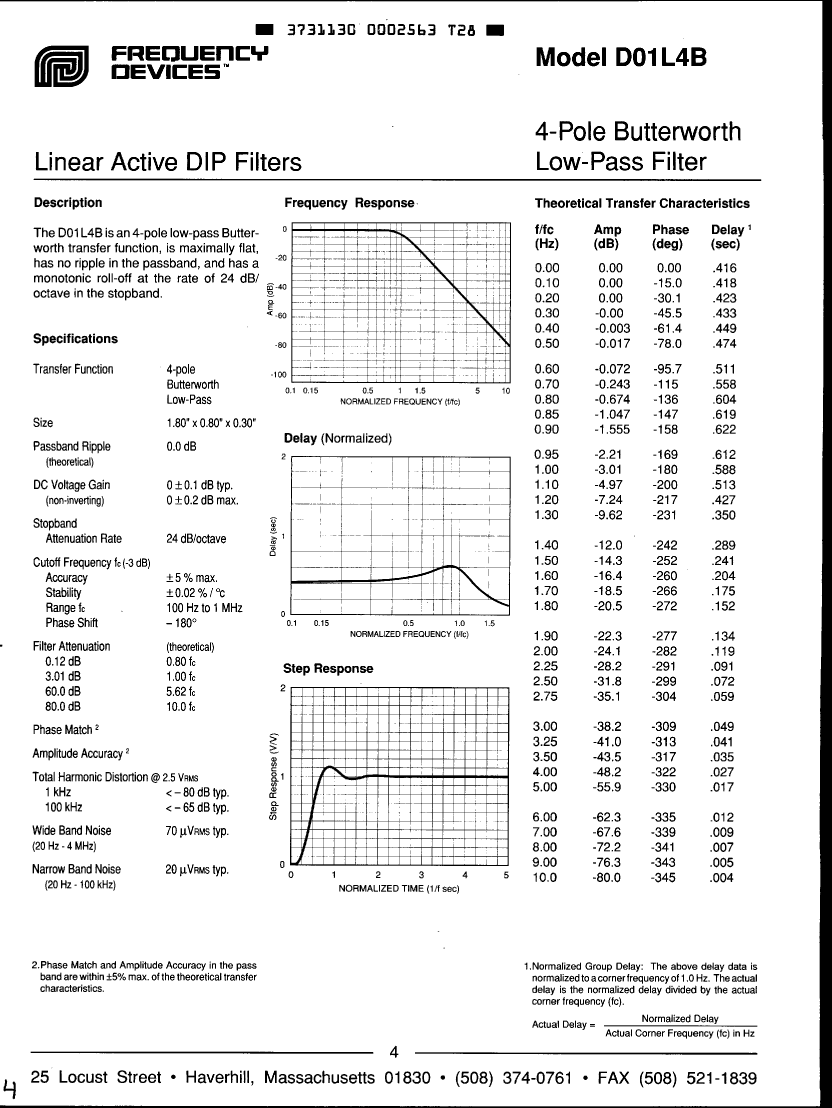

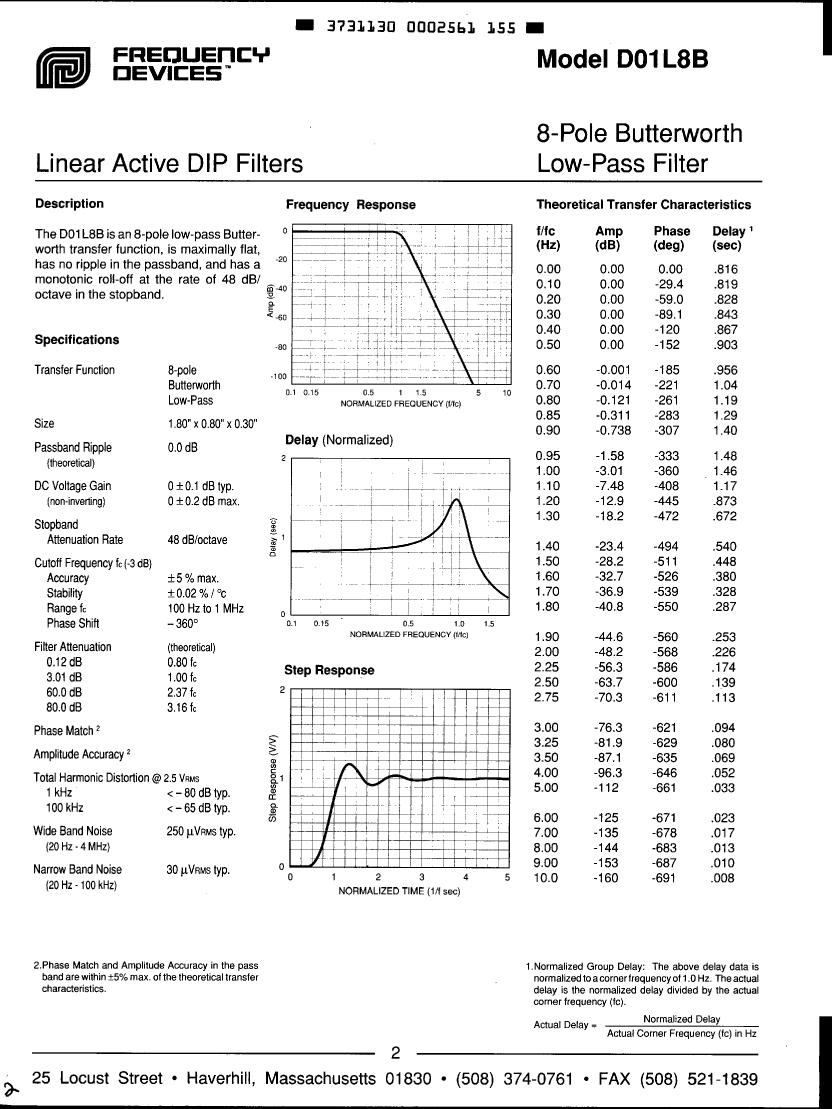

	D01L8L-500KHZ	D01L4L-500KHZ	D01L4B-500KHZ	D01L8B-500KHZ
Description	Active Filter, 1 Func, Bessel, Lowpass, HYBRID, PDIP30,	Active Filter, 1 Func, Bessel, Lowpass, HYBRID, PDIP30,	Active Filter, 1 Func, Butterworth, Lowpass, HYBRID, PDIP30,	Active Filter, 1 Func, Butterworth, Lowpass, HYBRID, PDIP30,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP30,.6	DIP, DIP30,.6	DIP, DIP30,.6	DIP, DIP30,.6
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T30	R-PDIP-T30	R-PDIP-T30	R-PDIP-T30
JESD-609 code	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1
Number of terminals	30	30	30	30
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Order	8TH	4TH	4TH	8TH
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP30,.6	DIP30,.6	DIP30,.6	DIP30,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
response	LOWPASS	LOWPASS	LOWPASS	LOWPASS
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
transfer characteristics	BESSEL	BESSEL	BUTTERWORTH	BUTTERWORTH
Maker	-	Frequency Devices	Frequency Devices	Frequency Devices
