DN74LS273S datasheet, PDF - EEWORLD Datasheet

DN74LS273S: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, TTL, PDSO20; Categorylogic logic; File Size121KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

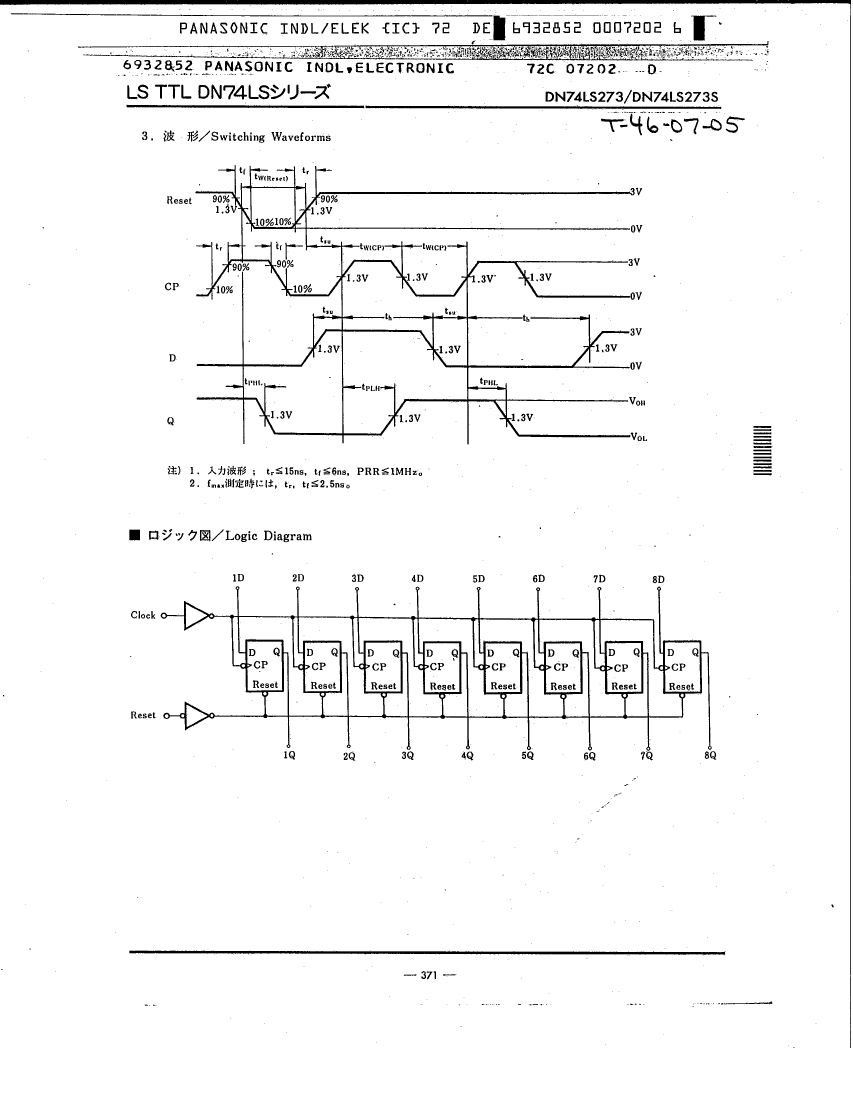

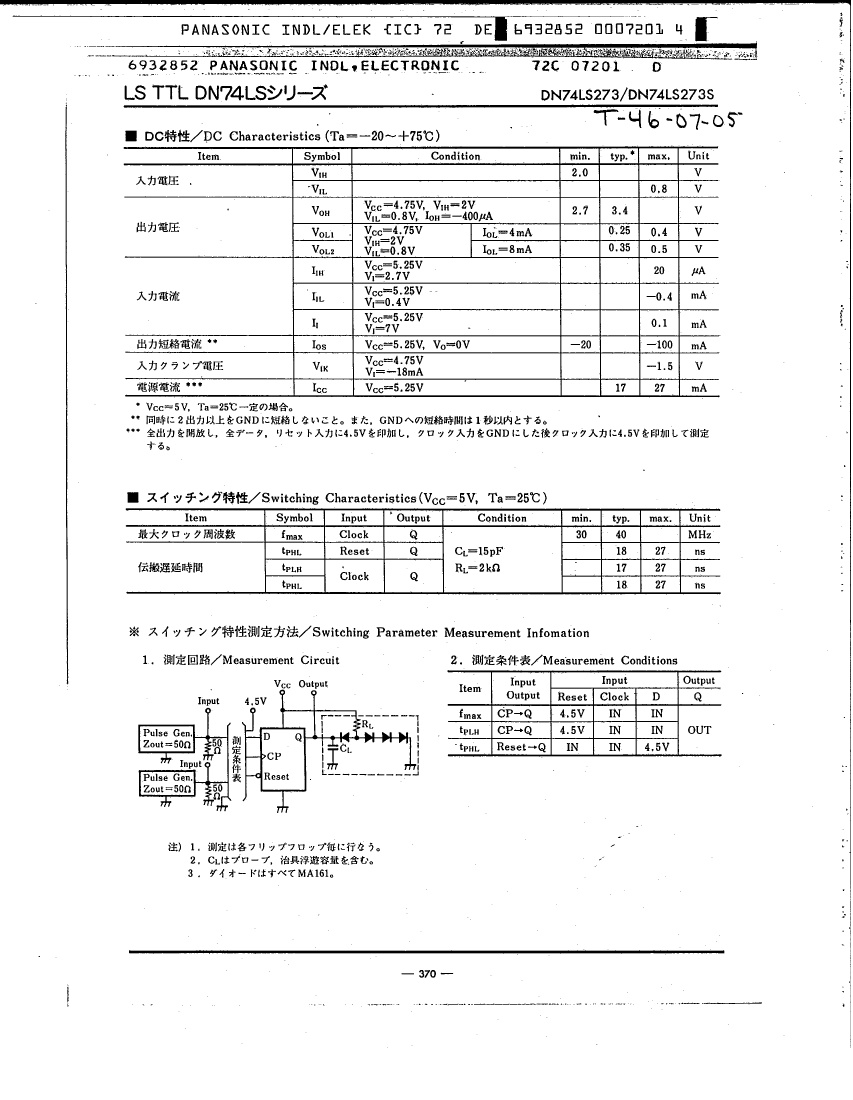

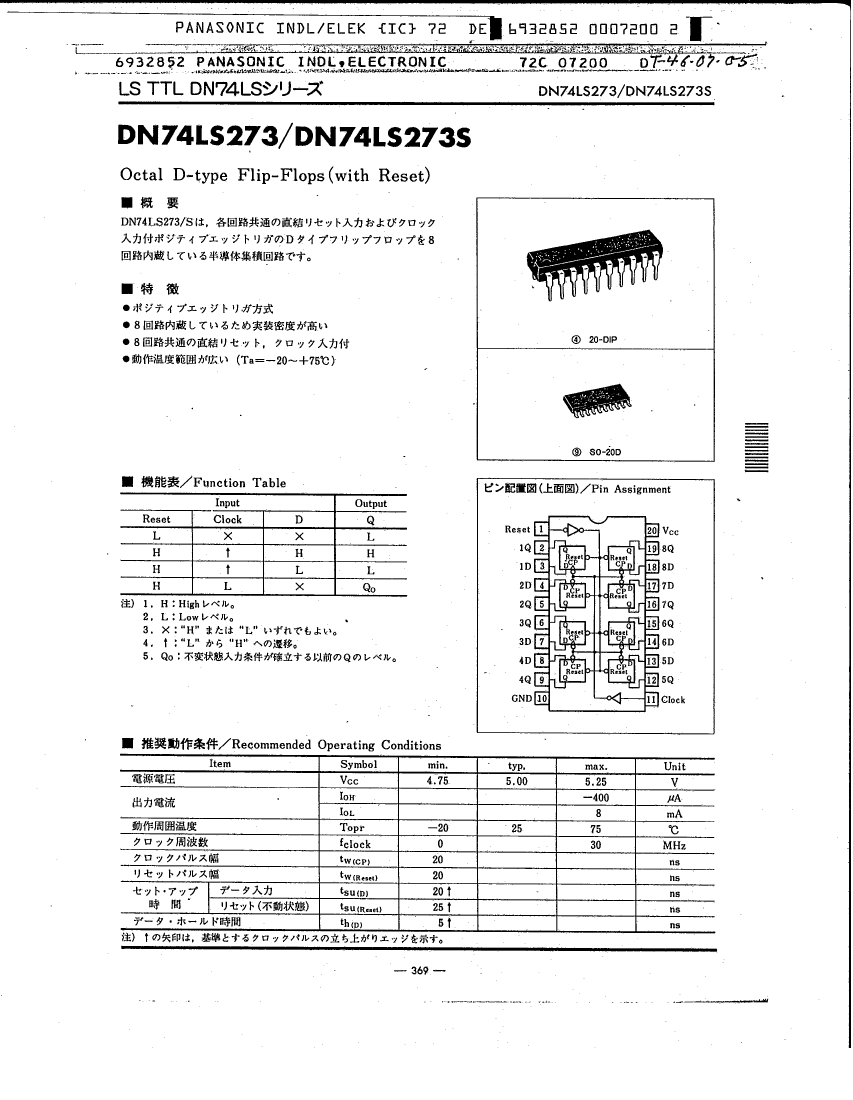

DN74LS273S Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, PDSO20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	30000000 Hz
MaximumI(ol)	0.008 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	27 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

	DN74LS273S	DN74LS273D	DN74LS273
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, PDSO20	Logic Circuit	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, PDIP20
package instruction	SOP, SOP20,.3	,	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown
Base Number Matches	1	1	1
Is it Rohs certified?	incompatible	-	incompatible
JESD-30 code	R-PDSO-G20	-	R-PDIP-T20
Logic integrated circuit type	D FLIP-FLOP	-	D FLIP-FLOP
Maximum Frequency@Nom-Sup	30000000 Hz	-	30000000 Hz
MaximumI(ol)	0.008 A	-	0.008 A
Number of functions	8	-	8
Number of terminals	20	-	20
Maximum operating temperature	70 °C	-	70 °C
Minimum operating temperature	-20 °C	-	-20 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	-	DIP
Encapsulate equivalent code	SOP20,.3	-	DIP20,.3
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	IN-LINE
power supply	5 V	-	5 V
Maximum supply current (ICC)	27 mA	-	27 mA
Certification status	Not Qualified	-	Not Qualified
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	YES	-	NO
technology	TTL	-	TTL
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal form	GULL WING	-	THROUGH-HOLE
Terminal pitch	1.27 mm	-	2.54 mm
Terminal location	DUAL	-	DUAL
Trigger type	POSITIVE EDGE	-	POSITIVE EDGE
