D164-1010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> D164-1010

D164-1010: DescriptionSingle Color LED Display Cluster, Red; CategoryLED optoelectronic/LED photoelectric; File Size88KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

D164-1010 Overview

Single Color LED Display Cluster, Red

D164-1010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
color	RED
Maximum forward current	0.8 A
JESD-609 code	e0
Number of functions	1
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

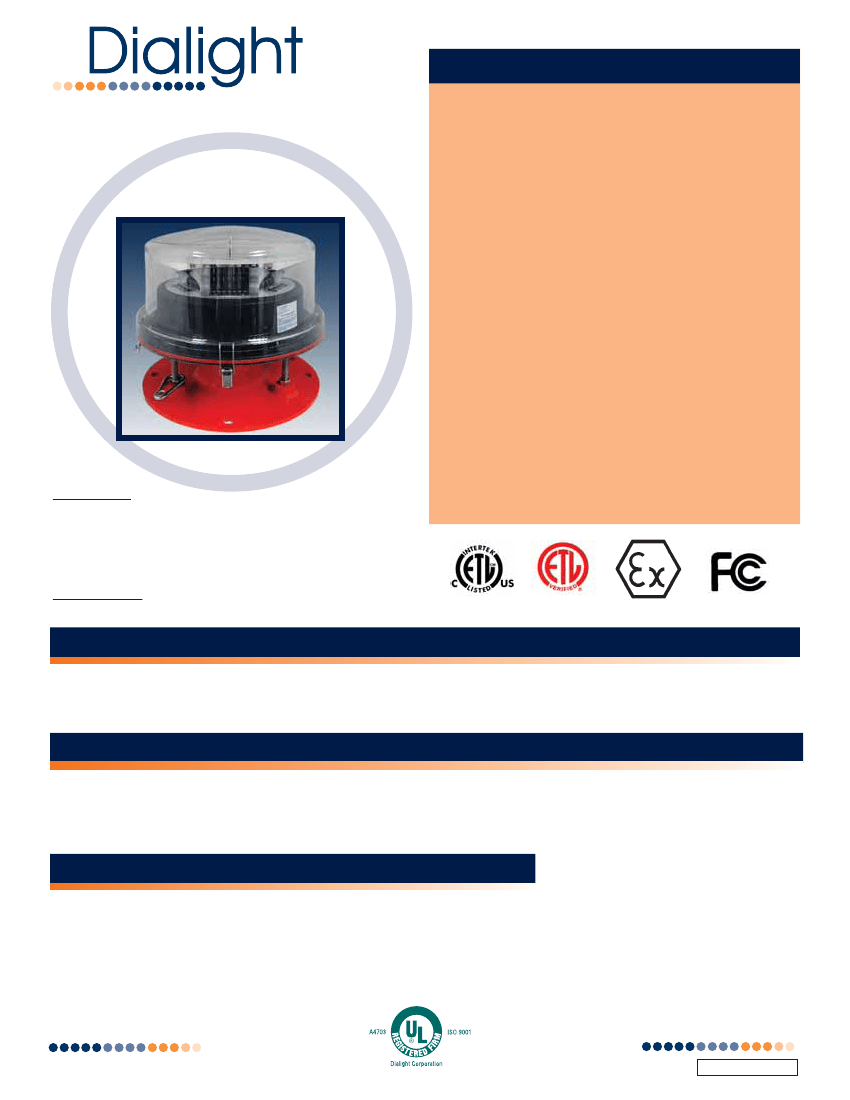

FEATURES / BENEFITS

HAZARDOUS LOCATION

D164 SERIES LED BASED

Medium Intensity Red Beacon

FAA Type L864

Suitable for all Class 1, Div 2, Groups A, B, C, D

hazardous environments T5 rated

5 year performance warranty

ATEX certified, equipment group II (surface industries),

category 3 (zone 2), T4 rated

Designed to replace 300mm incandescent

obstruction lighting fixtures with state of the art

high flux LED technology

Modular design for simple replacement of light engine

Can be flashed or steady burned

(controller not supplied)

Uses 90% less energy than an incandescent

Weighs less than 32 lbs.

Lasts years longer than an incandescent

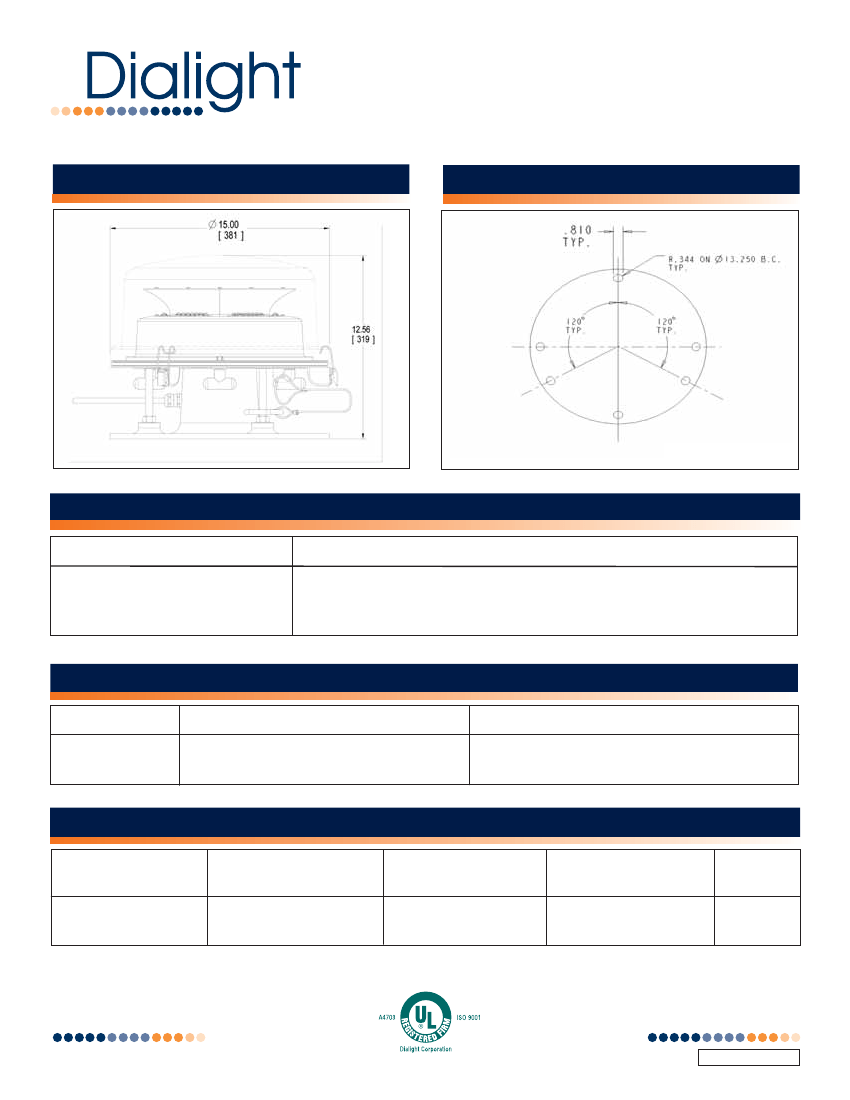

Beacon designed to mount onto existing bolt

pattern installations

Resistant to shock and vibration

IP66 / NEMA 4X rated

ETL Listed in compliance with UL1598 and UL844

for use in Class 1, Div 2 Hazardous Locations

Certified to:

FAA AC NO: 150/5345-43F

Canadian Aviation Regulation CAR 621.9

(Transport Canada)

ATEX, equipment group II (surface

industries), category 3 (zone 2), T4 rated

Compliant to:

ICAO

(Annex 14 - Fourth Edition, July 2004)

Ex nC IIC T4

APPLICATION

The Dialight D164 Series LED Based Class 1, Div 2 certified medium intensity red beacon was designed to easily

interface into existing systems or to be provided as a red lighting fixture for new installations. The beacon is used

to mark any obstacle that may provide hazards to aircraft navigation.

OPERATING CONDITIONS

The beacon is designed to withstand the dynamic conditions experienced in the most severe environments around

the world.

Temperatures ranging from -40 to +55 degrees Celsius, direct sunlight, wind blown rain, wind in excess of 150 mph,

high humidity, salt fog. Meets or exceeds industry EMI / RFI standards.

MATERIALS / FINISH

Cast aluminum base and stainless steel hardware.

Electro-statically applied powdercoat of aviation orange paint.

Dome is made of UV resistant polycarbonate and sealed to ensure

maximum life of the product.

Dialight Europe Ltd.

Exning Road, Newmarket, England, CB8 0AX

Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735

www.dialight-obstruction-lights.com

A Subsidiary of Dialight PLC

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778

www.dialight.com

MDTF864X002_N
