D1809N32T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D1809N32T

D1809N32T: DescriptionRectifier Diode, 1 Phase, 1 Element, 2452A, 3200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size256KB，4 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric Compare View All

D1809N32T Overview

Rectifier Diode, 1 Phase, 1 Element, 2452A, 3200V V(RRM), Silicon,

D1809N32T Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2.15 V
JESD-30 code	O-CEDB-N2
Maximum non-repetitive peak forward current	27500 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	160 °C
Maximum output current	2452 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	3200 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Base Number Matches	1

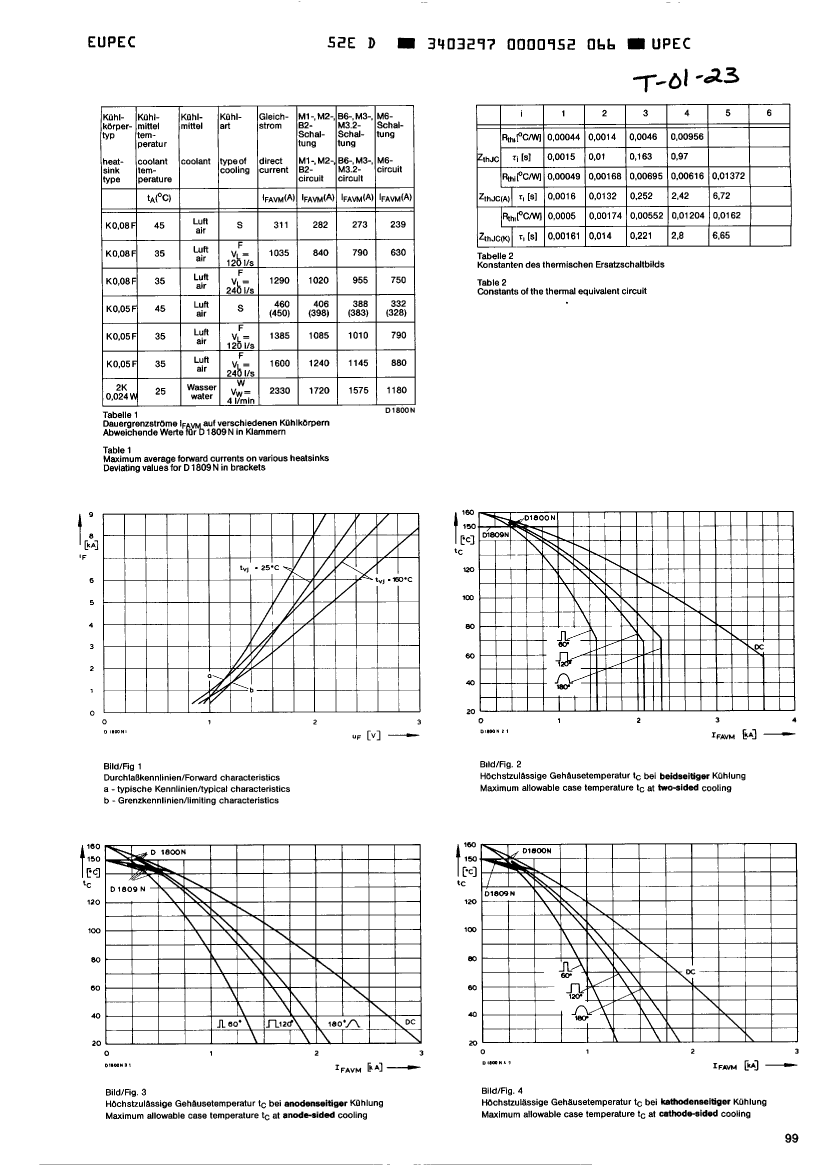

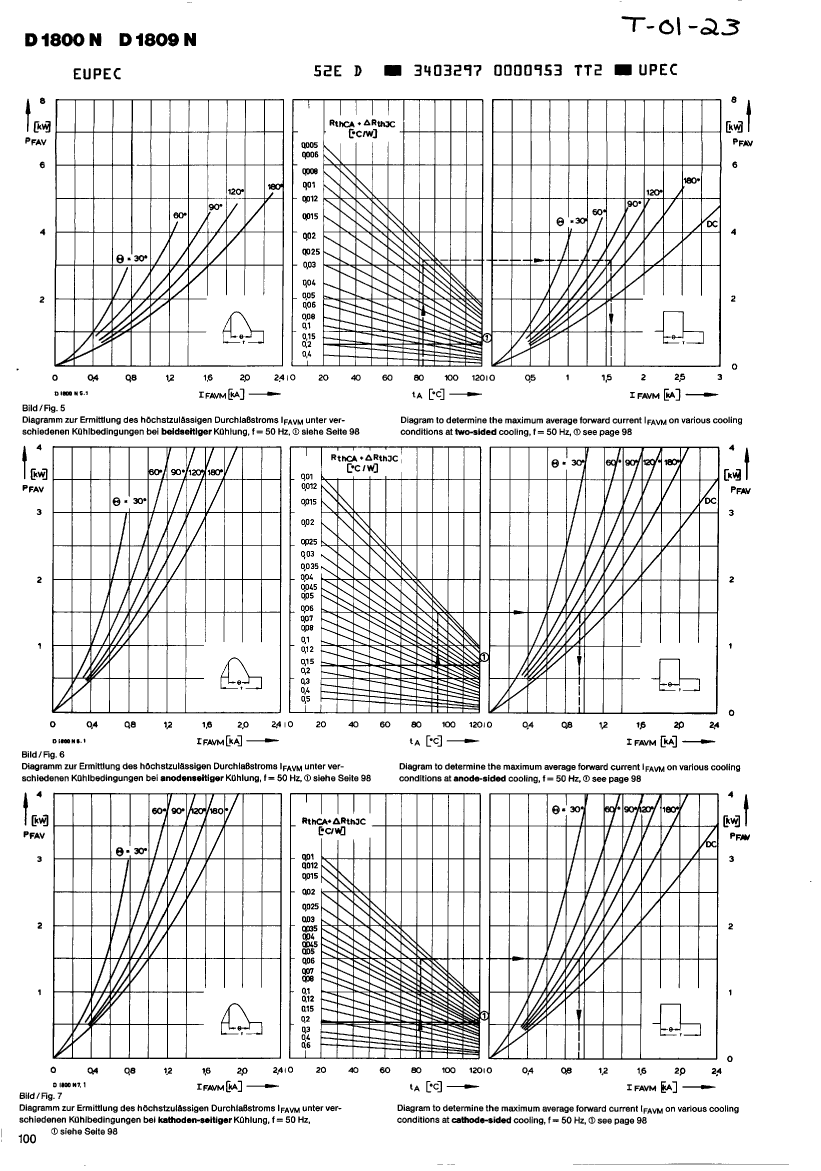

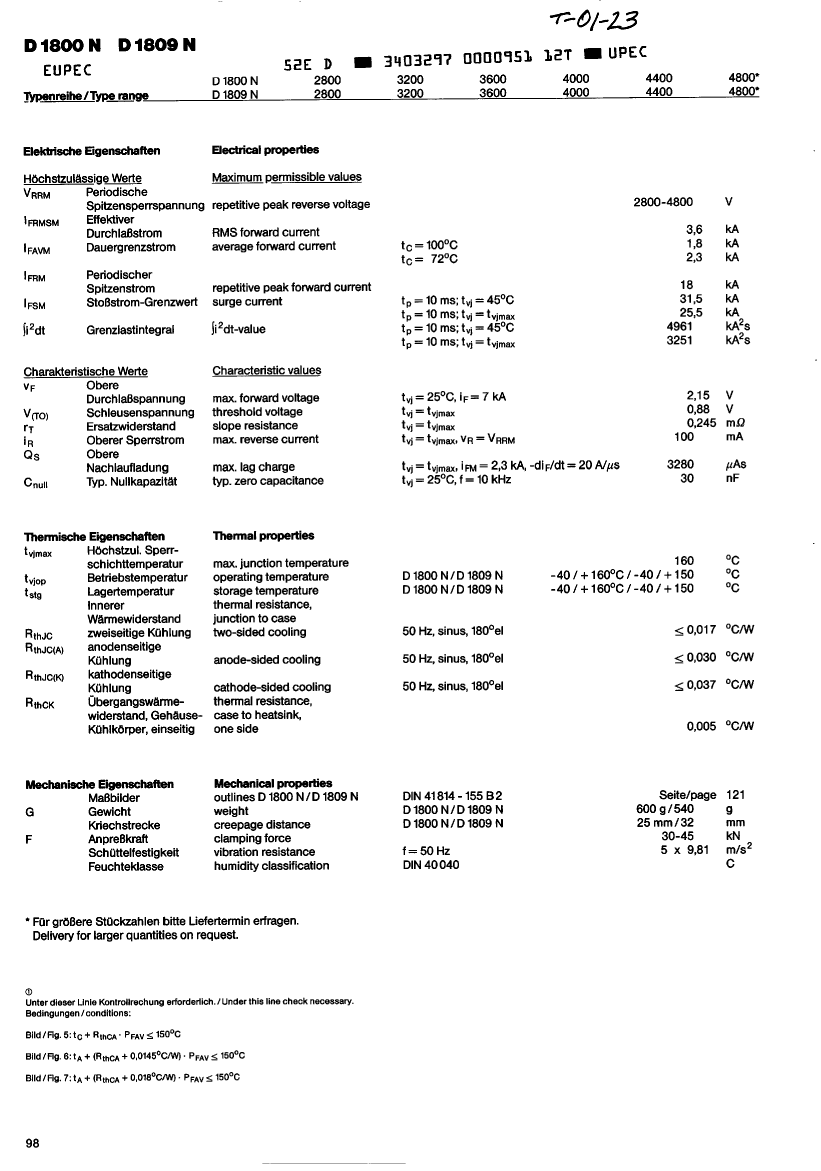

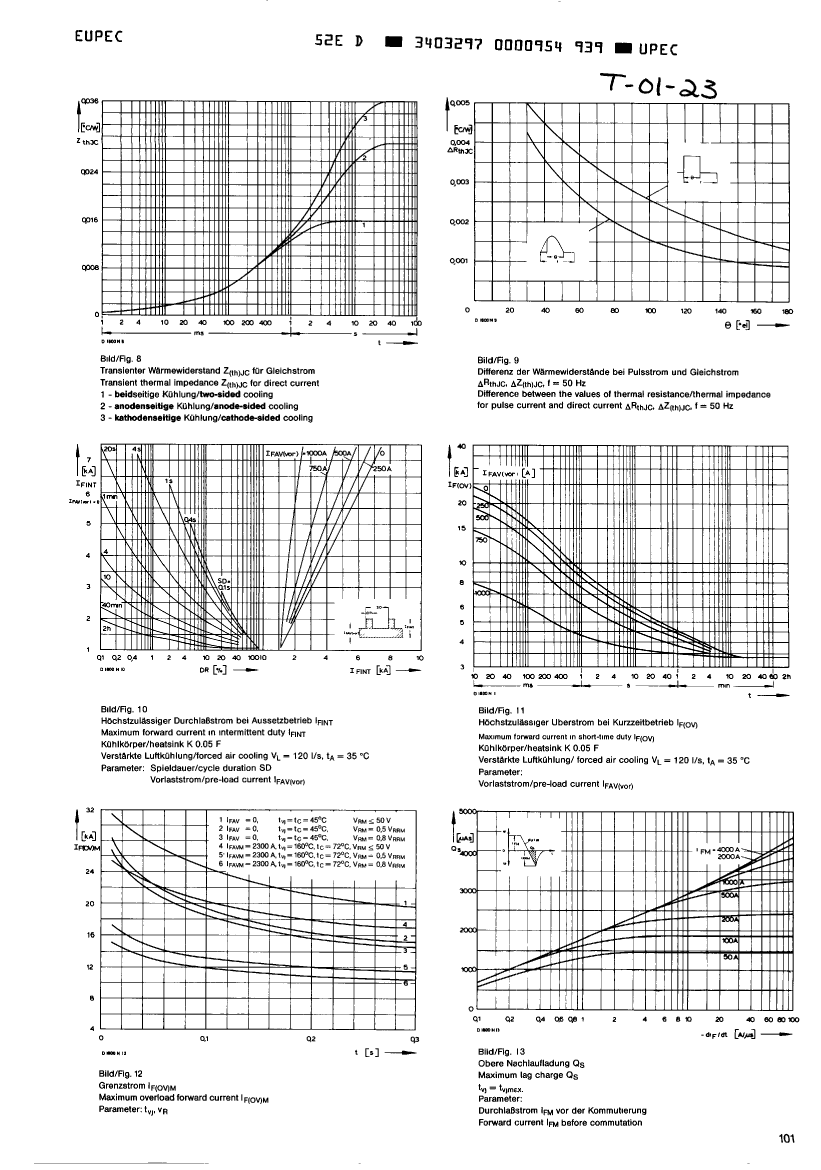

Preview

Download Datasheet

View All

D1809N32T Related Products

	D1809N32T	D1809N28T	D1809N36T	D1809N40T	D1809N44T	D1809N48T
Description	Rectifier Diode, 1 Phase, 1 Element, 2452A, 3200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2300A, 2800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2452A, 3600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2452A, 4000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2452A, 4400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2452A, 4800V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
application	GENERAL PURPOSE	POWER	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2.15 V	2.15 V	2.15 V	2.15 V	2.15 V	2.15 V
JESD-30 code	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Maximum non-repetitive peak forward current	27500 A	25500 A	27500 A	27500 A	27500 A	27500 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	160 °C	160 °C	160 °C	160 °C	160 °C	160 °C
Maximum output current	2452 A	2300 A	2452 A	2452 A	2452 A	2452 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	3200 V	2800 V	3600 V	4000 V	4400 V	4800 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END	END	END
Maker	-	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]
