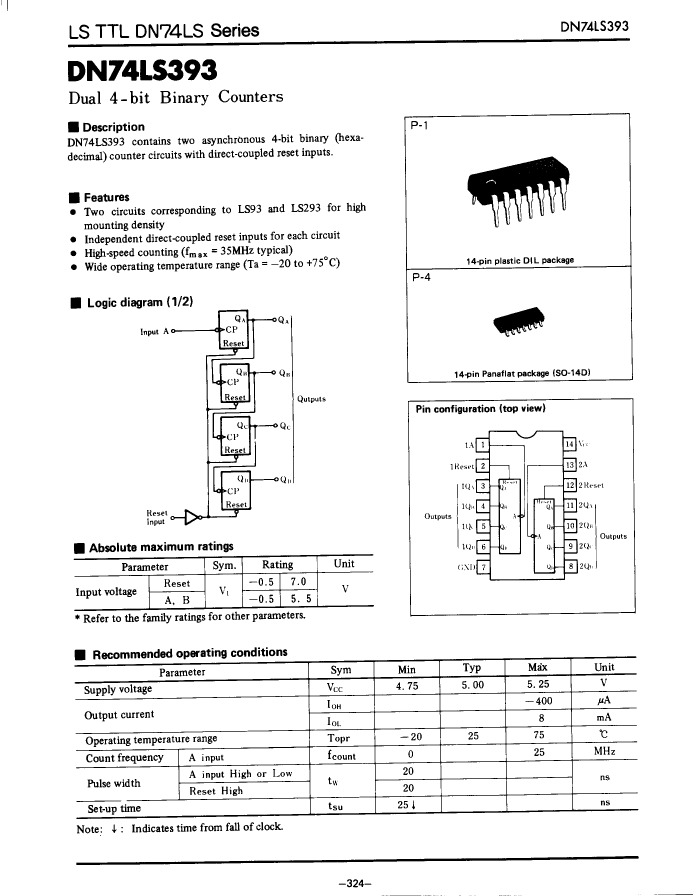

Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, TTL, PDIP14, PLASTIC, DIP-14

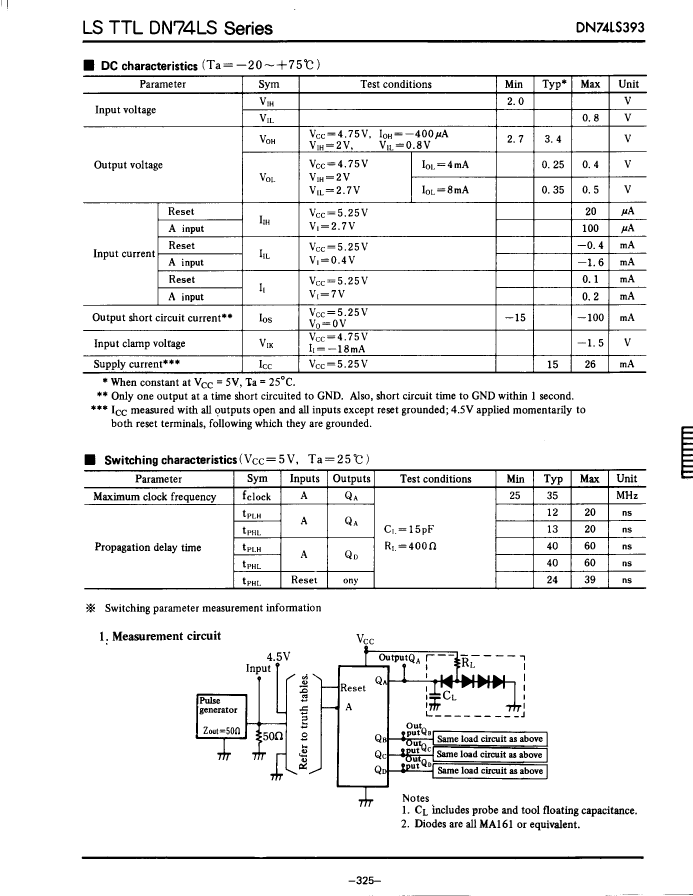

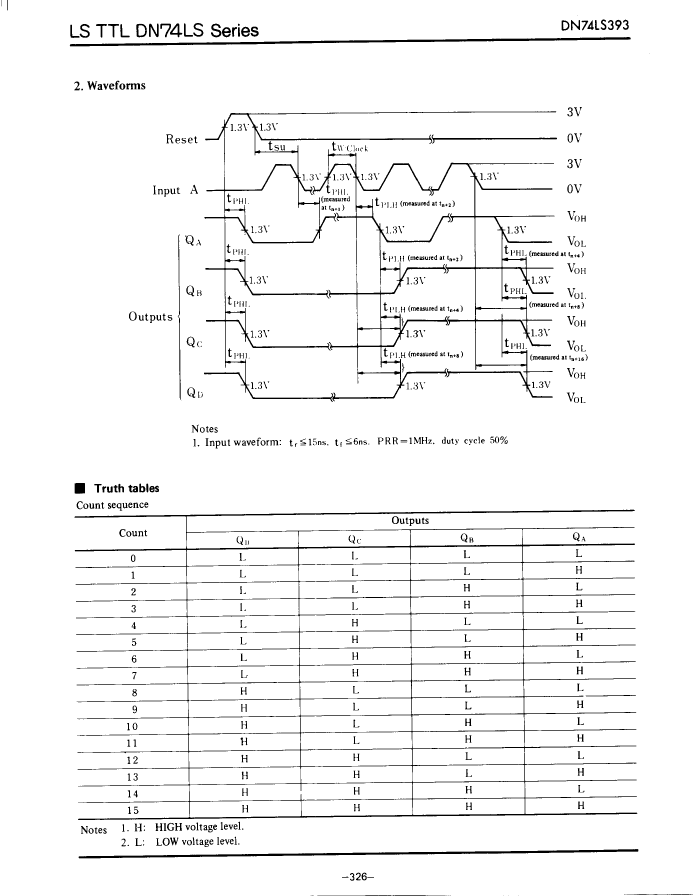

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| Counting direction | UP |
| series | LS |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| Load/preset input | NO |
| Logic integrated circuit type | BINARY COUNTER |
| Maximum Frequency@Nom-Sup | 25000000 Hz |
| MaximumI(ol) | 0.008 A |
| Operating mode | ASYNCHRONOUS |
| Number of digits | 4 |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 26 mA |
| propagation delay (tpd) | 60 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | NEGATIVE EDGE |
| minfmax | 25 MHz |
| Base Number Matches | 1 |
