DPS-501-BZ

Description
Piano Dip Switch, 1 Switches, 4PST, Off-on, Vertical, 0.025A, 24VDC, Solder Terminal, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size773KB，2 Pages
ManufacturerE-tec Interconnect Ltd.
Environmental Compliance
Download Datasheet Parametric View All

DPS-501-BZ Overview

Piano Dip Switch, 1 Switches, 4PST, Off-on, Vertical, 0.025A, 24VDC, Solder Terminal, Through Hole-straight

DPS-501-BZ Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Actuator angle
Actuator typePIANO
Other featuresROHS COMPLIANT
body height9.7028 mm
Body length or diameter11.7094 mm
Center contact platingTIN
Maximum contact current (DC)0.025 A
Contact (DC) maximum rated R load0.025A@24VDC
Contact functionOFF-ON
Contact resistance0.1 mΩ
Maximum contact voltage (DC)24 V
Dielectric withstand voltage500VDC V
Electrical life1000 Cycle(s)
End contact platingTIN
Insulation resistance1000000000 Ω
JESD-609 codee3
Manufacturer's serial numberDPS
Installation featuresTHROUGH HOLE-STRAIGHT
Number of switching segments1
Maximum operating temperature70 °C
Minimum operating temperature-25 °C
sealEPOXY
SolderabilityMIL-STD
surface mountNO
Switch actionVERTICAL
switch function4PST
Switch typePIANO DIP SWITCH
Terminal surfaceTin (Sn)
Terminal length0.118 inch
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet

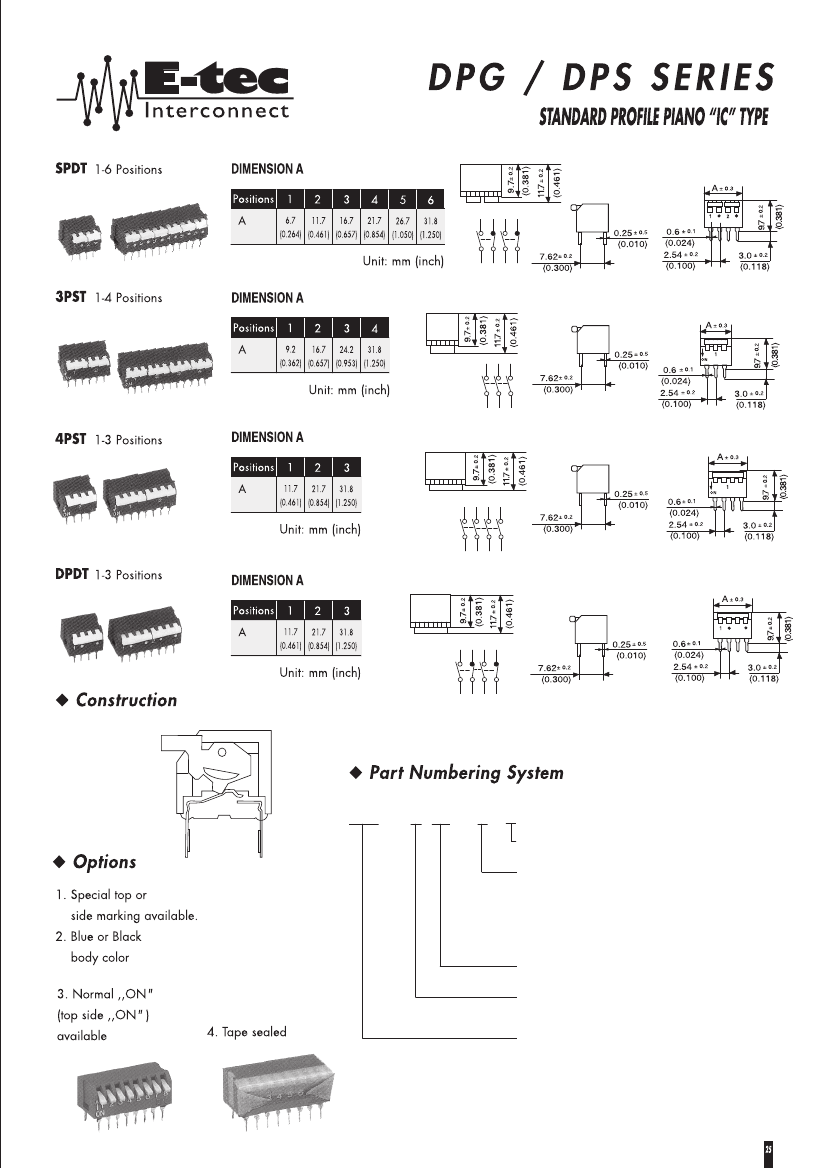

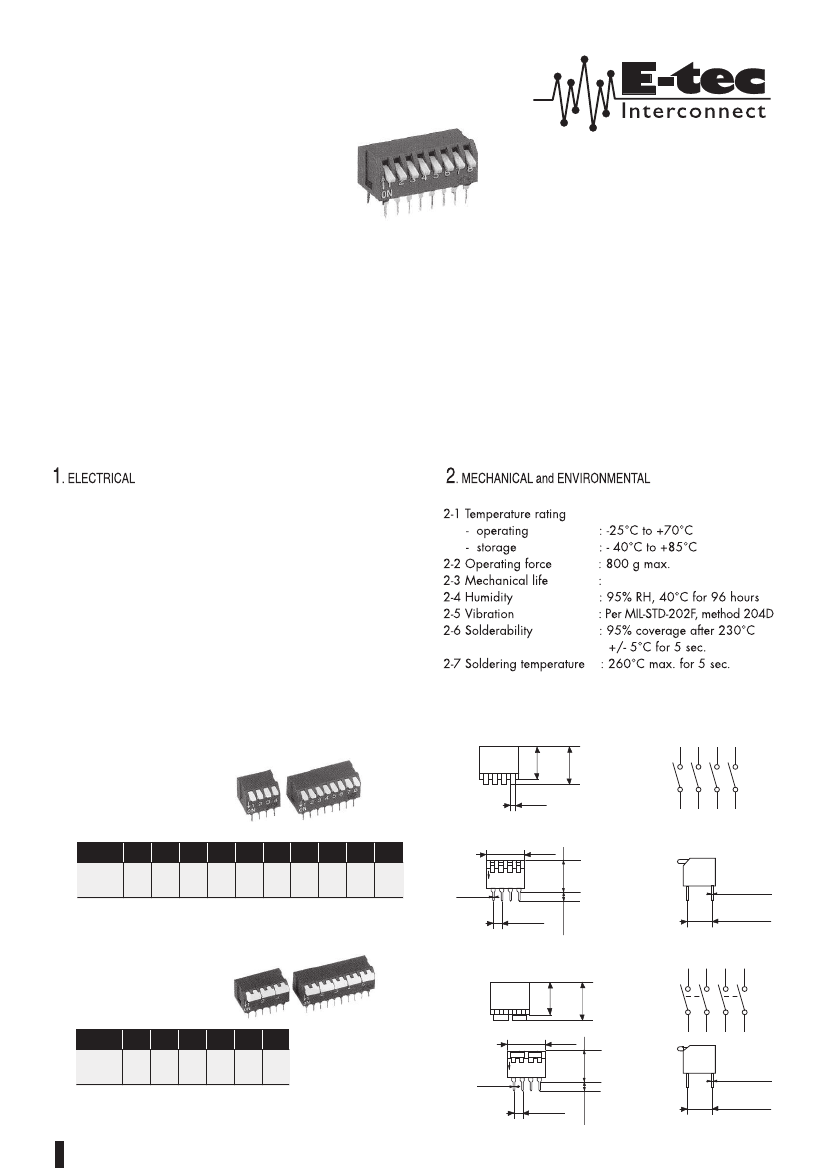

DPG / DPS SERIES
STANDARD PROFILE PIANO “IC” TYPE
◆
Features
• Edge actuated (piano type) easy setting on closely racked
PCB.
• Tactile response is performed directly by larger contact
pressure to ensure very stable contact.
• All UL 94V-0 fire retardant plastics used.
• Bottom epoxy sealed standard to ensure free of flux
immersion during wave soldering.
• Contact wiping on make and break.
• Gold plated (
gold/gold
) or tin plated
contact to ensure low contact resistance and long
operation life.
• Ideal for data processing, communications, remote
controls and burglar alarm systems use, where manual
programming is required.
◆
Speci cations
1-1 Contact Rating
- switching
- non-switching
1-2 Contact Resistance
- initial
- after life test
1-3 Insulation Resistance
1-4 Dielectric Strength
1-5 Capacitance between
adjacent switches
: 25 mA, 24 VDC
: 100 mA
:
:
:
:
50 mΩ max.
100 mΩ max.
1000 MΩ min. at 100 VDC
500 VDC for 1 min.
1000 operations
: 5pF max.
◆
Dimensions and circuitry
11.3
±
0.2
(0.445)
SPST
2-12 Positions
1.4
DIMENSION A
Position
A
2
6.7
(0.264)
(0.055)
3
9.2
(0.362)
4
11.7
(0.461)
5
14.2
(0.559)
6
16.7
(0.657)
7
8
9
24.2
(0.953)
10
26.7
(1.050)
12
31.8
(1.250)
0.6
±
0.1
(0.024)
1
ON
A
±
0.3
2
3
4
(0.381)
9.7
±
0.2
21.7
19.2
(0.756) (0.854)
(0.381)
9.7
±
0.2
0.25
±
0.05
(0.010)
7.62
±
0.2
(0.300)
2.54
±
0.2
(0.100)
DPST
1-6 Positions
(0.381)
9.7
±
0.2
11.7
±
0.2
9.7
±
0.2
(0.461)
(0.381)
DIMENSION A
Position
A
1
2
3
4
5
6
0.6
±
0.1
(0.024)
ON
A
±
0.3
1
2
6.7
11.7
16.7
21.7
31.8
26.7
(0.264) (0.461) (0.657) (0.854) (1.050) (1.250)
3.0
±
0.2
Unit: mm (inch)
(0.118)
0.25
±
0.05
(0.010)
7.62
±
0.2
(0.300)
2.54
±
0.2
(0.100)
24
(0.118)
3.0
±
0.2
Unit: mm (inch)
