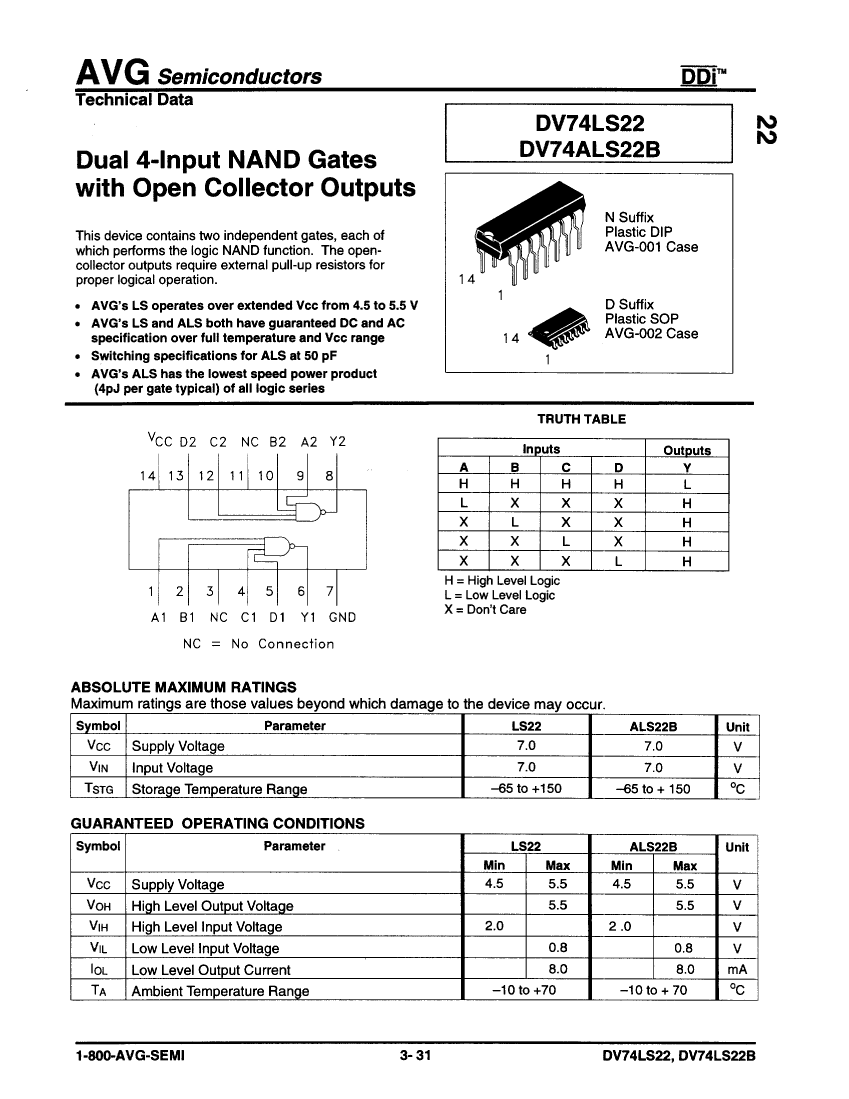

NAND Gate, LS Series, 2-Func, 4-Input, TTL, PDSO14, PLASTIC, SOP-14

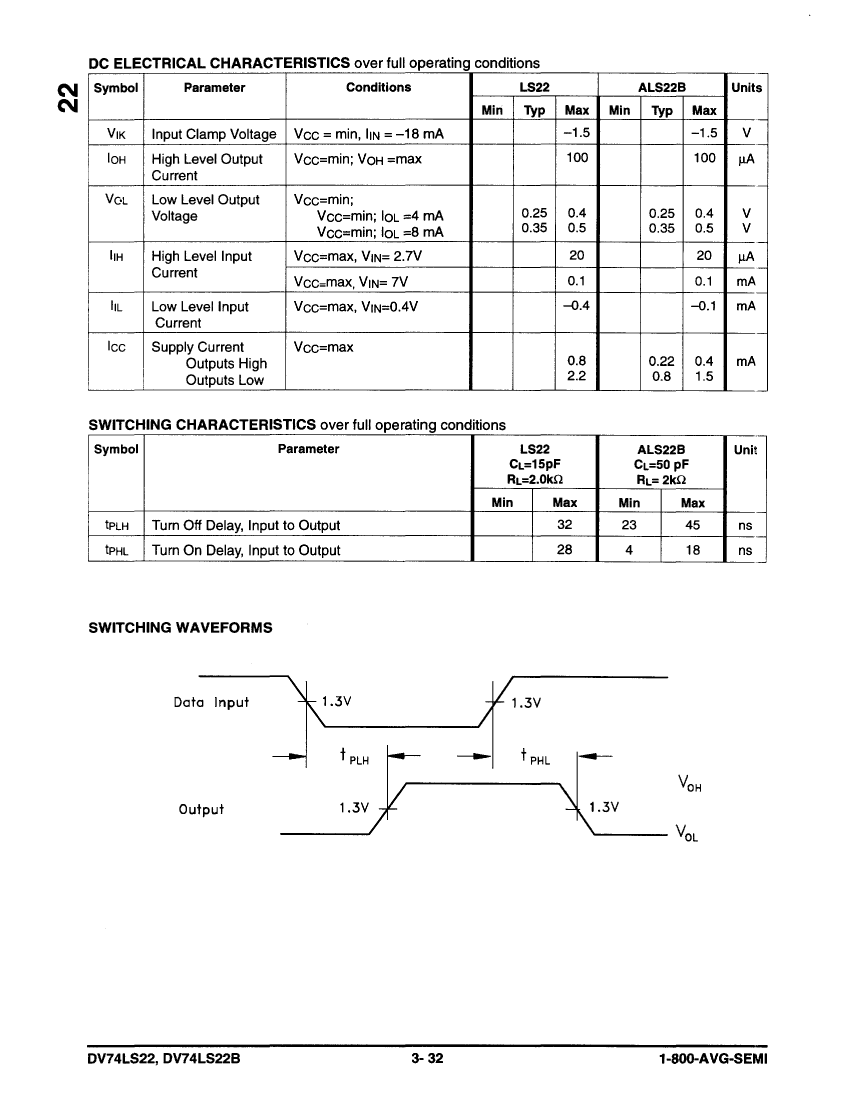

| Parameter Name | Attribute value |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | R-PDSO-G14 |
| length | 8.65 mm |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | NAND GATE |
| Number of functions | 2 |
| Number of entries | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -10 °C |
| Output characteristics | OPEN-COLLECTOR |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum supply current (ICC) | 2.2 mA |
| propagation delay (tpd) | 32 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.9 mm |
| Base Number Matches | 1 |
| DV74LS22D | DV74ALS22BD | DV74LS22N | DV74ALS22BN | |
|---|---|---|---|---|
| Description | NAND Gate, LS Series, 2-Func, 4-Input, TTL, PDSO14, PLASTIC, SOP-14 | NAND Gate, ALS Series, 2-Func, 4-Input, TTL, PDSO14, PLASTIC, SOP-14 | NAND Gate, LS Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14 | NAND Gate, ALS Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14 |
| Parts packaging code | SOIC | SOIC | DIP | DIP |
| package instruction | SOP, | SOP, | DIP, | PLASTIC, DIP-14 |
| Contacts | 14 | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | LS | ALS | LS | ALS |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 | R-PDIP-T14 |
| length | 8.65 mm | 8.65 mm | 18.86 mm | 18.86 mm |
| Load capacitance (CL) | 15 pF | 50 pF | 15 pF | 50 pF |
| Logic integrated circuit type | NAND GATE | NAND GATE | NAND GATE | NAND GATE |
| Number of functions | 2 | 2 | 2 | 2 |
| Number of entries | 4 | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -10 °C | -10 °C | -10 °C | -10 °C |
| Output characteristics | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE |
| Maximum supply current (ICC) | 2.2 mA | 1.5 mA | 2.2 mA | 1.5 mA |
| propagation delay (tpd) | 32 ns | 45 ns | 32 ns | 45 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm | 4.69 mm | 4.69 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 3.9 mm | 3.9 mm | 7.62 mm | 7.62 mm |
