DSP3207-66: DescriptionDigital Signal Processor, 32-Ext Bit, 66.67MHz, MOS, PQFP132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，36 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric Compare View All

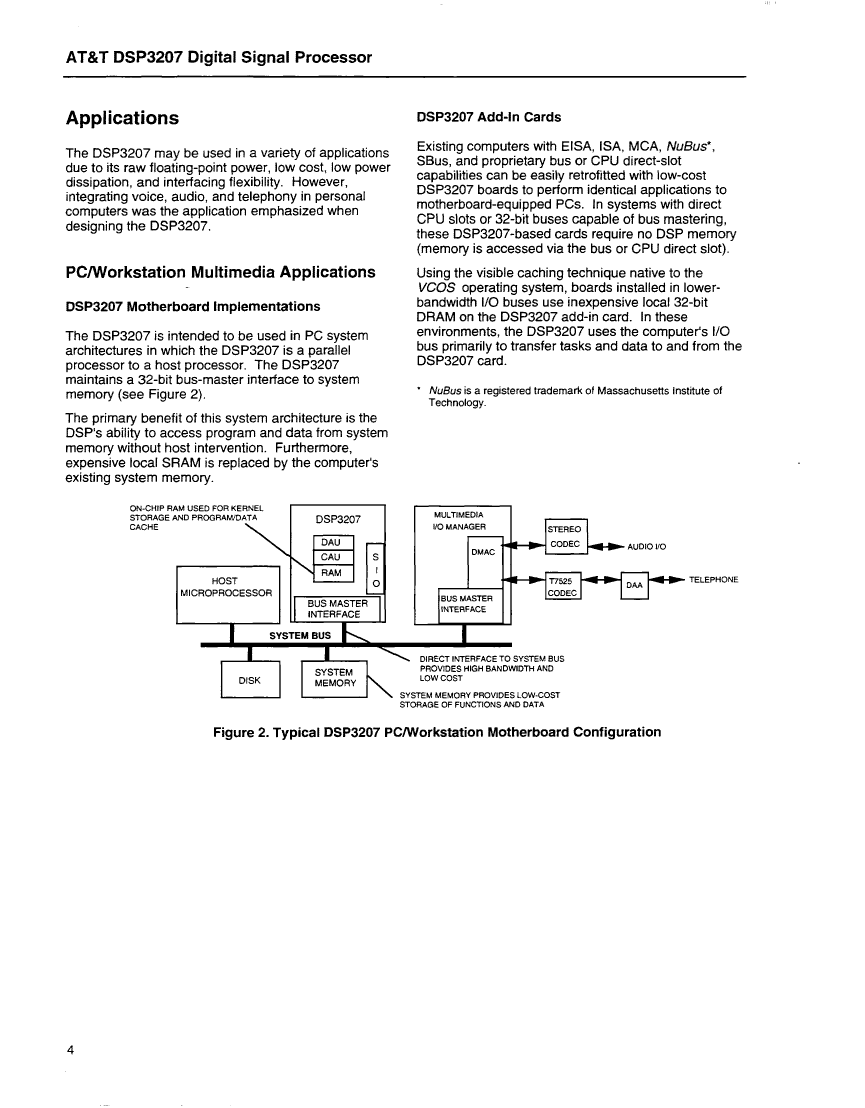

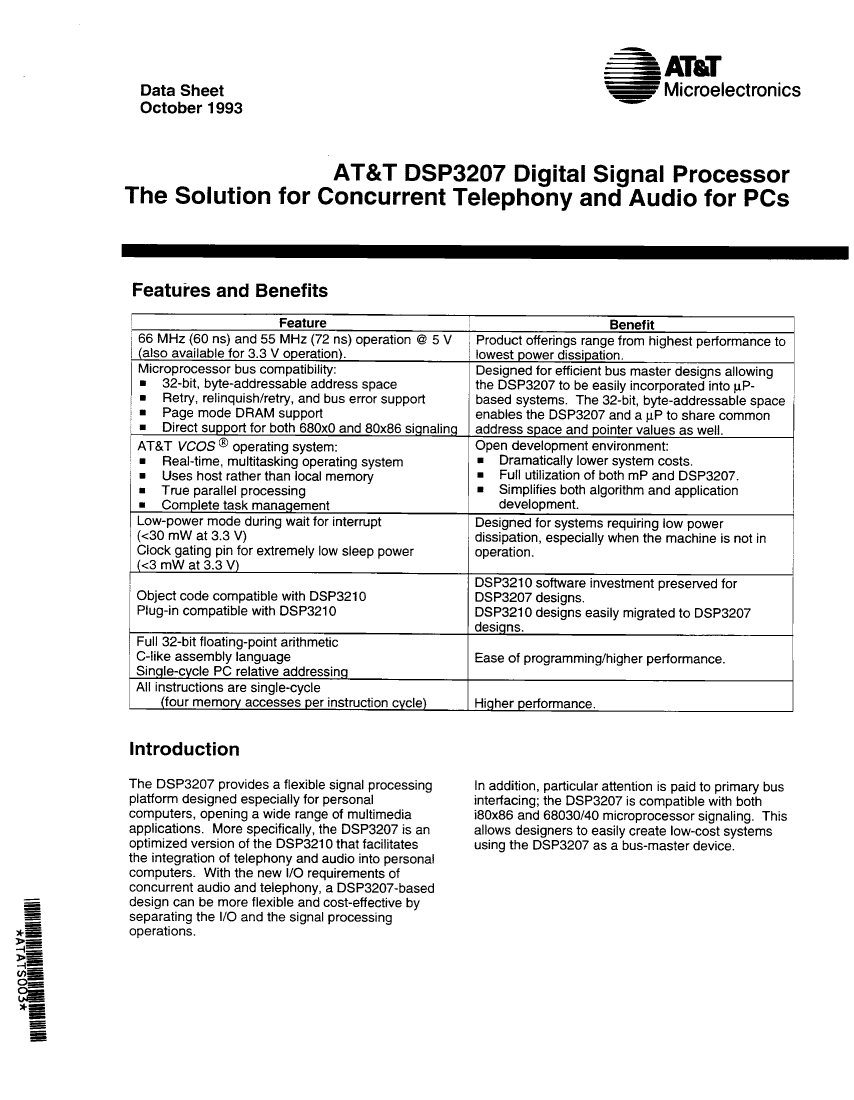

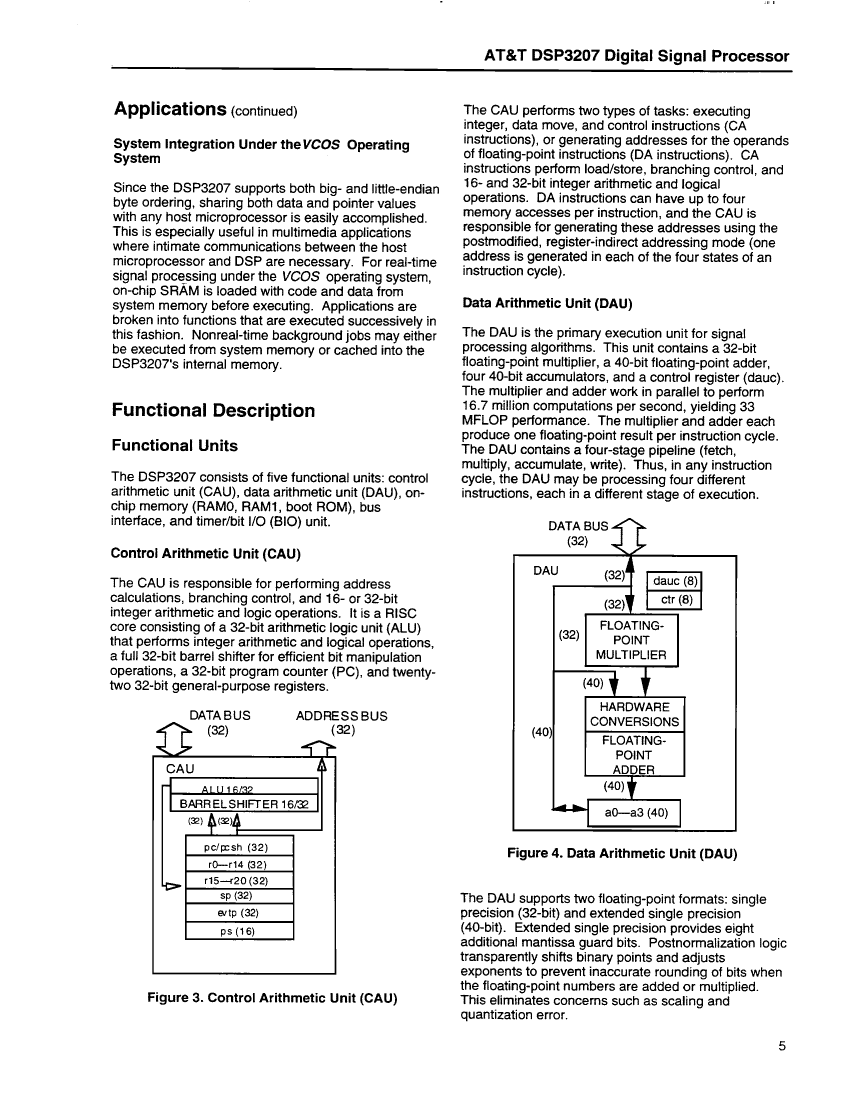

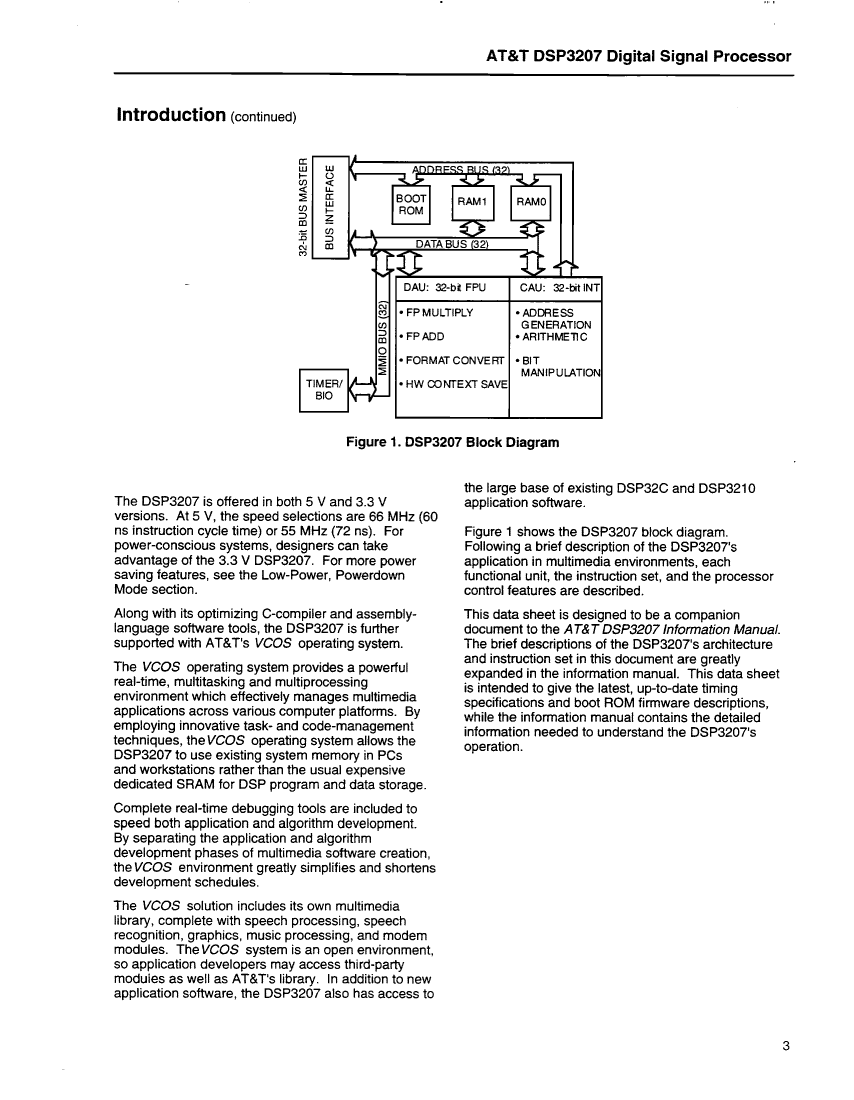

DSP3207-66 Overview

Digital Signal Processor, 32-Ext Bit, 66.67MHz, MOS, PQFP132

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.3
Address bus width	32
barrel shifter	YES
boundary scan	NO
maximum clock frequency	66.67 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	YES
Internal bus architecture	SINGLE
JESD-30 code	S-PQFP-G132
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	132
Number of timers	1
On-chip data RAM width	32
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	2000
Maximum slew rate	282 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER
Base Number Matches	1

	DSP3207-66	DSP3207-55
Description	Digital Signal Processor, 32-Ext Bit, 66.67MHz, MOS, PQFP132	Digital Signal Processor, 32-Ext Bit, 55.56MHz, MOS, PQFP132
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.3	3A001.A.3
Address bus width	32	32
barrel shifter	YES	YES
boundary scan	NO	NO
maximum clock frequency	66.67 MHz	55.56 MHz
External data bus width	32	32
Format	FLOATING POINT	FLOATING POINT
Integrated cache	YES	YES
Internal bus architecture	SINGLE	SINGLE
JESD-30 code	S-PQFP-G132	S-PQFP-G132
low power mode	YES	YES
Number of external interrupt devices	2	2
Number of terminals	132	132
Number of timers	1	1
On-chip data RAM width	32	32
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
RAM (number of words)	2000	1024
Maximum slew rate	282 mA	244 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER
Base Number Matches	1	1
