DVME28 Series
HIGH RELIABILITY HYBRID
EMI FILTERS
DESCRIPTION
The DVME series of hybrid EMI filters is operable
over the full military (-55 ° to +125 ° temperature
C
C)
range with no power derating. The DVME EMI filter
is designed to filter conducted emissions of two
DVFL series DC-DC converters.
These filters are designed and manufactured in a
facility qualified to ISO9001 and certified to MIL-
PRF-38534 and MIL-STD-883.
This product may incorporate one or more of the
following U.S. patents:
5,784,266
5,790,389
5,963,438
5,999,433
6,005,780
6,084,792
6,118,673
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
High Reliability
Wide Input Voltage Range: 0 to 50 Volts per
MIL-STD-704
Up to 15.0 Amps Maximum Current
40 dB Minimum Attenuation at 500 kHz
Industry Standard Pinout
High Input Transient Voltage: 80 Volts for 1 sec
per MIL-STD-704A
Precision Seam Welded Hermetic Package
Custom Versions Available
Additional Environmental Screening Available
Meets MIL-STD-461C and MIL-STD-461D EMC
Requirements
Protects Against Conducted Susceptibility
Specified in MIL-STD-461C, CS01 and CS02
MIL-PRF-38534 Element Evaluated
Components

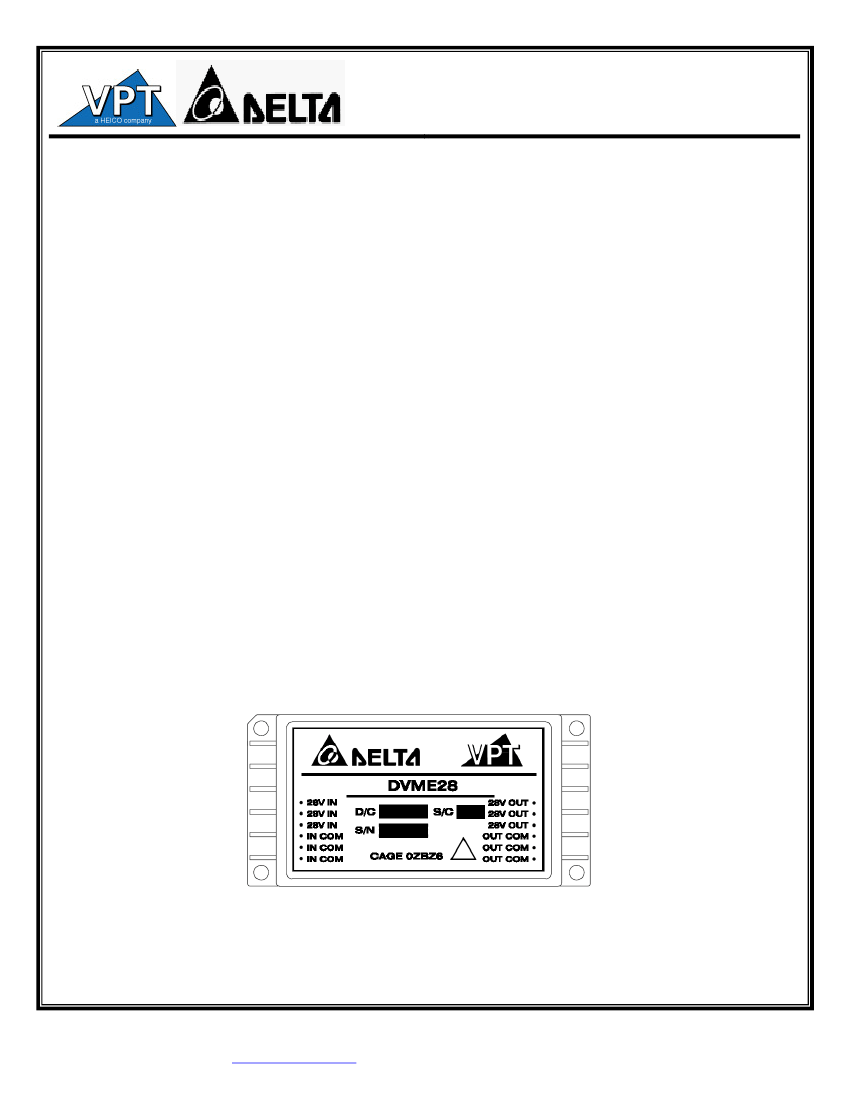

Figure 1
– DVME28 EMI Filter
(Exact
marking may differ from that shown)
DVME28-6.0
http://www.vptpower.com
Sales Information:
Phone: (425) 353-3010
Fax: (425) 353-4030
E-mail: vptsales@vptpower.com
1
DVME28 Series
SPECIFICATIONS
(T
CASE
= -55°C to +125°C, V
IN
= +28V ± 5%, Full Load, Unless Otherwise Specified)
ABSOLUTE MAXIMUM RATINGS
Input Voltage (Continuous)
Input Voltage (Transient, 1 second)
Output Current
50 V
DC
80 Volts
15.0 Amps
Storage Temperature
Lead Solder Temperature (10 seconds)
Weight (Maximum) – without Pin Extensions
DVME28
Min
0
-
0
-65° to +150°
C
C
300°
C
83 grams
Parameter
STATIC
INPUT
Voltage
2
Current
1,2,3
OUTPUT
Voltage
2
Current
2,3
DC RESISTANCE
POWER DISSIPATION
NOISE REJECTION
CAPACITANCE
ISOLATION
MTBF (MIL-HDBK-217F)
2
Conditions
Typ
28
-
-
V
OUT
= V
IN
– (I
IN
x R
DC
)
Max
50
80
15.0
Units
Continuous
Transient, 1 sec
Continuous
Continuous
Continuous
Continuous
Continuous
f = 500 kHz
Pin to Case
Any Pin to Case, 500 V
DC
AIF @ T
C
= 55°
C
V
V
A
V
0
-
-
40
60
100
-
-
-
-
-
-
-
0.957
15.0
70
15.75
-
100
-
-
A
mΩ
W
dB
nF
MΩ
MHrs
Notes:
1. Derate linearly to 0 at 135°
C.
2. Verified by qualification testing.
3. Rated current applies at any voltage.
BLOCK DIAGRAM
PINS 1, 2, 3
28V IN
PINS 10, 11, 12
28V OUT
CASE
IN COM
PINS 4, 5, 6
PINS 7, 8, 9
OUT COM
Figure 2
DVME28-6.0
2
DVME28 Series
CONNECTION DIAGRAMS
DVFL2800S DC-DC CONVERTER
1
28V IN
+V OUT
10
+S
7
LOAD
6
SYNC IN
4
INH1
2
IN COM OUT COM
3
CASE
DVME28 EMI FILTER
1
28V IN
2
28V IN
3
28V IN
28V OUT
28V OUT
10
28V OUT
11
+S
12
-S
9
8
DVFL2800S DC-DC CONVERTER
1
28V IN
+V OUT
10
7
+
-
28 Vdc
4
IN COM OUT COM
5
IN COM OUT COM
6
IN COM OUT COM
CASE
7
2
IN COM OUT COM
3
8
4
INH1
-S
9
6
SYNC IN
LOAD
9
8

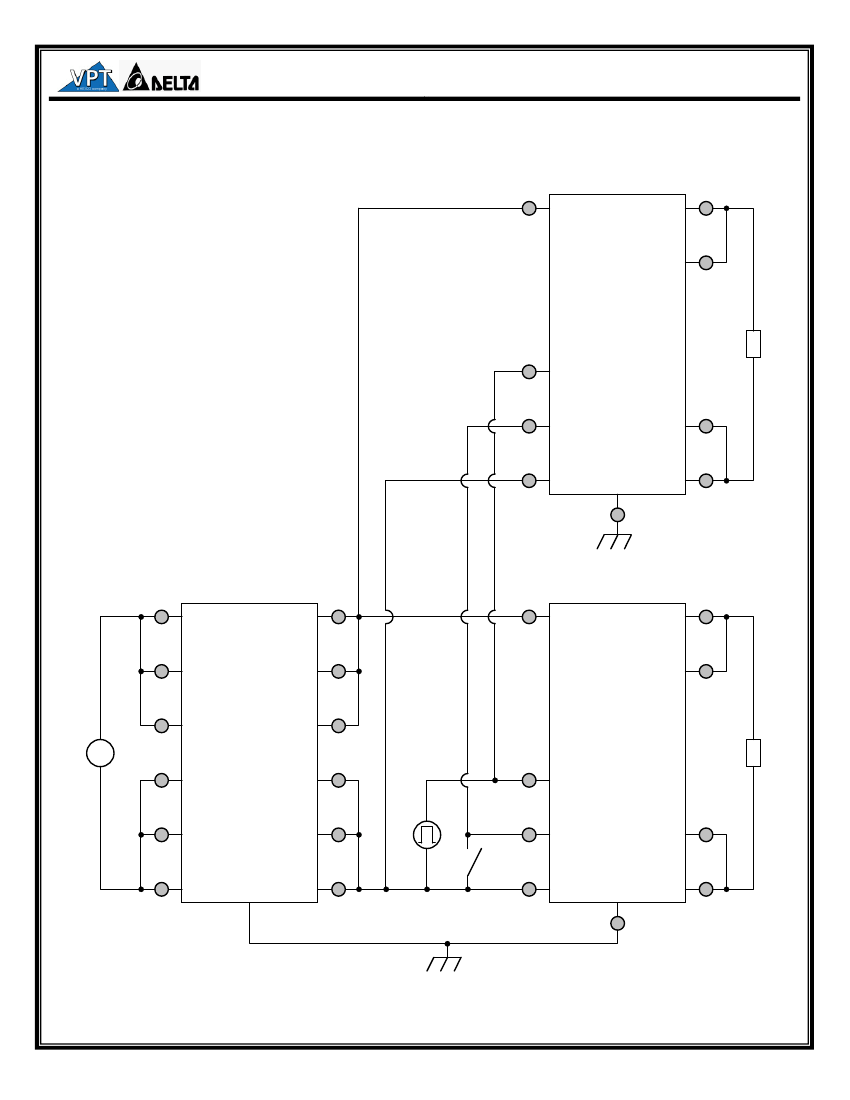

Figure 4
– DVME28 EMI Filter Hookup with Two Converters
DVME28-6.0
4
DVME28 Series
EMI MEASUREMENT METHODS CONNECTION DIAGRAMS
TO 50 OHM INPUT
+V IN
10 uF
+V OUT
CURRENT
TRANSFORMER
TO D.U.T.
10 uF
-V IN
-V OUT

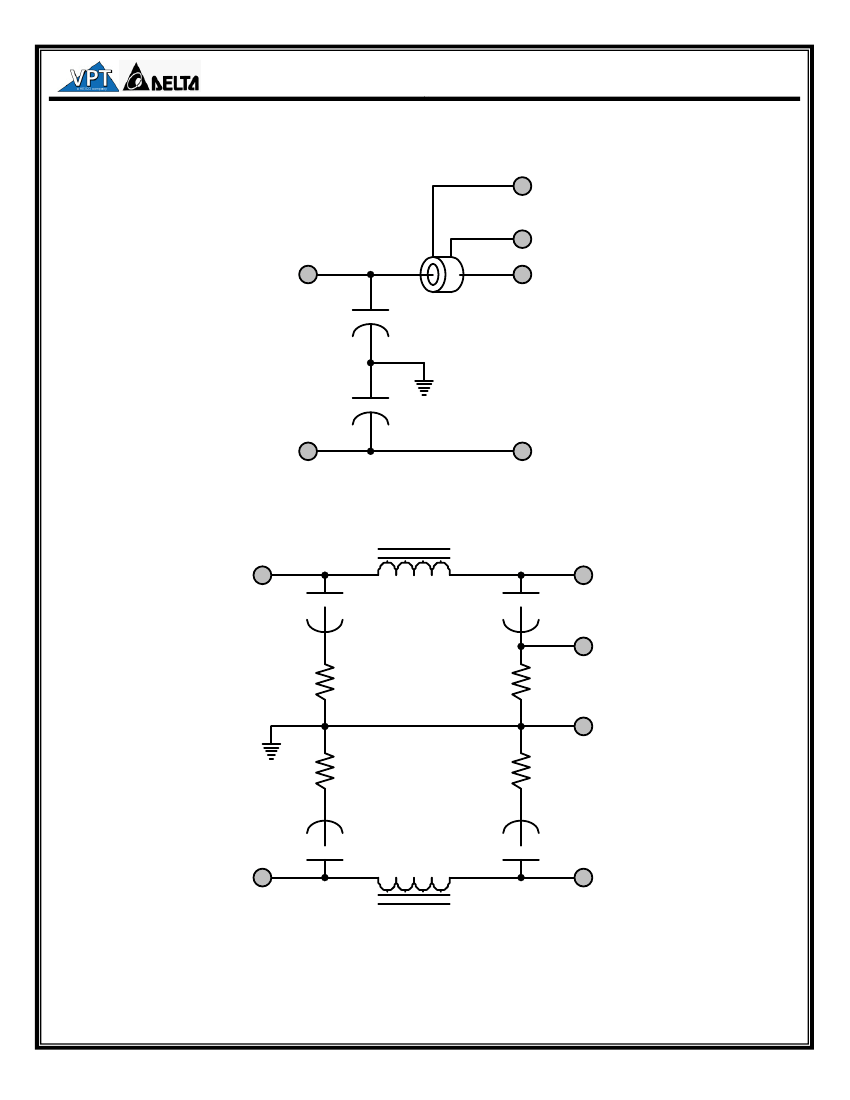

Figure 5
– MIL-STD-461C Measurement Method (Feedthrough Capacitor)
+V IN
50 uH
+V OUT
TO 50 OHM INPUT
50 uH
-V IN
-V OUT
Figure 6
– MIL-STD-461D Measurement Method (LISN)
DVME28-6.0
5
