Datasheet> All Categories > Analog mixed-signal IC> converter> DAC-HZB/883B

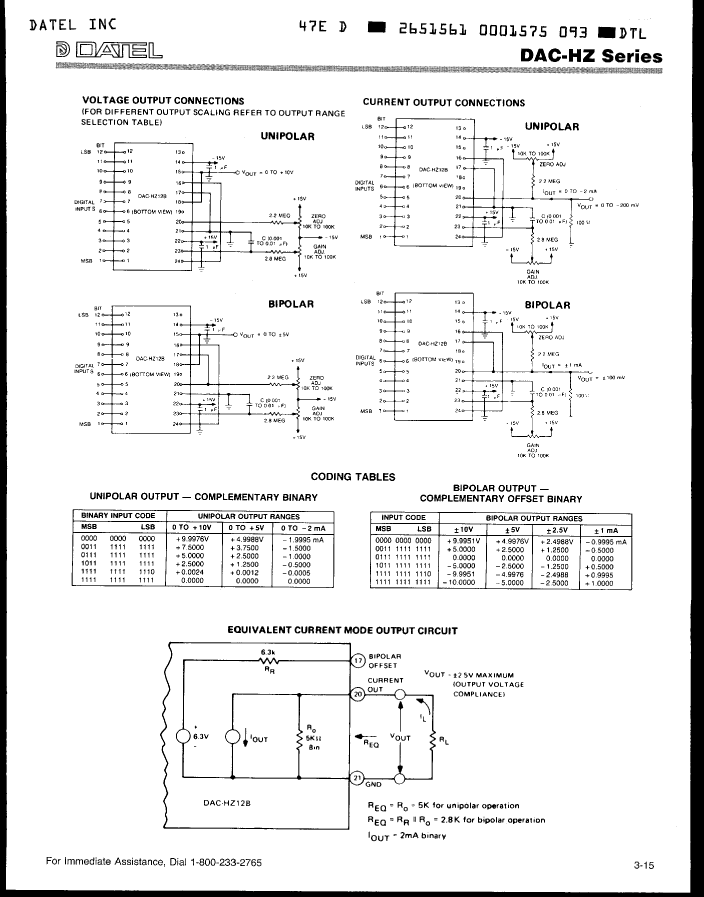

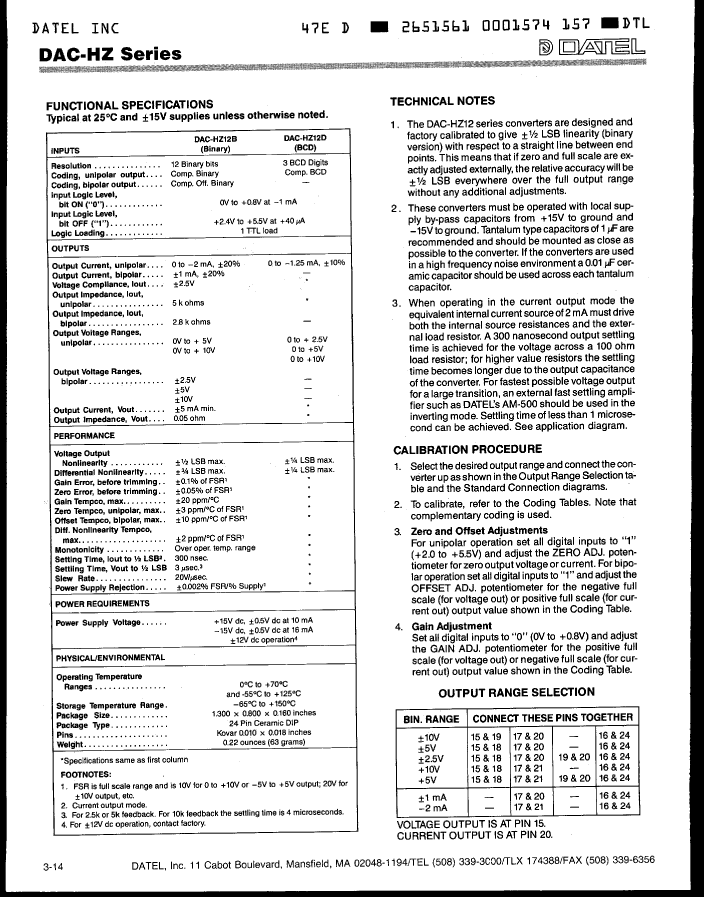

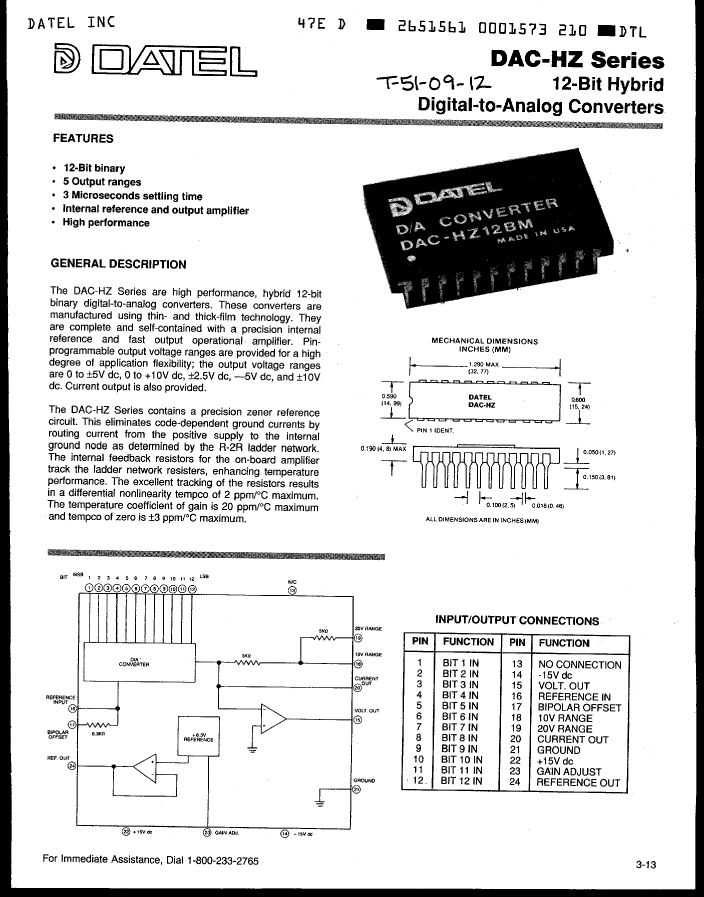

Preview

DAC-HZB/883B: DescriptionConverter,; CategoryAnalog mixed-signal IC converter; File Size313KB，4 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

DAC-HZB/883B Overview

Converter,

DAC-HZB/883B Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Base Number Matches	1

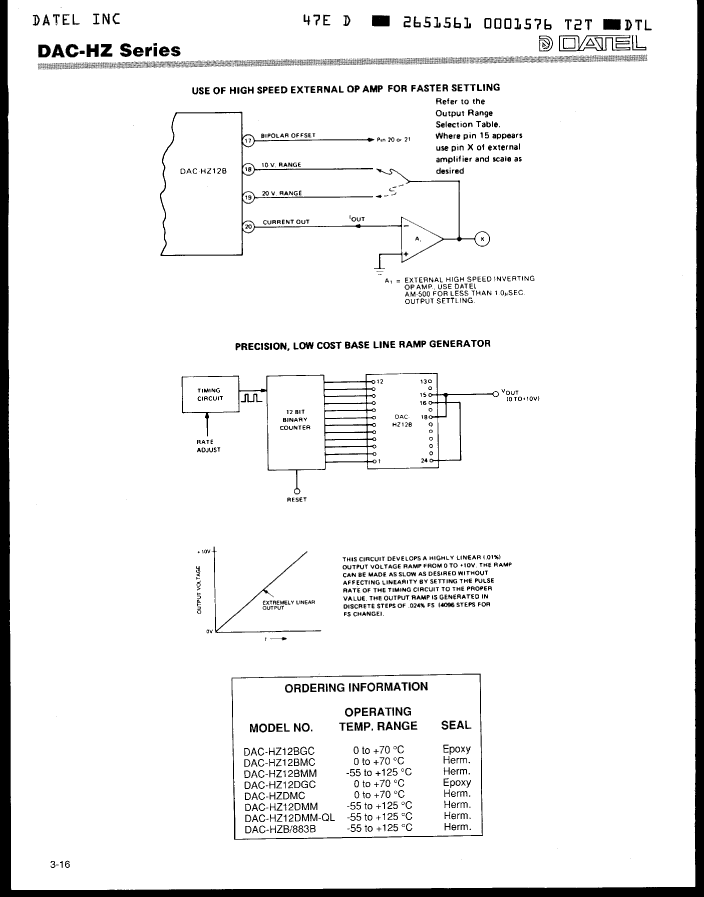

Preview

Download Datasheet

View All

DAC-HZB/883B Related Products

	DAC-HZB/883B	DAC-HZDMC	DAC-HZ12DMM	DAC-HZ12DMM-QL	DAC-HZ12BGC	DAC-HZ12BMM
Description	Converter,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, DDIP-24
package instruction	,	DIP,	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Is it Rohs certified?	-	incompatible	incompatible	incompatible	conform to	incompatible
Maker	-	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.
Parts packaging code	-	DIP	DIP	DIP	DIP	DIP
Contacts	-	24	24	24	24	24
ECCN code	-	3A001.A.5.B	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C
Maximum analog output voltage	-	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	-	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	-	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	-	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	-	R-GDIP-P24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
Nominal negative supply voltage	-	-15 V	-15 V	-15 V	-15 V	-
Number of digits	-	12	12	12	12	12
Number of functions	-	1	1	1	1	1
Number of terminals	-	24	24	24	24	24
Maximum operating temperature	-	70 °C	125 °C	125 °C	70 °C	125 °C
Package body material	-	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	-	DIP	DIP	DIP	DIP	DIP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	4.8 mm	5.969 mm	5.969 mm	5.969 mm	5.969 mm
Maximum stabilization time	-	3 µs	3 µs	3 µs	3 µs	3 µs
Nominal settling time (tstl)	-	3 µs	3 µs	3 µs	3 µs	3 µs
Nominal supply voltage	-	15 V	15 V	15 V	15 V	15 V
surface mount	-	NO	NO	NO	NO	NO
Temperature level	-	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal form	-	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm	14.09 mm
Is it lead-free?	-	-	Contains lead	Contains lead	Lead free	Contains lead
JESD-609 code	-	-	e0	e0	e4	e0
Maximum linear error (EL)	-	-	0.0061%	0.0061%	0.0122%	0.0122%
Encapsulate equivalent code	-	-	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
power supply	-	-	+-15 V	+-15 V	+-12/+-15 V	+-12/+-15 V
technology	-	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Gold (Au)	Tin/Lead (Sn/Pb)
