DAC-UP8BC datasheet, PDF - EEWORLD Datasheet

DAC-UP8BC: DescriptionD/A Converter, 8-Bit, 1 Func, Bipolar, PDIP22; CategoryAnalog mixed-signal IC converter; File Size166KB，4 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

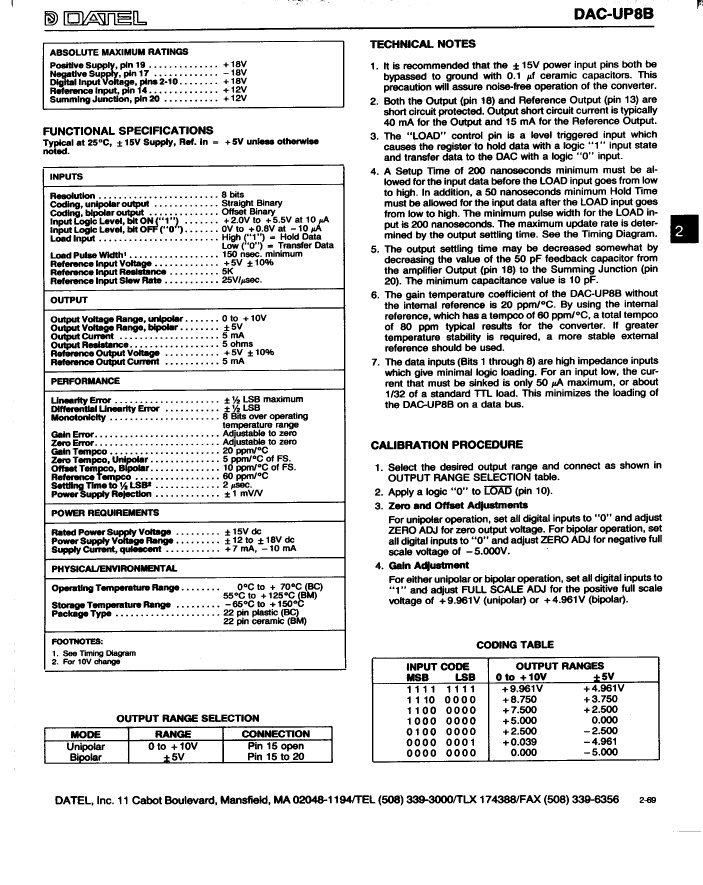

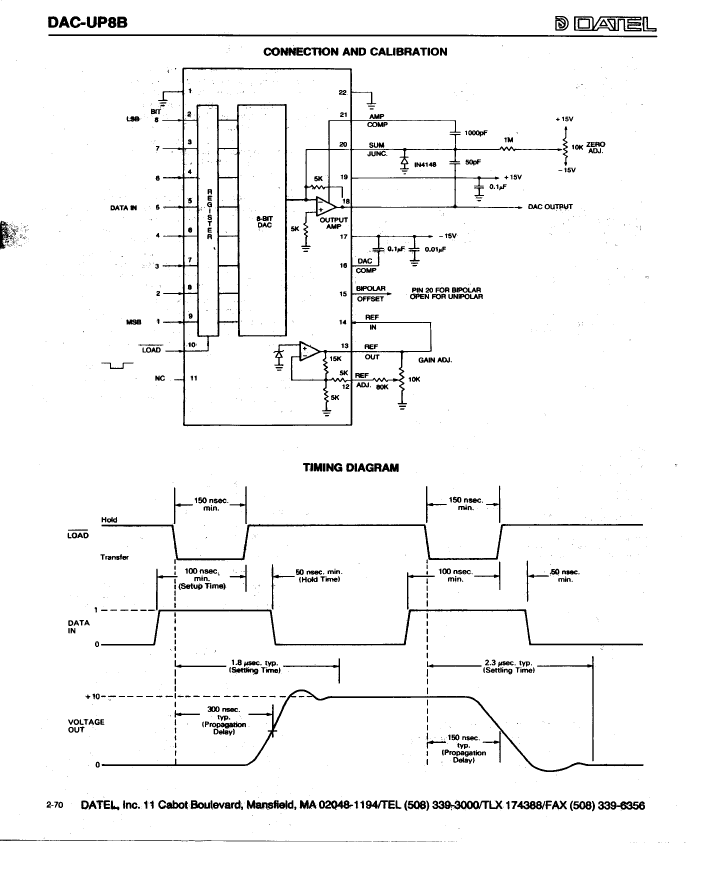

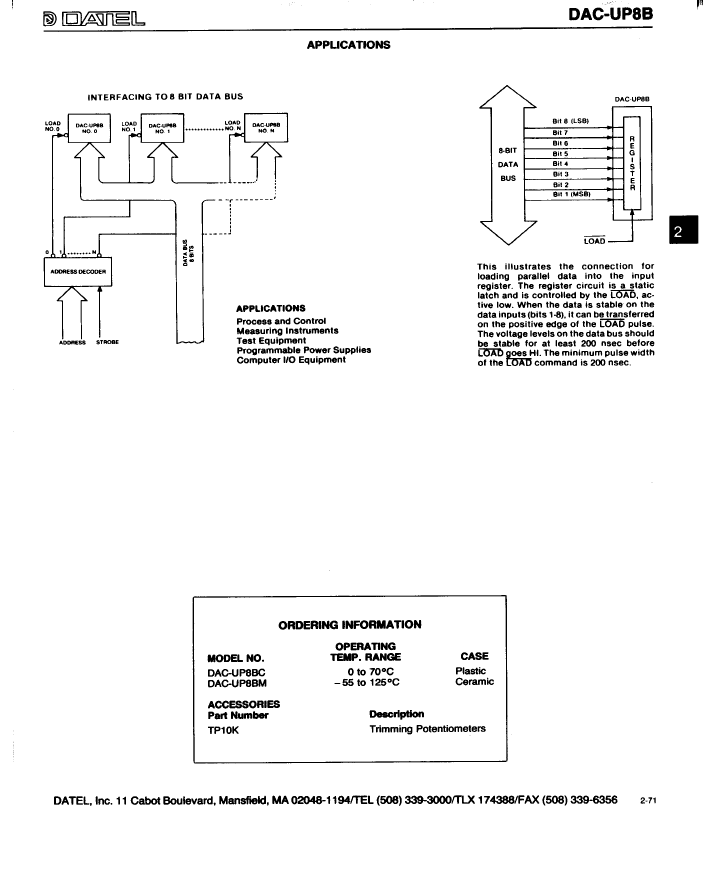

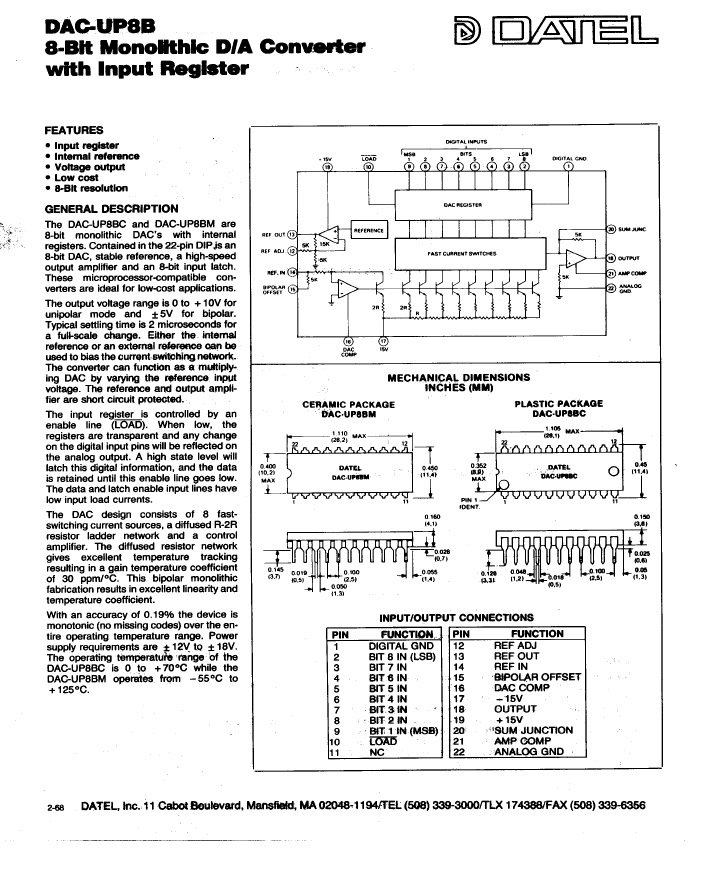

DAC-UP8BC Overview

D/A Converter, 8-Bit, 1 Func, Bipolar, PDIP22

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP22,.4
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
JESD-30 code	R-PDIP-T22
JESD-609 code	e0
Maximum linear error (EL)	0.19%
Nominal negative supply voltage	-15 V
Number of digits	8
Number of functions	1
Number of terminals	22
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.4
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	DAC-UP8BC	DAC-UP8BM
Description	D/A Converter, 8-Bit, 1 Func, Bipolar, PDIP22	D/A Converter, 8-Bit, 1 Func, Bipolar, CDIP22,
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP22,.4	DIP, DIP22,.4
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
JESD-30 code	R-PDIP-T22	R-XDIP-T22
JESD-609 code	e0	e0
Maximum linear error (EL)	0.19%	0.19%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	8	8
Number of functions	1	1
Number of terminals	22	22
Maximum operating temperature	70 °C	125 °C
Package body material	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP22,.4	DIP22,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
