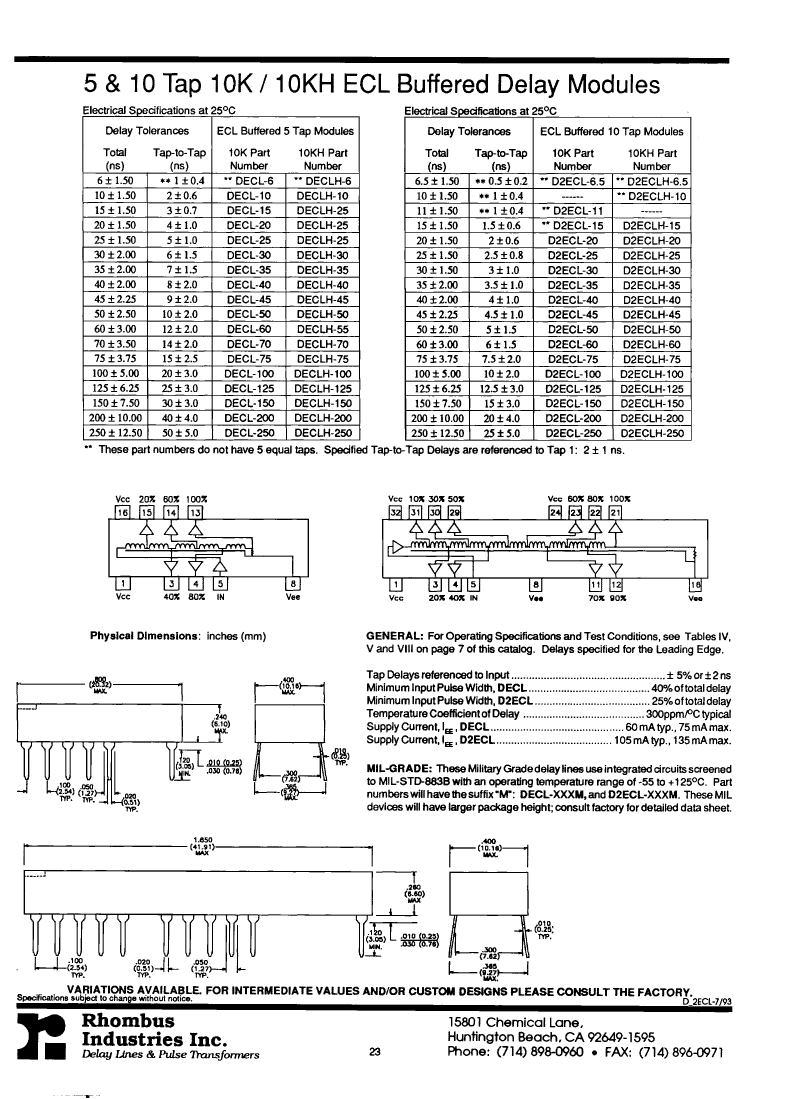

DECL-25M Overview

Active Delay Line, 1-Func, 5-Tap, True Output, ECL, PDIP9,

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	INPUT RISE TIME 1NS
series	10K
JESD-30 code	R-PDIP-T9
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	9
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	75 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	6.86 mm
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	25 ns
width	7.62 mm
Base Number Matches	1
