D45VH1 datasheet, PDF - EEWORLD Datasheet

D45VH1: DescriptionTRANSISTOR,BJT,PNP,30V V(BR)CEO,15A I(C),TO-220AB; CategoryDiscrete semiconductor The transistor; File Size125KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

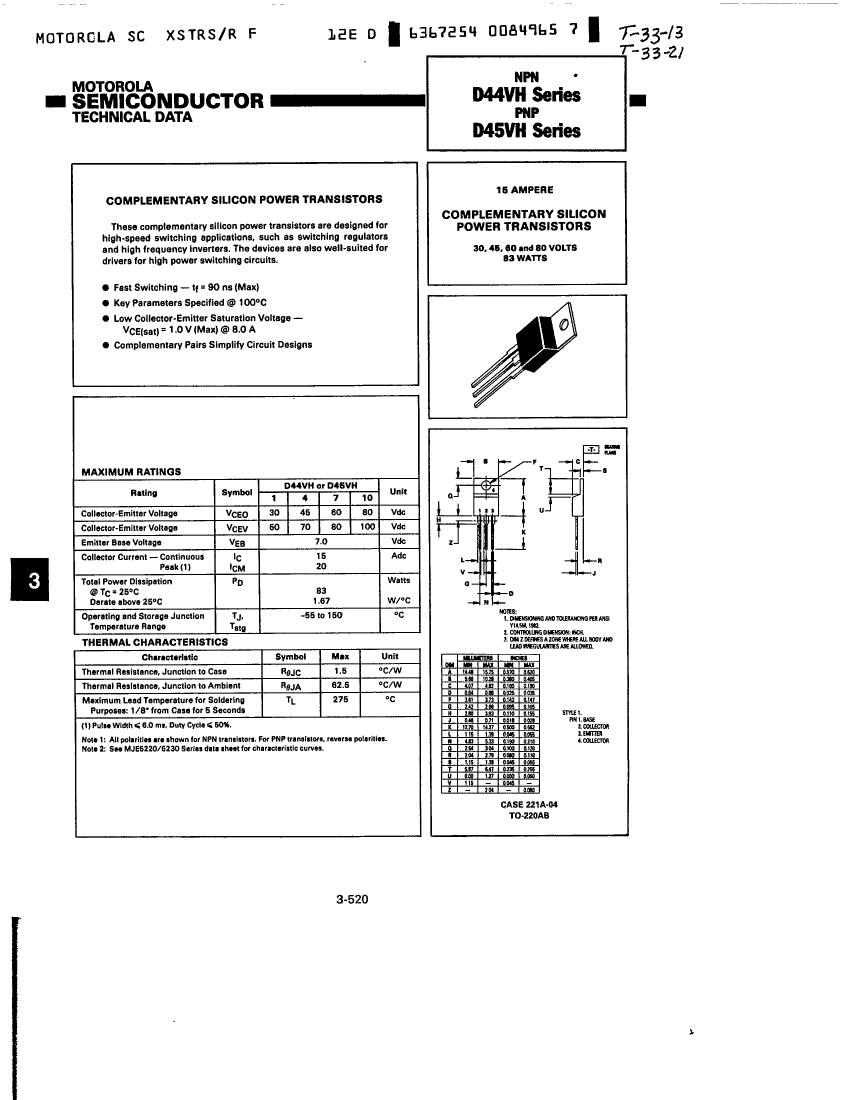

D45VH1 Overview

TRANSISTOR,BJT,PNP,30V V(BR)CEO,15A I(C),TO-220AB

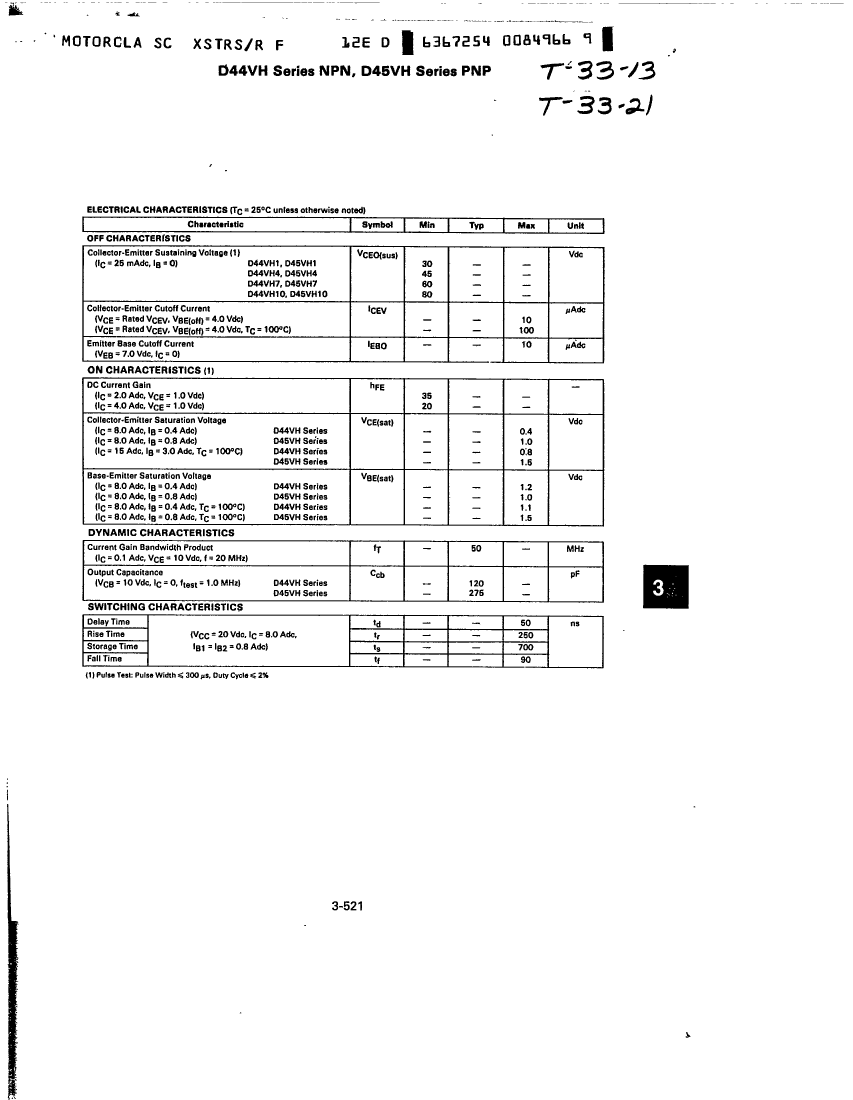

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	15 A
Configuration	Single
Minimum DC current gain (hFE)	35
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	83 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	50 MHz
Base Number Matches	1

	D45VH1	D45VH7	D44VH1	D44VH7	D45VH4	D44VH4
Description	TRANSISTOR,BJT,PNP,30V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,PNP,60V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,NPN,30V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,NPN,60V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,PNP,45V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,NPN,45V V(BR)CEO,15A I(C),TO-220AB
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	15 A	15 A	15 A	15 A	15 A	15 A
Configuration	Single	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	35	35	20	20	35	20
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	NPN	NPN	PNP	NPN
Maximum power dissipation(Abs)	83 W	83 W	83 W	83 W	83 W	83 W
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
Base Number Matches	1	-	1	1	1	-
